86 x 298 x 121 mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump with 850 ml plug-in tank.
• Designed for standard liquid soaps or hand lotions.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries. Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and batteries.

• Weight (in kg): 1,8

298 x 1348 x 120 mm
ca. 250 paper towels / sensor with 950 ml soap bottle / 11 l

• Combination consisting of a sensor liquid soap dispenser, paper towel dispenser and
  a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket.
  Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1350 x 110 mm
• Mounting: With eight screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 15,8

450 x 450 x 130 mm
sensor with 950 ml soap bottle / ca. 500 paper towels

• Mirror cupboard with integrated sensor liquid soap dispenser and paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; visible surfaces satin finished and brushed.
• Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Lighting set available as an option.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 11,9

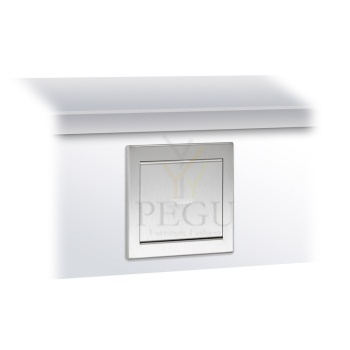

87 x 289 (251) x 130 mm

• Liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• For mounting in cabinet on site.
• One-hand operated and non-drip soap pump.
• Designed for standard 500 ml or 950 ml disposable bottles of liquid soap or hand lotion. Refillable from the top.
• Also refillable with large container using the plug-in tank as an option.
• Wear parts can be replaced as modules.
• Mounting: With two screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, self-adhesive information label „Soap“ and first fill with soap.

• Weight (in kg): 2,7
