148 x 448 x 120 mm
950 ml bottle

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
• With EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts and front panel can be replaced as modules.
• Installation dimensions: 150 x 450 x 110 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, batteries and first fill with soap.

• Weight (in kg): 4,4

148 x 448 x 120 mm
950 ml tank

• Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
• With EWAR® eModule touch-free operated disinfectant pump with 950 ml tank.
• Tank with large, lockable refill opning.
• Designed for standard disinfectants.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts and front panel can be replaced as modules.
• Installation dimensions: 150 x 450 x 110 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and batteries.

• Weight (in kg): 3,4

298 x 360 x 120 mm
ca. 500 paper towels

• Paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• For mounting behind fixed mirror on site.
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
• With deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm. Accessible for refilling through spring-clip flap from below.
• Mounting: With four screws.
  Depth of substructure installation: min. 120 mm.
  Height above vanity unit: min. 160 mm.
• Delivery includes fixing material, self-adhesive information label „Paper“ and one pack of paper towels.

• Weight (in kg): 4,4

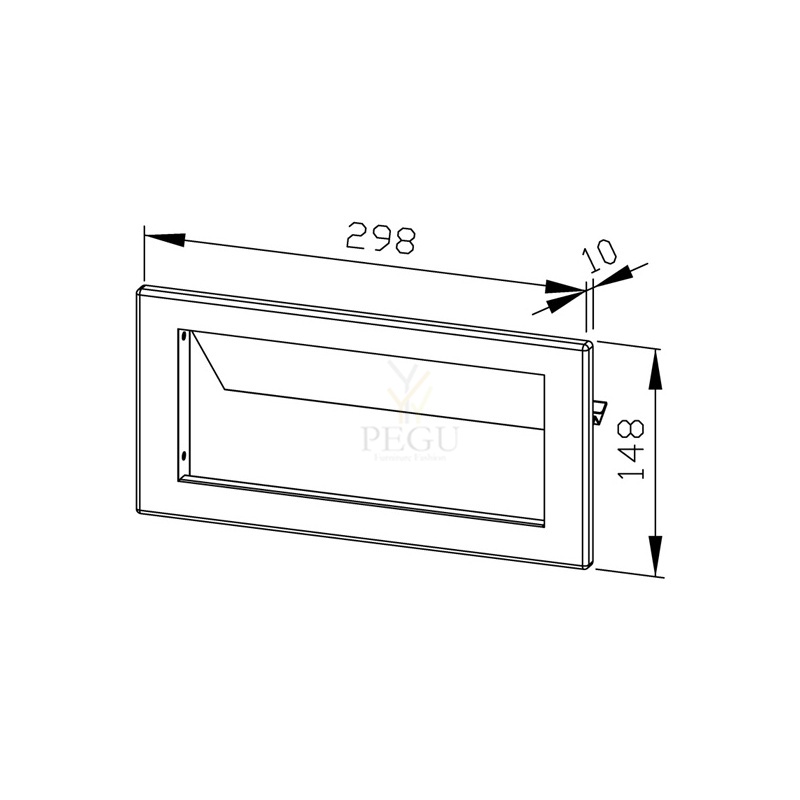

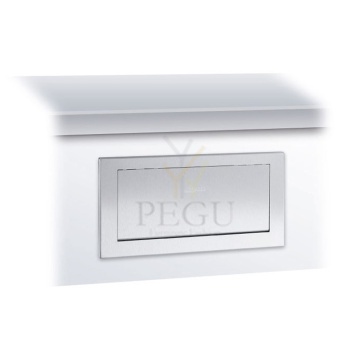

Tööpinda läbiv raam, R/V teras

AISI 304, harjatud

298 x 148 x 20 mm

• Waste disposal frame in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel construction; visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Mounting: Insert and glue into cutout.
• Installation dimensions: 258 x 110 mm

• Weight (in kg): 0,5

87 x 293(255) x 129(121) mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• For mounting in cabinet on site.
• With EWAR® eModule touch-free operated and non-drip soap pump.
• Designed for standard 500 ml or 950 ml disposable bottles of liquid soap or hand lotion. Refillable from the top.
• Also refillable with large container using the plug-in tank as an option.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, self-adhesive information label „Soap“ and first fill with soap.

• Weight (in kg): 1,6
