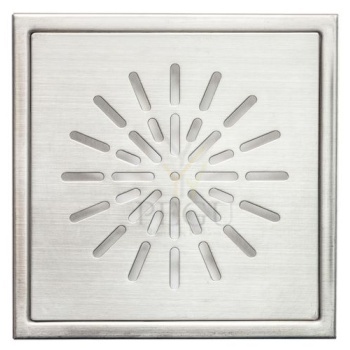

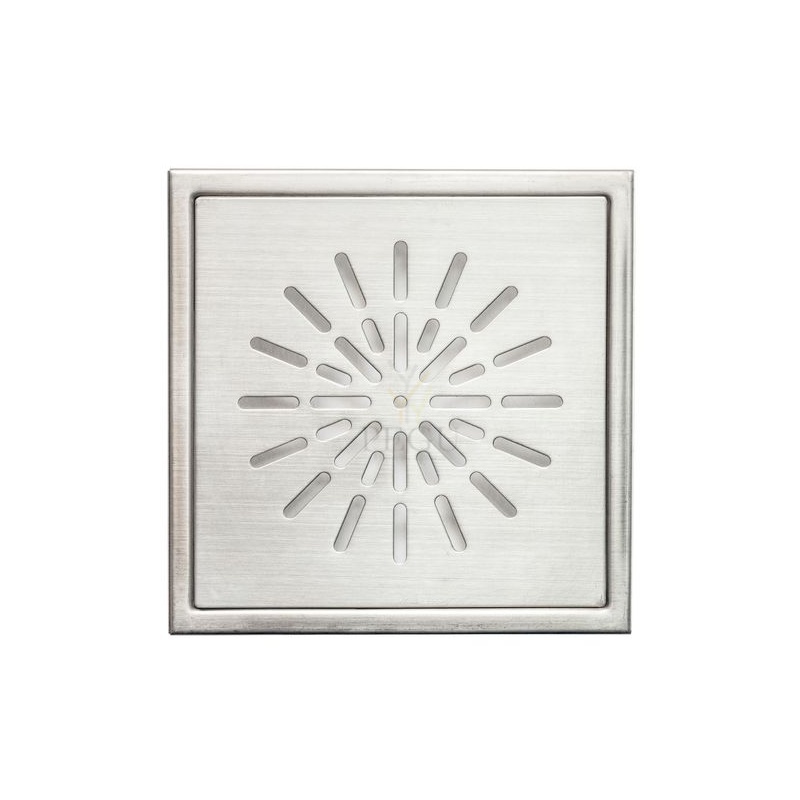

LVI disain roostevaba kaas 197x197x4 KEHRÄ

Tootekood: LVI3316784
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
55,92 €
Kuumakse alates: 4,72 €
Kogus: - +
   - või -

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

VIESER ONE 52612 trap 50 3X32/40 külg väljajooks

Vieser One floor drain DN50 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52612

Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52612 ,   Tarneaeg: 7-14 päeva
36,60 €

Vieser One 52610 Horisontaaltrapp 75

Vieser One floor drain DN75 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Vieser One floor drain is compatible with Vieser design floor drains:



Tootekood: AKV52610 ,   Tarneaeg: 3-7 päeva
36,60 €



Vieser One 52631 Vertikaaltrapp 75

Vieser One vertical floor drain DN 75

HVAC No. 3315979


Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.


The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52631
HVAC No.
3315979
EAN
6418685526311
Package (box/pallet)
15/120
Package dimensions
20 x 25 x 20 cm
Package weight
0,65 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
2,3l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.










Tootekood: AKV52631 ,   Tarneaeg: 3-7 päeva
42,70 €

LVI roostevaba kaas 32mm avadega 197x197x4 RST läikiv

Põrandatrappi katte lisainfo:
Tootja: LVI-Pörssi
Tootenumber: 3316782
Raami välismõõtmed: 197 x 197 mm
Kõrgus: 4 mm
Materjal: roostevaba teras (AISI304)
Värv: läikiv teras
LVI-3316782



Tootekood: LVI3316782 ,   Tarneaeg: 7-14 päeva
62,00 €
