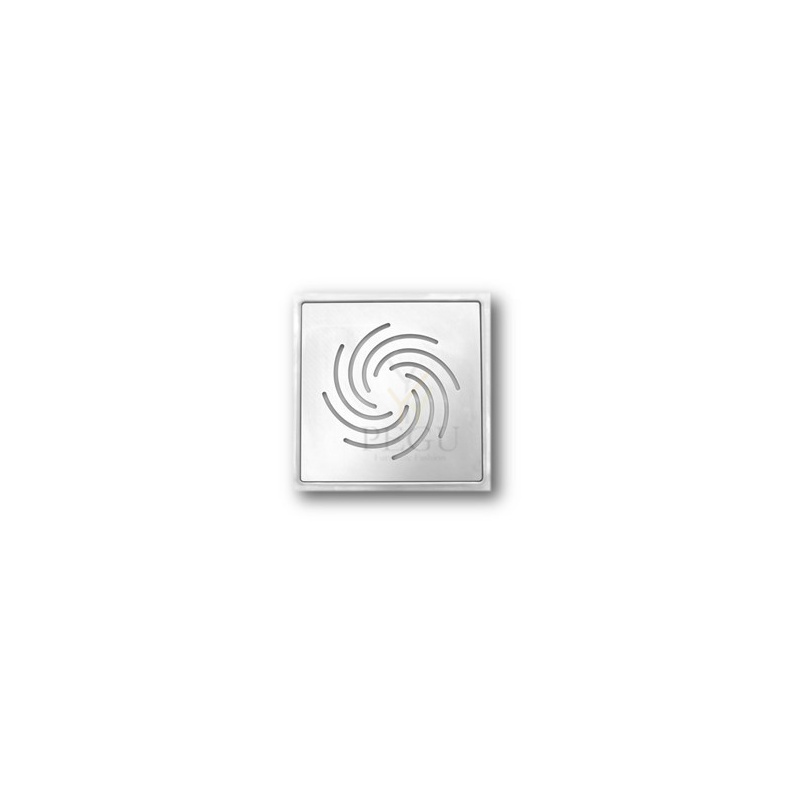

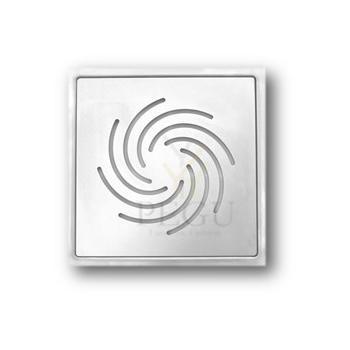

LVI disain roostevaba kaas 197x197x4 SPIRAALI

R/V teras veetrapp, D75 mm vertikaalne, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm

	PV 01 stainless steel floor trap

PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable

Basic technical information
Minimum inner diameter:	70 mm
Diameter of connecting sewerage pipe:	75 mm
Water flow:	min. 50 lts / min
Loading class:	K3
Weight:	2,2 kg

Complete delivery
Trap body Grid with braz cover Hook to pull up the grid

Requirements for setting up the construction
Completed sewerage drains terminated by DN 75 coupling Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P , Tarneaeg: 3-4 nädalad , Viimistlus:

429,93 €

Vieser One 52631 Vertikaaltrapp 75

Vieser One vertical floor drain DN 75

HVAC No. 3315979

Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52631

HVAC No.

3315979

EAN

6418685526311

Package (box/pallet)

15/120

Package dimensions

20 x 25 x 20 cm

Package weight

0,65 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

2,3l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52631 , Tarneaeg: 3-7 päeva

43,40 €

Horisontaalne trapp VIESER 50 mm

Vieser low model floor drain DN 50

HVAC No. 3315971

Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.

52614

HVAC No.

3315971

EAN

6418685526144

Package (box/pallet)

24/192

Package dimensions

20 x 11 x 20 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,2l/s

General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52614 , Tarneaeg: 3-7 päeva

18,60 €

Vieser One 52700 põrandatrapi spetsiaalne vesilukk

Vieser One special water trap for drain

HVAC No. 3315949

Vieser One'i spetsiaalne veepüüdur hoiab ära kanalisatsiooni kuivamise ja kõrvaldab ebameeldiva lõhna. Soovitatav ruumides, kus põranda äravoolu kasutatakse harva või kasutatakse ainult ajutiselt, näiteks pesuruumid või suvekodud. Ühildub Vieser One põrandakanalisatsiooniga.

Paigaldatav mistahes Vieser One’i veetõkkega põrandakanalisatsiooni ka peale esmast paigaldamist. Vieser One'i veepüüdurit saab ära tunda selle musta tõstekäepideme järgi. Soovitatav ruumidesse, kus põranda äravoolu kasutatakse harva või kasutatakse ainult ajutiselt, näiteks tehnilistes ruumides, pesuruumides või suvekodudes.

Spetsiaalne äravoolulõks takistab tõhusalt põranda äravoolu kuivamist, kõrvaldades seeläbi ebameeldiva lõhna.

Can be installed into any Vieser One floor drain with a water trap also after initial installation. A Vieser One water trap can be identified by its black lifting handle. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as technical facilities, laundry rooms or summer homes.

The special drain trap effectively prevents the floor drain from drying up, thus eliminating unpleasant odours.

Technical specifications

Vieser No.

52700

HVAC No.

3315949

EAN

6418685527004

Package (box/pallet)

6/240

Package dimensions

13,5 x 11 x 13,5 cm

Package weight

0,1 kg

Material

Polypropylene PP

Usage

A Vieser One special water trap prevents the sewer from drying out and eliminates unpleasant odours. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as laundry rooms or summer homes. Compatible with Vieser One floor drains. Can be installed into any Vieser One floor drain with a water trap also after initial installation. A Vieser One water trap can be identified by its blacklifting handle. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as technical facilities, laundry rooms or summer homes.

Tootekood: AKV52700 , Tarneaeg: 3-7 päeva

62,00 €
