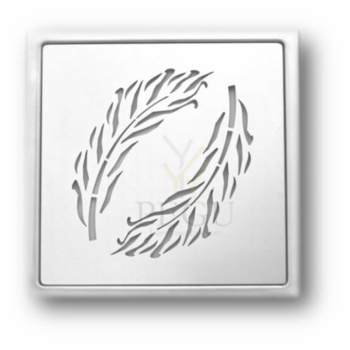

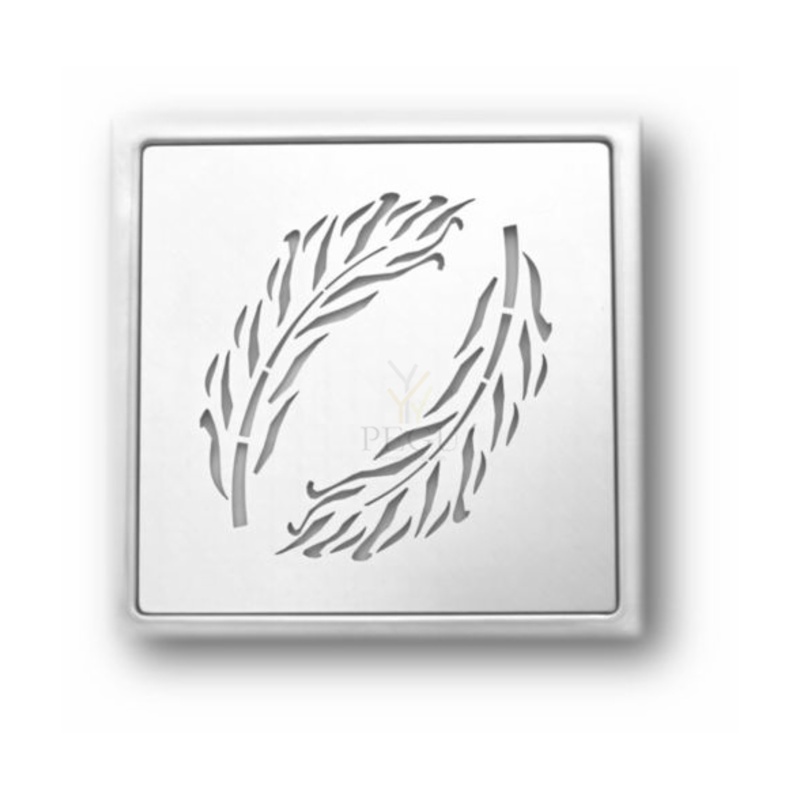

LVI disain roostevaba kaas 197x197x4 SULAT

R/V teras veetrapp, D75 mm vertikaalne, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm

	PV 01 stainless steel floor trap

PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable

Basic technical information
Minimum inner diameter:	70 mm
Diameter of connecting sewerage pipe:	75 mm
Water flow:	min. 50 lts / min
Loading class:	K3
Weight:	2,2 kg

Complete delivery
Trap body Grid with braz cover Hook to pull up the grid

Requirements for setting up the construction
Completed sewerage drains terminated by DN 75 coupling Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P , Tarneaeg: 3-4 nädalad , Viimistlus:

429,93 €

Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek

Vieser One horizontal drain DN50 1x32 extra low

HVAC No. 3317307

The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Technical specifications

Vieser No.

6004512

HVAC No.

3317307

EAN

6430066742325

Package (box/pallet)

10/120

Package dimensions

35 x 25 x 70 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.

Flow

1,2 l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Tootekood: AKV6004512 , Tarneaeg: 3-7 päeva

46,50 €

Vieser One 6004309 Nurgatrapp 75 45°

Vieser One floor drain 45° DN75 (without support legs)

HVAC No. 3317304

Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

6004309

HVAC No.

3317304

EAN

6430066742196

Package (box/pallet)

18/144

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9kg

Material

Polypropylene PP

Usage

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

Flow

1,4 l/s

General information

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV6004309 , Tarneaeg: 3-7 päeva

40,30 €

Vieser 51206 Betoonivalu tõsterõngas ümmargusele kaanele

Vieser Distance ring

HVAC No. 3318314

EAN 6418685512062

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

(Above the waterproofing only)

Technical specifications

Vieser No.

51206

HVAC No.

3318314

EAN

6418685512062

Package (box/pallet)

20/480

Package dimensions

15 x 5 x 15 cm

Package weight

0,1 kg

Material

Polypropylene PP

Usage

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

General information

(Above the waterproofing only )

Tootekood: AKV51206 , Tarneaeg: 3-7 päeva

12,40 €

Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST

Roostevaba teras

Vieser Grid with plastic frame 197x197

HVAC No. 3317313

NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
Strong and pleasant underfoot – remains firmly in place
Manufactured in Finland
Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.

6005479

HVAC No.

3317313

EAN

6430066742851

Package (box/pallet)

20/480

Package weight

0,6

Material

Stainless steel (AISI 304)

Durability

300 kg

Tootekood: AKV6005479 , Tarneaeg: 3-7 päeva

65,10 €
