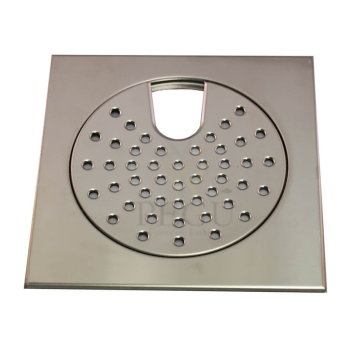

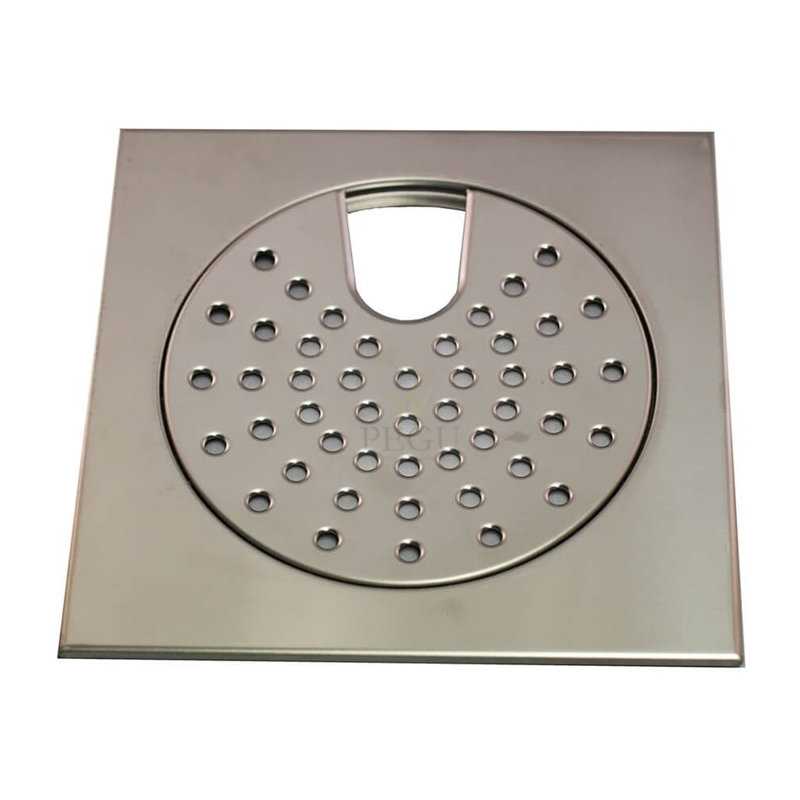

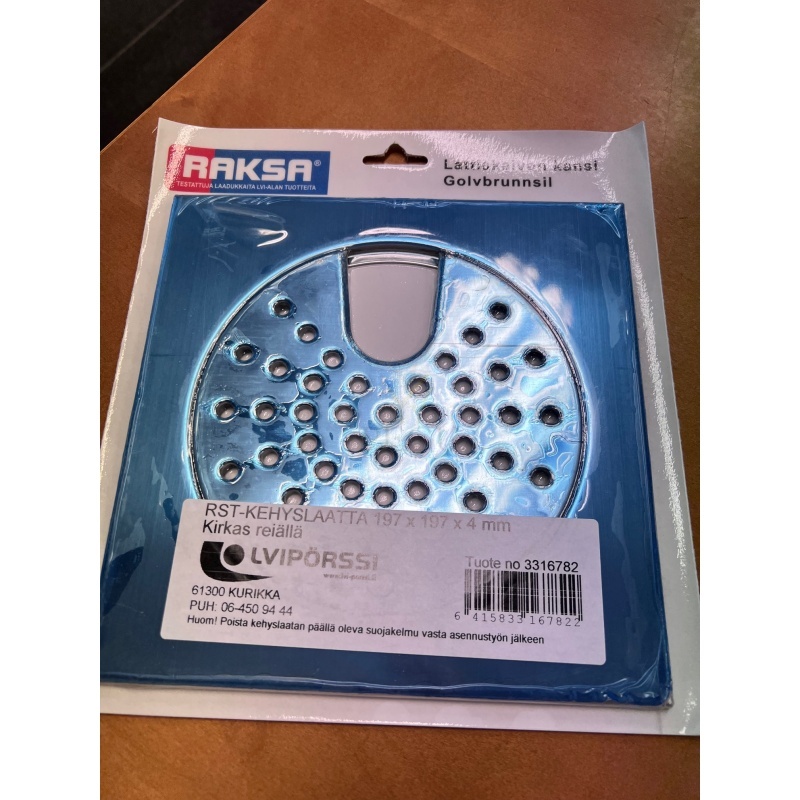

LVI roostevaba kaas 32mm avadega 197x197x4 RST läikiv

Tootekood: LVI3316782
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
62,00 €
Kuumakse alates: 5,31 €
Kogus: - +
   - või -

LVI roostevaba kaas 32mm avadega 197x197x4 RST läikiv

Põrandatrappi katte lisainfo:
Tootja: LVI-Pörssi
Tootenumber: 3316782
Raami välismõõtmed: 197 x 197 mm
Kõrgus: 4 mm
Materjal: roostevaba teras (AISI304)
Värv: läikiv teras
LVI-3316782



Sarnased tooted

Vieser One 52600 Horisontaaltrapp 50  3x32/40 tugijalgadega



Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930
EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52600
HVAC No.
3315930
EAN
6418685526007
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52600 ,   Tarneaeg: 3-7 päeva
47,78 €

Vieser 51130 Hüdroisolatsioonikrae

Vieser membrane flange

HVAC No. 3319661
EAN 6418685511904

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.

Compatible with all Vieser floor drains and extension rings.

Must be attached with the clamping ring supplied with the floor drain or extension ring.



Technical specifications

Vieser No.
51190
HVAC No.
3319661
EAN
6418685511904
Package (box/pallet)
12/288
Package dimensions
40 x 3 x 30 cm
Package weight
0,2 kg
Material
TPE
Usage
Must be attached with the clamping ring supplied with the floor drain, untrapped drain or extension ring.
General information

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.
Compatible with all Vieser floor drains and extension rings.

Tootekood: AKV51130 ,   Tarneaeg: 3-7 päeva
13,22 €

Trapikaas reguleeritava terasraamiga AKV51292 Vieser Classic+ 197x197 mm

Roostevaba teras

 Vieser Classic+ with adjustable steel frame 197×197
HVAC No. 3315955


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
  • (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Classic+ square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51292
HVAC No.
3315955
EAN
6418685512925
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Tootekood: AKV51292 ,   Tarneaeg: 3-7 päeva
73,20 €

Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST

Roostevaba teras

Vieser Modern - Stainless steel grating with adjustable stainless steel frame – 197×197

HVAC No. 3315954


The package contains  square Vieser stainless steel grating and an adjustable steel frame.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

  • Modern grating is our customer survey favourite
  • Modern stainless steel grating and adjustable steel frame 197x197 mm
  • Comes with an easy-to-install adjustable steel frame

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51291
HVAC No.
3315954
EAN
6418685512918
Package (box/pallet)
20/480
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,6 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Tootekood: AKV51291 ,   Tarneaeg: 3-7 päeva
79,30 €

Vieser 6001186 DOT Kenoby, õlitatud D600MM ümmargune

Vieser Dot Kebony Cover, Oiled

HVAC No. 3315993
EAN 6430066741625


One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Kebony, Oiled. Kebony is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Non-toxic and ecologically produced Kebony is hard, durable and beautiful wood. Kebony® products are based on a patented process that involves impregnating the wood with furfuryl alcohol using high pressure and heat, thereby altering the wood’s molecular structure. The 100% bio-based liquid treatment, primarily based on furfuryl alcohol, is a byproduct of sugar cane production. This makes the wood non-toxic and thus completely safe. Kebony has been granted the Nordic Swan Ecolabel. Kebony is sustainably sourced: 100% radiata pine, sourced from forests that have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.




Tootekood: AKV6001186 ,   Tarneaeg: 3-7 päeva
1134,60 €
