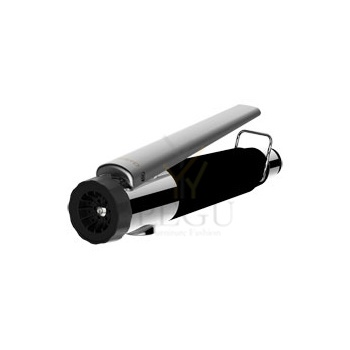

Maestro, Chef pihusti-käsidušš 1/2"

Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
163,64 €
Kuumakse alates: 13,91 €
Kogus: - +
   - või -

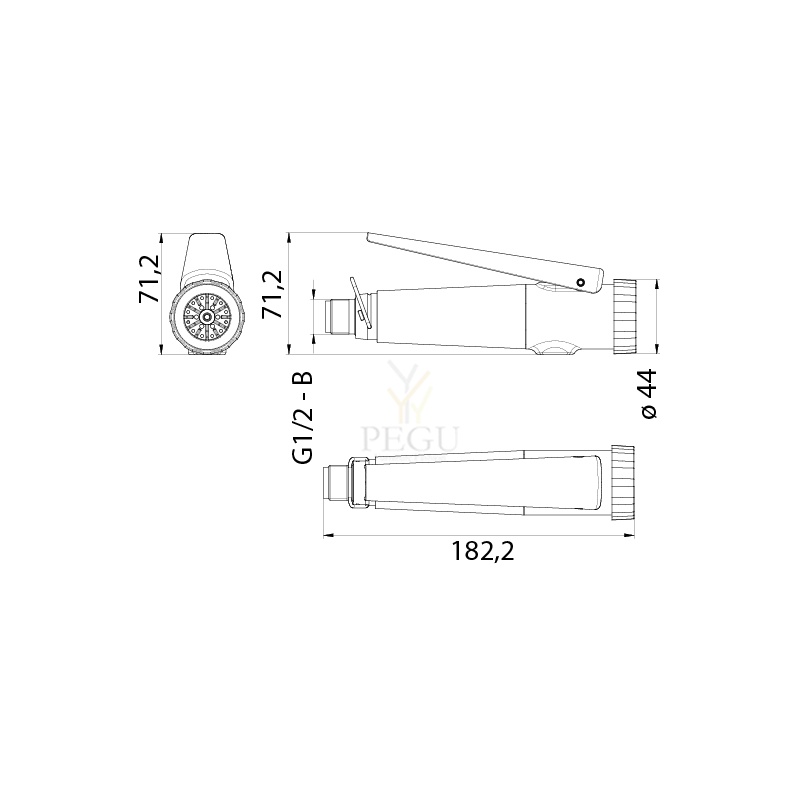

Ref: 70838 - Ergonomic rinsing head – adjustable 2 jets – G 1/2 ’

> THE PRODUCT BENEFITS > Handle:

Shot blasted: non-slippery with wet gloves
Ergonomic shape and length of the handle: for better grip
Wetting jet: to rinse the dishes
Concentrated spray: to stain dishes
Black and chrome bi-color design: limits the risk of visible stains
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. End piece to absorb shocks.
Blocking hook to avoid MSDs (musculoskeletal disorders)

> TECHNICAL SPECIFICATIONS
> Recommended working pressure:

1 to 5 bars

> Flow rate:

12L / min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Chromed brass body
Chromed zamak handle
Injected metal hook
Handle and jet outlet in technical polymer resistant to impact, temperature and compatible with drinking water

> Thermal resistance:

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with:

NF check valve

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Sarnased tooted

Vajutava nupuga segisti

Presto

Antiblokeerimise süsteemiga

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Tootekood: P68132 ,   Tarneaeg: 7 päeva ,   Viimistlus:
422,82 €

1/2" väliskeere

Tootekood: P29300 ,   Tarneaeg: 7-14 päeva ,   Viimistlus:
204,30 €
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
429,93 €
Tootekood: P91016 ,   Tarneaeg: 7-14 päeva ,   Viimistlus:
26,43 €

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P88814 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
1260,33 €
