• Drying cycle of 30 sec.
• Comes in white as standard.
• Also available in all RAL-colours and coated with different prints.
• The machine is almost maintenance-free and with induction motor.
• Sturdy and reliable hand dryer with low power consumption.
• 3-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 270 / EAN no. 5-709818-002705 |
| Technical data: |
Touch-free hand dryer with housing in 2 mm white-painted, die-cast aluminium. Infra-red sensor and electronic timer, drying cycle approx. 30 sec. IP21, 230 V, 50/60 Hz, 1800 W, Class I (earthed). 64 dBA.
|
| Dimensions | H: 220 mm, W: 248 mm, D: 170 mm |
| Net Weight: | 5.5 kg |
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
General description

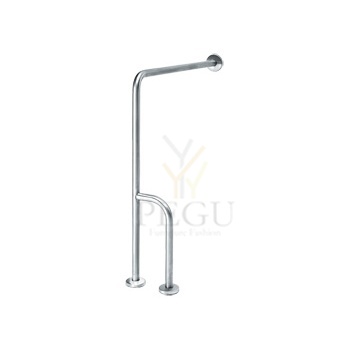

Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
Well suited for keeping bathrooms and public enclosures barrier-free.
Highest durability and great resistance to rusting.
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
Components y materials
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
General description
White epoxy-coated grab bars curved in 90o, to be installed on the wall, with Polypropylene snap flanges and made of Ø 32 mm steel tube.
These grab bar make the daily life-management of not only the disabled and elderly people easier but also it is a great support for everybody who needs help with moving.
Especially designed to achieve barrier-free accessibility in bathrooms and public spaces.
With three snap flanges, made of white Polypropylene that provide a clean finished look hiding the mounting screws.
Easy to clean.
Optionally, they have a kit to avoid electrical conductivity (code KA0010).
Fixing screws for brick wall included.
Components and materials
BAD090C & BAI090C: right hand grab bar made of steel, white finish.
BAD090CS & BAI090CS: left hand grab bar made of steel, white finish.
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter
along the bends.
CONCEALED MOUNTING FLANGE: three units made of steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall
mounting.
SNAP FLANGE COVER: three units made of Polypropylene, 1.5 mm thick and Ø 85 mm. Each cover snaps over mounting flange
General description
Wall-mounted steel white grab bar with three support points, made of diameter 32 mm tube, designed for ensuring the safety in the wash basin area, preventing falls throughout this place.
With white Polypropylene snap flange covers to conceal the screws, designed to snap on easily for a snug fit. They protect the flange surfaces from damage, dust, moisture and foreign particles and help to achieve a beautiful and sleek look, at the same time.
Suitable for domestic and commercial places to design barrier-free accessibility, enabling access and assisting mobility of people with disabilities, or special needs, helping make their lives easier.
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0010.
Fixing screws for brick walls included.
Components and materials
BFD600: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, white finish.
BFI600: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, white finish.
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along
the bends.
CONCEALED MOUNTING FLANGE: three units made of steel, 3 mm thick. Incorporates three Ø 6.5 mm screws holes for wall
mounting.
SNAP FLANGE COVER: three units made of Polypropylene, 1.5 mm thick and Ø 85 mm. Each cover snaps over mounting flange to
.jpg)
