Soodus

Presto 504 veekraan isesulguv 7 sek 1/2" külm 63005

Tootekood: P-63005
Kaubamärk:

Ühik: tk
Tarneaeg: 14-21 päeva

Ära maga sügist maha koos PEGU.EE-ga!

Kasuta ostukorvis sooduskoodi OKTOOBER2026 ja saa soodustust!
Pakkumine kehtib kuni 31.10.2026.

Lisa toode korvi ja vali tarnemeetod. Registreerumine pole kohustuslik!⚡

ℹ️ Hind sisaldab käibemaksu.

▼ Loe edasi: ...

✅ Populaarsed tooted Tallinna laos kohe olemas — tarneaeg 1–3 päeva või tule ise järele.

✅ Kui toode on tellimisel, uuri lähemalt — saame tihti pakkuda oodatust kiiremat tarnet: info@pegu.ee

✅ Kõikidele toodetele garantii 2 aastat ja 14‑päevane tagastusõigus.

✅ Automaatne arve e‑postile. E‑arve soovijatel palume lisada märge kommentaaridesse.

ℹ️ Hind sisaldab käibemaksu.

PEGU OÜ — Usaldusväärne ettevõte 2024

kuumaks al. 10,17 €

Hind: 133,00 €

119,70 €

Kuumakse alates: 10,17 €

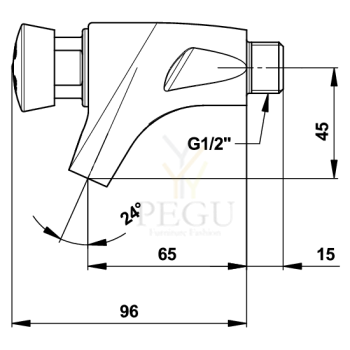

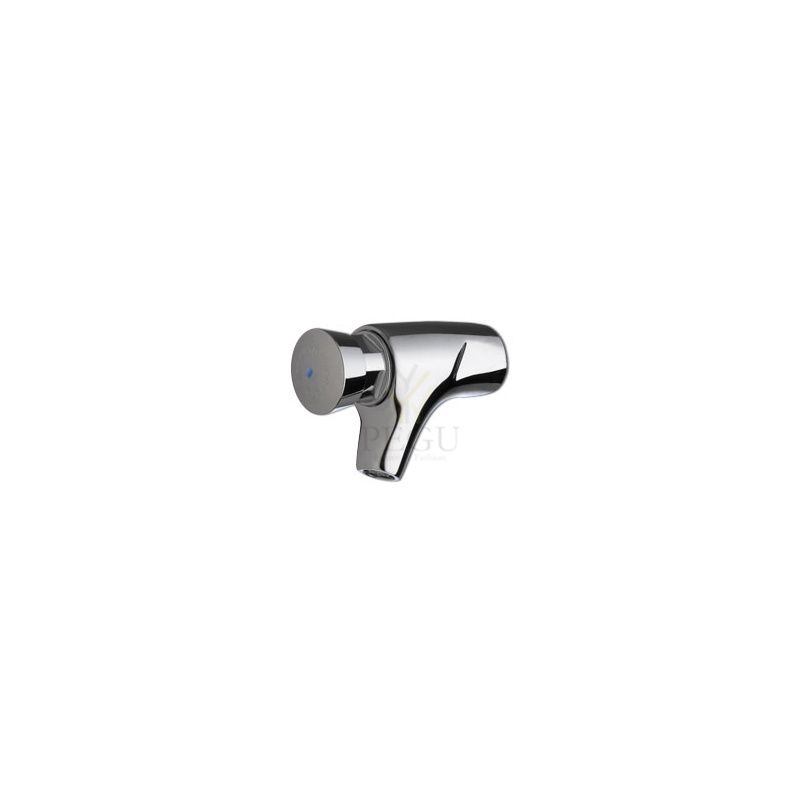

Presto 504 veekraan isesulguv 7 sek 1/2" külm 63005

63005

> Working pressure :

1 to 5 bar

> Flow :

3 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time :

7 seconds

> Hydraulic supply :

M G 1/2" (15x21) - Cold water

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Interchangeable head and anti-rotation push-button Non-removable, wear-proof coloured marker

> Delivered with :

Instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12156
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Failid

Infoleht Presto 504 63005.pdf

Kokku sobivad tooted

Soodus

Sisu kraanile Presto P504/605/600/512TC/P3000 külm ref.01028

Sisu kraanile Presto P504/605/600/512TC/P3000 külm

ref.01028

Tootekood: P-01028 , Tarneaeg: 7-14 päeva , Viimistlus:

70,20 € (10%)
78,00 €

Sarnased tooted

Soodus

Damixa dušikomplekt vannile Fair Jet kroom 7667400

Damixa dušikomplekt vannile Fair Jet kroom

7667400

Tootekood: D7667400 , Tarneaeg: 7-14 päeva , Viimistlus:

52,14 € (10%)
57,93 €

Soodus

Dušipaneel SPA SLIM 25 sekund eelsegatud veele IDRAL 09290

IDRAL 09290

Tootekood: IDR-09290 , Tarneaeg: 3 nädalad , Viimistlus:

359,10 € (10%)
399,00 €

Soodus

WC nupp, P1000E, stoppkraaniga , süvistatud PRESTO 14906

WC isesulguv mehhanism

Tootekood: P-14906 , Tarneaeg: 7-21 päeva , Viimistlus:

380,70 € (10%)
423,00 €

AZP Brno adapter 1-3 punkte ZAC 1-20

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Tootekood: AZP-ZAC 1-20 , Tarneaeg: 3-4 nädalad , Viimistlus:

106,72 €

Prügikast joogitopsidele Multigob, 1600 topsi. Must polypropilene Rossignol 57342

Prügikast joogitopsidele Multigob, 1600 topsi. Must polypropilene

Rossignol 57342

Prügikast joogitopsidele Multigob, 1600 topsi. Must polypropilene

390x700mm

100L

Tootekood: RO-57342 , Tarneaeg: 7-14 päeva , Viimistlus:

455,00 €
