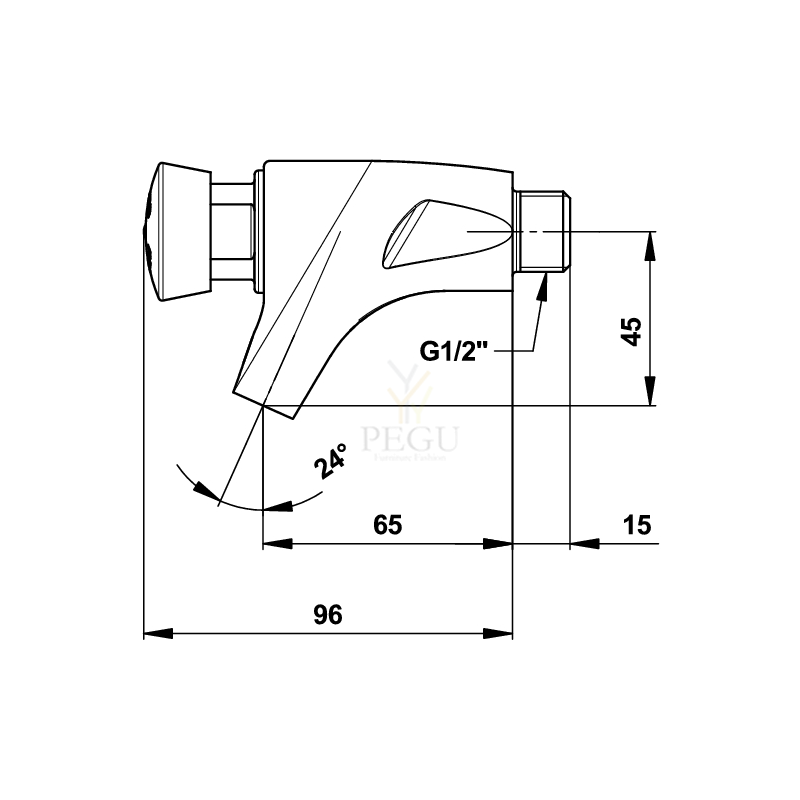

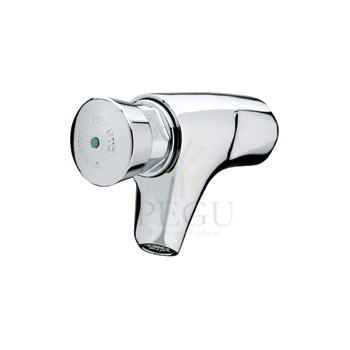

Presto 507 veekraan Large FLOW 18l/min isesulguv 4-8 sek 1/2" külm

Tootekood: P63200
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 137,00 €
130,15 €
Kuumakse alates: 11,05 €
Kogus: - +
   - või -

> Working pressure :

1 to 5 bar

> Flow :

18 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time :

4-8 seconds

> Hydraulic supply :

M G 1/2" (15x21) - Cold water

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Interchangeable head and anti-rotation push-button Non-removable, wear-proof coloured marker

> Delivered with :

Instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12156
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

18 1/2” 6 75°C 10YEARS ACS l/min sec
