Presto CHEF professionaalne köögisegisti dušiga 1 auk ref.70818

Tootekood: P70818
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
925,00 €
Kogus: - +
   - või -

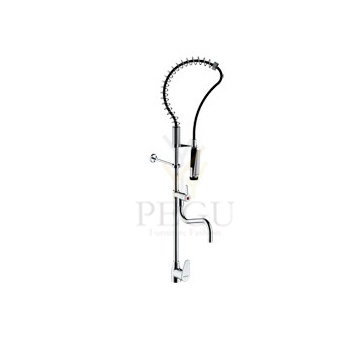

Ref: 70818 - Column –deck-mounted mixer – rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts

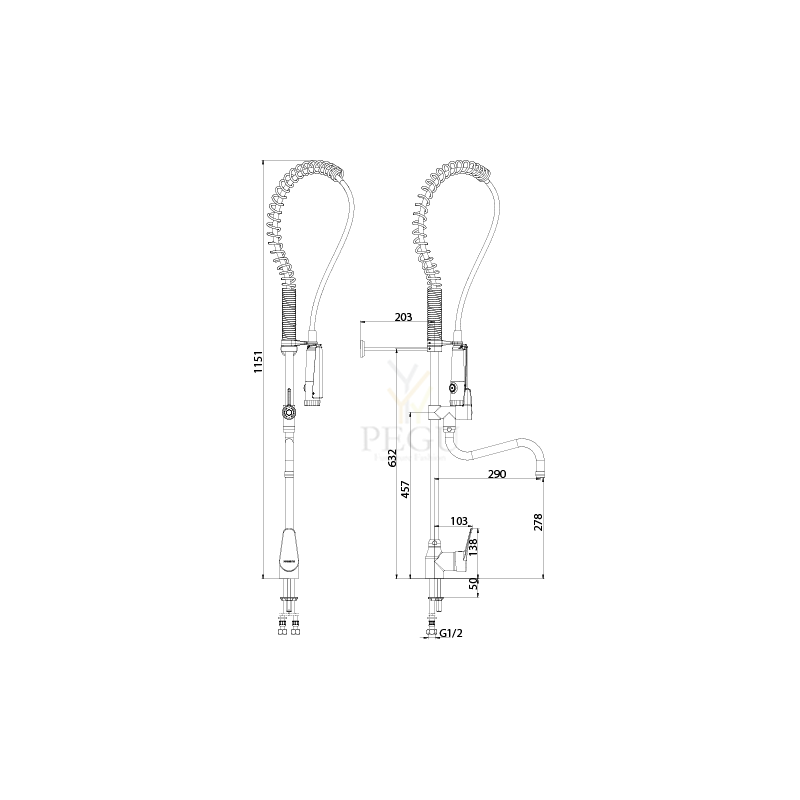

> TECHNICAL SPECIFICATIONS > Dimensions:

Maximum fixing height: 632 mm

> Model:

Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12 L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with :

1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540

Sarnased tooted
Tootekood: P70553 ,   Tarneaeg: 7 päeva-14 päeva
909,15 € (5%)
957,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €

Deck-mounted single hole mixer - 45 lpm
Ref. 5640T3

Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 190mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.

Tootekood: DE-5640T3 ,   Tarneaeg: 7-14 päeva
366,00 €

Twin hole pre-rinse set with mixer
Ref. 5633

Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. 5633

Connector M1/2"
Height 1110 - 1230mm
Drop height 345 - 585mm
Flow rate 25 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Tootekood: DE-5633 ,   Tarneaeg: 14-21 päeva
1093,00 €

Wall-mounted pre-rinse set with mixer
Ref. G6433

Complete pre-rinse set without bib tap.
Wall-mounted mixer, F3/4" with 150mm centres with:
- Valve heads with control knobs.
- Non-return valves integrated in the mixer.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Wall-mounted pre-rinse set with mixer
Ref. G6433

Connector F3/4"
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Tootekood: DE-G6433 ,   Tarneaeg: 14-21 päeva
667,00 €
