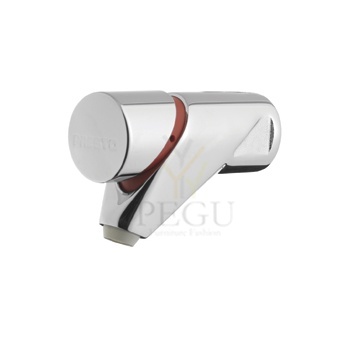

Presto kraan soe/eelsegatud veele Prestomat 2010 30 sek
> Working pressure :
1 to 5 bar
> Flow :
4l/min Flow limiter / 5-position flow adjustment device inaccessible to users Anti-water-hammering design
Vandalism proof and anti-clogging spout
> Flow time :
15 seconds ( ± 5 sec.) - 4-position flow adjustment device
> Operation :
Simple push-button action to activate the water/flow
> Hydraulic supply :
M G 1/2" (15x21) - Premixed water (Red skirt)
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shock
> Delivered with :
1 G 1/2" nut for 12x14 tube with filter gasket 1 Stainless steel plain washer
1 Brass clamping nut
1 Nitrile plain washer
> Standards & approvals :
Acoustic class I
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Vajutava nupuga segisti
P 400 S BC
15 sek. töötsükkel 3 bar
Jooksutoru pööratav, valamule
Töötsükkel 7 sek
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
Angled isolating valve
Ball valve with filter and testpoint (to connect pressureand temperature gauges).
