Presto SO’O segisti kontaktivaba 3l/min patarei 6V CRP2 PEX torud+stop kraanid must pink gold 56196

Presto SO’O segisti kontaktivaba 3l/min patarei 6V CRP2 PEX torud+stop kraanid must pink gold 56196

56196

Range: SO'O

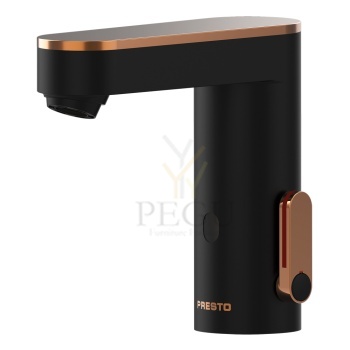

Ref: 56196 - Deck-mounted mixer sensor tap - Battery - Black and pink gold cover

Powered by TCPDF (www.tcpdf.org)

> Working pressure :

1 to 5 bar

> Flow :

3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply :

G 3/8" (12x17)

> Power supply :

6 V lithium battery (CRP2 type) in a casing placed within the tap body

> Material and colour finish :

Chrome-plated metal alloy components Injected molded metal body and cover Black finish with pink gold cover

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Temperature limited by adjustable stop
Anti-overflow security time: 30 seconds
Anti-blocking system preventing the water to flow continuously
Solenoid valve automatically shut down in case of power shortage or in case of sensor degradation

> Delivered with:

2 Fastening nuts
1 Gasket and 1 Washer
2 PEX flexible hoses with F 3/8'' nut (12x17) and NF non-return valve 2 Straight stop valves G 3/8" (12x17)
2 Filter gaskets
Instructions manual

> Standards & approvals :

200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
