Raam dosaatorile Wagner Ewar WP1310/1311

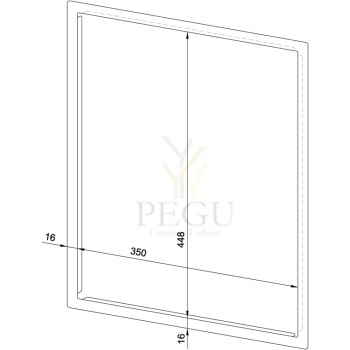

350 x 448 x 210 mm
1 paper roll

• Sensor paper roll dispenser, mains-operated, in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed with tapered glossy surface at the bottom.
  Further available surfaces: see below.
• With touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll with dimensions: Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 352 x 450 x 180 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 10,3

R/V teras AISI316

Prügikast 25l, seinapealne paigaldus

R/V Teras AISI304

kotiraamiga

• WASTE DEPOSIT FLAP WP 154-1

  300 x 235 x 30 mm

  • Self-closing, flame-retardant waste deposit flap in robust, germ-reducing and easy-care stainless steel (AISI 304).
  • All-stainless steel construction; visible surfaces satin finished and brushed.
    Further available surfaces: see below.
  • No wearing parts, smooth closing by counterweight.
  • Mounting: Insert and glue into cutout.
  • Installation dimensions: 277 x 210 mm
  • Weight (in kg): 1,5

  AVAILABLE SURFACES	ORDER NUMBERS
  satin finished (standard)	727230
  highly polished	731230
  (coloured) plastic powder - coating	728230
