Roostevaba terasest WC pott seinale Delabie BCN S poleeritud 110112

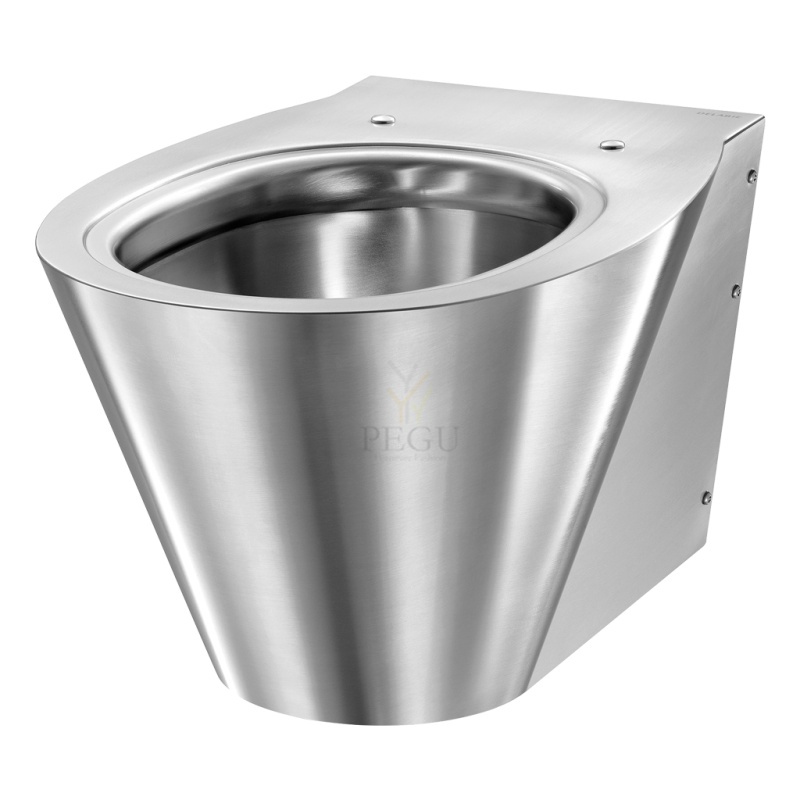

Wall-hung WC pan with cross wall installation for service ducts.
700mm elongated pan for improved comfort for people with reduced mobility (700 S TC).
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece, pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.

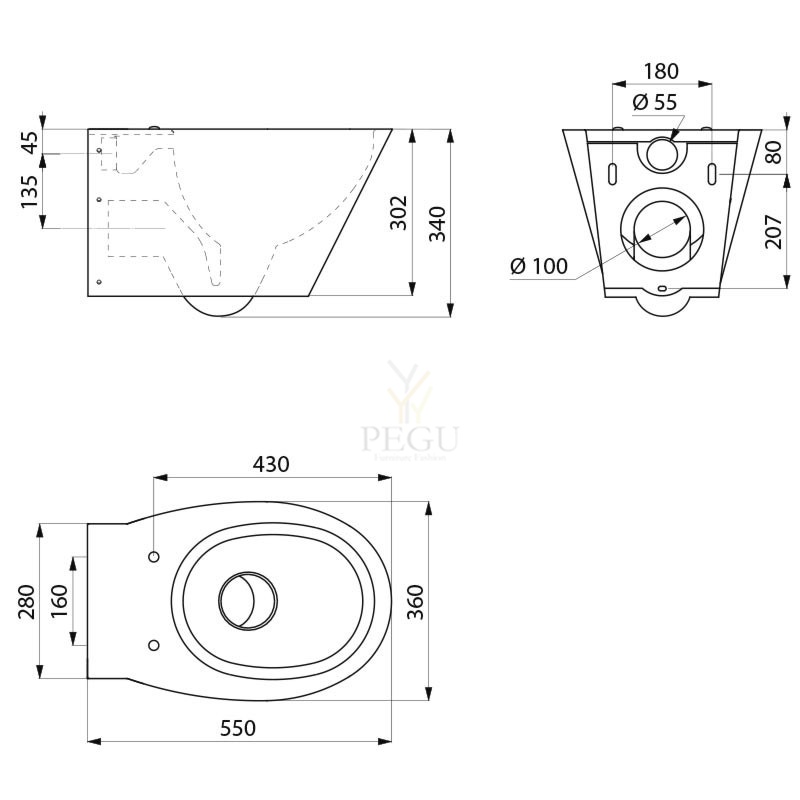

Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 16.5kg.

TECHNICAL FEATURES

700 S TC wall-hung WC pan
Ref. 160710

Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Central WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130005]

TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Washbasin combination unit with cistern, mounted WC pan in centre with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

KOMPACT washbasin and wall-hung WC combination
Ref. 162500

Combination unit: washbasin and floor-standing WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030006]

TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 160600

Seinale paigaldatav WC-pott S21 S mustade kaitsepatjadega Art. 110310PAD

• Mõõdud: Seinale paigaldatav WC-pott, 360 x 350 x 535 mm.

• Ühilduvus: Sobib kõikide turul saadaolevate standardsete raamsüsteemidega (installatsioonidega).

• Disain: Elegantne ja lihtne välimus.

• Materjal: Bakteristaatiline roostevaba teras 304.

• Viimistlus: Poleeritud satiin (matt läige).

• Terasest paksus: 1,5 mm.

• Hügieen: Ühes tükis pressitud WC-pott, ilma õmblusteta — lihtne hooldada ja tagab maksimaalse hügieeni.

• Puhastamine: Potisisese pinna poleeritud ja ümarad servad hõlbustavad puhastamist.

• Loputus: Varjatud perimeetriline loputusserv.

• Ühendused: Horisontaalne vee sisselase: Ø 55 mm; Horisontaalne äravool: Ø 100 mm.

• Vee säästmine: Töötab 4L või suurema veekogusega.

• Konstruktsioon: Täielikult suletud korpus (shrouded pan).

• Eripära: Tarnitakse koos poti külge kinnitatud mustade kaitsepatjadega.

• Paigaldus: Kiire ja lihtne paigaldus eestpoolt tänu roostevabast terasest kinnitusraamile.

• Turvalisus: Komplektis kinnitusplaat ja 6 vargusvastast TORX turvakruvi.

• Sertifitseerimine: CE-märgis. Vastab Euroopa standardile EN 997 (4L loputus).

• Kaal: 11 kg.

Wall-mounted S21 S WC with black protective pads

Ref. 110310PAD
