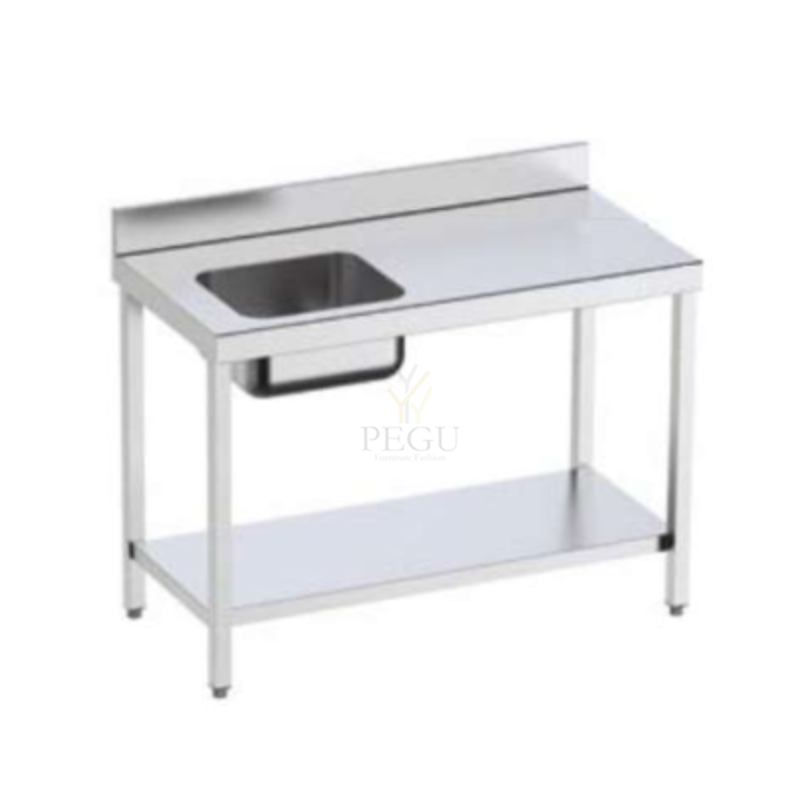

Portinox valamu jalgadega ja tööpinnaga 1500x600 mm Portinox Zoom

Seinale kinnitatav roostevabast terasest laud valamu ja riiuliga 1500x600 Portinox

Tootekood: PLAUDVAL150x60
Kaubamärk:
Ühik: kompl
Tarneaeg: 5-6 nädala
Hind:
1880,33 €
Kuumakse alates: 159,83 €
Kogus: - +

Seinale kinnitatav roostevabast terasest laud valamu ja riiuliga 1500x600 Portinox

Roostevaba teras valamu+laud seina äärde 1500x600mm

Roostevaba teras AISI 304

Seinale kinnitatav roostevabast terasest laud valamu ja riiuliga 1500x600

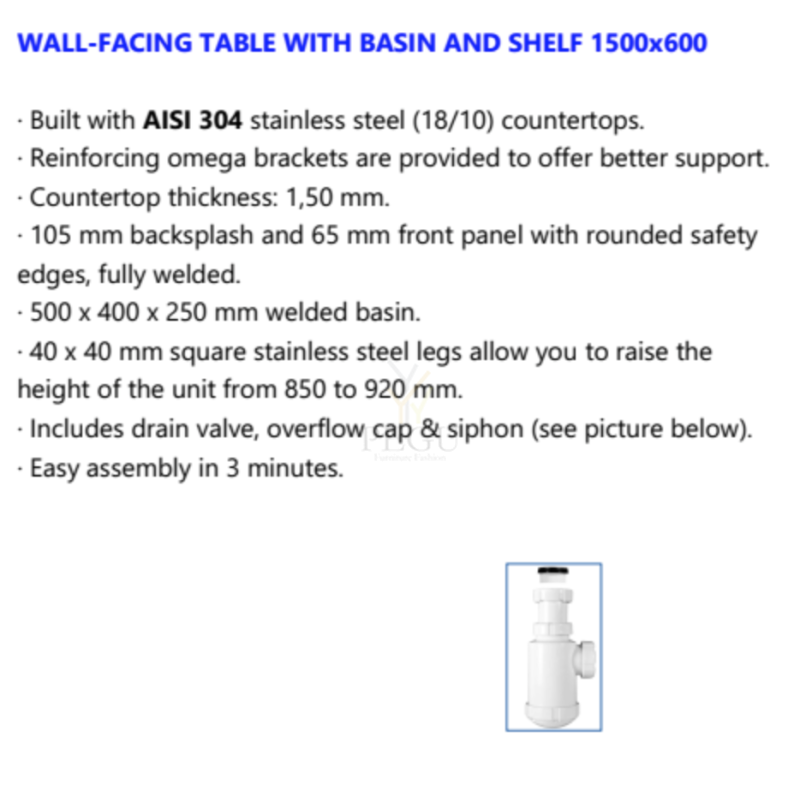

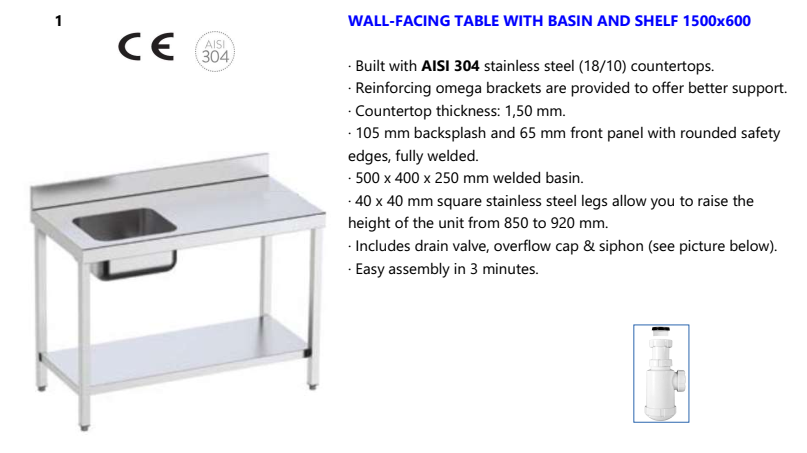

Kirjeldus:

  • Valmistatud AISI 304 roostevabast terasest (18/10).
  • Tugevduseks lisatud omega tüüpi kronsteinid.
  • Tööplaadi paksus: 1,50 mm.
  • 105 mm kõrgune pritsmekaitse ja 65 mm esipaneel ümardatud turvaservadega, täielikult keevitatud.
  • Keevitatud valamu mõõtmetega 500 x 400 x 250 mm.
  • 40 x 40 mm roostevabast terasest nelikantjalad, võimaldavad kõrguse reguleerimist 850–920 mm vahel.
  • Komplektis äravooluklapp, ülevoolukork ja sifoon.
  • Lihtne paigaldus – kokkupanek võtab vaid 3 minutit.









Sarnased tooted

Korvsõelaga äravool.Ava 90mm. H=15-56mm.RST LIRA 1945010

Kausi paksus 16-46 mm, 1 1/2"

Tootekood: LI1945010 ,   Tarneaeg: 7 päeva ,   Viimistlus:
41,67 €

Roostevaba teras WC pott Delabie Monobloco S21, R/V AISI304 matt 110390

DESCRIPTION

MONOBLOCO S21 WC pan with cistern
Ref. 110390

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty.



TECHNICAL FEATURES

MONOBLOCO S21 WC pan with cistern
Ref. 110390

Height 815mm
Length 620mm
Width 370mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
Tootekood: DE-110390 ,   Tarneaeg: 7 nädalad ,   Viimistlus:
2478,98 €

Roostavaba teras veetrapp, D75 mm vertikaalne, 150x150mm AZP Brno PV 01.D.75.P


R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädala ,   Viimistlus:
429,93 €

AZP Brno adapter 1-3 punkte ZAC 1-20




ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
106,72 €

Antivandaalne Peegel R/V teras 385x485 AISI304 DELABIE 3452

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Tootekood: DE-3452 ,   Tarneaeg: 7-21 päeva ,   Viimistlus:
279,51 €
