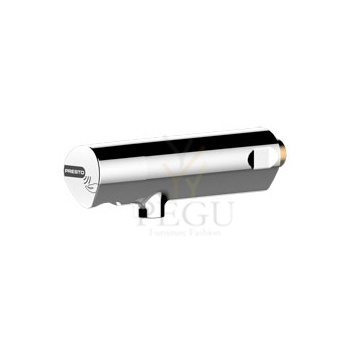

Sensoriga kraan kontaktivaba seinale PRESTO SAFE 64677 ECO 1.9 l/min

Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
359,80 €
Kuumakse alates: 30,57 €
Kogus: - +
   - või -

> Working pressure :

2 to 5 bar

> Flow :

1.9 l/min with integrated spray flow regulator High quality anti-limescale aerator Anti-water-hammering design

> Flow time:

7 sec adjustable with PRESTOCOM : http://www.presto.fr/whatabout/prestocom/ Sensor trigger suitable for elderly and disabled people

> Hydraulic supply :

G 1/2" (15x21) - Cold or premixed water

> Power supply :

Integrated 9V lithium battery

> Material and colour finish :

Brass body Chrome finishing

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Automatic shutdown of solenoid valve in case of power failure or sensor error Duty flush 30 sec each 24h after last use (adjustable flow time and frequency) Low battery alert (blinking led light)

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer 1 Filter gasket
1 Self-adhesive sticker Instruction manual

> Standards & approvals :

Brass body in accordance with NF EN1982, EN12164, NF EN 12165, UBA list compliant 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
ACS

Video



Sarnased tooted

Vajutava nupuga segisti

Presto

Antiblokeerimise süsteemiga

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Tootekood: P68132 ,   Tarneaeg: 7 päeva ,   Viimistlus:
422,82 €

Sisu

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar



Tootekood: P01017 ,   Tarneaeg: 7 päeva ,   Viimistlus:
346,59 €

Kudos Slim dušikomplekt, kroom LM

Tootekood: D7650200 ,   Tarneaeg: 3-7 päeva ,   Viimistlus:
57,17 € (25%)
76,23 €

Dušhikraan, eelsegatud veele 30 sek töötsükkel

Tootekood: P38222 ,   Tarneaeg: 7-14 päeva ,   Viimistlus:
218,52 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
106,72 €
