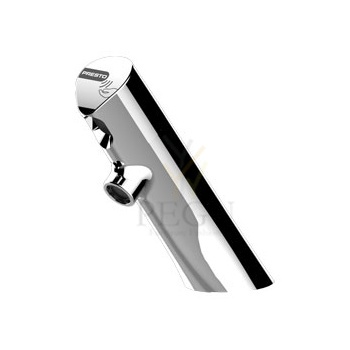

Sensoriga kraan valamule kontaktivaba PRESTO SAFE 64679 3l/min

Tootekood: P64679
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
341,60 €
Kuumakse alates: 29,36 €
Kogus: - +

PRESTO SAFE

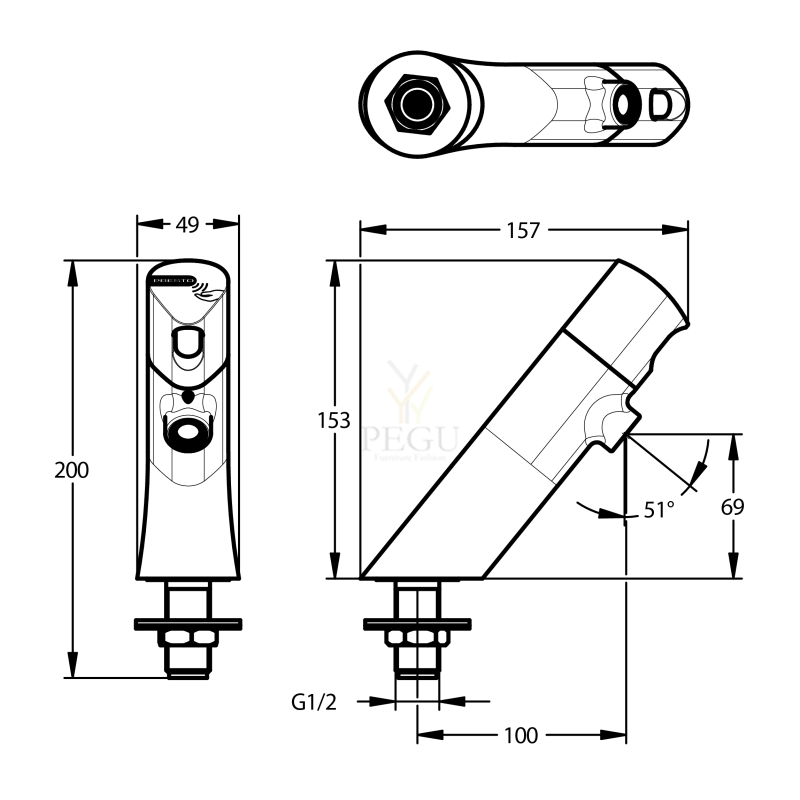

Ref: 64679 - Single deck-mounted sensor tap - 3l/min

> Working pressure :

1 to 5 bar

> Flow :

3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design

> Flow time:

7 sec adjustable with PRESTOCOM : http://www.presto.fr/whatabout/prestocom/ Sensor trigger suitable for elderly and disabled people

> Hydraulic supply :

G 1/2" (15x21) - Cold or premixed water

> Power supply :

Integrated 9V lithium battery

> Material and colour finish :

Brass body Chrome finishing

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Automatic shutdown of solenoid valve in case of power failure or sensor error Duty flush 30 sec each 24h after last use (adjustable flow time and frequency) Low battery alert (blinking led light)

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer 1 Filter gasket
1 Self-adhesive sticker Instruction manual

> Standards & approvals :

Brass body in accordance with NF EN1982, EN12164, NF EN 12165, UBA list compliant 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
ACS

Video



Sarnased tooted

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Available in all RAL colours.

• Comes in trendy matt black and classic white as standard.

• Also available coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3052 / EAN no. 5-709818-030524
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3052 96 ,   Tarneaeg: 14-21 päeva
524,60 €

Surface automatic liquid soap dispenser



Automatic wall-mounted liquid soap dispenser of 1 L capacity, manufactured in stainless steel AISI 304, 0.8 mm thick.

Available in four finishes (white, black, bright and satin) these soap dispenser models have a functional, robust and trendy design that matches the new range of Mediclinics bathroom accessories. This allows this soap dispenser to blend into any space perfectly.

Suitable for high traffic facilities and for public use.

Dispenses liquid soaps with neutral pH, chlorine free and density between 0.9 and 1.35 kg/dm3. Surgical soaps and soaps with solid abrasive particles are not supported.




Tootekood: MDJ0037A ,   Tarneaeg: 7-14 päeva
180,90 € (10%)
201,00 €

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height 150mm
Length 375mm
Width 430mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Tootekood: DE-121710 ,   Tarneaeg: 14 päeva
463,60 €

Keraamiline pissuaar Caprino Plus radariga Sanela,  integreeritud adapter 230V/ AC

SLP 49RZ



Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01495
Code SLP 49RZ


Supply specification

SLP 49RZ - Supply No. 01495 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Tootekood: SA-SLP49RZ ,   Tarneaeg: 14-21 päeva
1342,00 €

Joogifontään seinale sensoriga R/V teras AISI304 12V/50Hz

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.Y ,   Tarneaeg: 3-4 nädalad
817,00 €
