• WASTE DEPOSIT FLAP WP 154-1

  300 x 235 x 30 mm

  • Self-closing, flame-retardant waste deposit flap in robust, germ-reducing and easy-care stainless steel (AISI 304).
  • All-stainless steel construction; visible surfaces satin finished and brushed.
    Further available surfaces: see below.
  • No wearing parts, smooth closing by counterweight.
  • Mounting: Insert and glue into cutout.
  • Installation dimensions: 277 x 210 mm
  • Weight (in kg): 1,5

  AVAILABLE SURFACES	ORDER NUMBERS
  satin finished (standard)	727230
  highly polished	731230
  (coloured) plastic powder - coating	728230

H880 x P570 x L420 mm

298 x 598 x 140 mm
12 l

• Waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Equipped with removable mesh basket. Capacity approx. 12 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Also suitable for use as a hygiene waste bin with the optional plastic hygiene bin WP33.

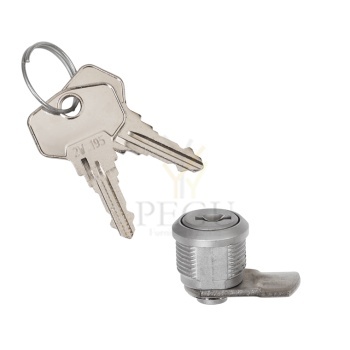

• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material.

• Weight (in kg): 5,7

400 x 600 x 200 mm
ca. 48 l

• Waste basket in robust, germ-reducing and easy-care stainless steel wire (AISI 304).
• 2.5 mm and 4 mm thick lattice work. Fastening eyes in second row for invisible wall mounting.
• Capacity approx. 48 l.
• Mounting: With two screws.
• Delivery includes fixing material.

• Weight (in kg): 1,1

298 x 1348 x 120 mm
ca. 250 paper towels / 400 ml foam soap concentrate / 11 l

• Combination consisting of a foam soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Foam soap dispenser with one-hand operated and non-drip foam soap pump.
• Designed for standard 400 ml foam soap concentrate.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1350 x 110 mm
• Mounting: With eight screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 14,9
