Termoregulaator paralleelse ühendusega 1/2"
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!
Lugupeetud PEGU.EE veebipoes külastajad!
Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!
PEGU.EE meeskond

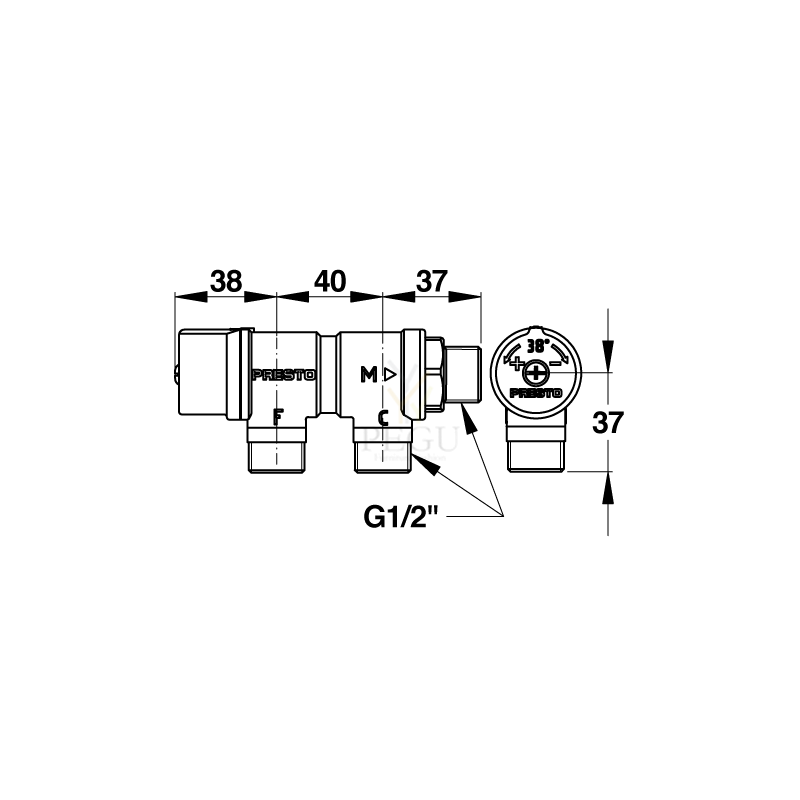

Termoregulaator paralleelse ühendusega 1/2"
Thermostatic mixing valve with internal temperature limiter Ref: 29006 - Thermostatic mixing valve with parallel 1/2'' inlets
-
> Flow:
maximum: 43 l/min at 3 bars minimum: 4 l/min at 3 bars
-
> Temperature :
Factory setting: 38°C
Temperature, hot water inlet: 85°C max
Minimum differential temperature: 15°C (Between hot water inlet and mixed outlet) Temperature control plan: 20 to 65°C at 3 bar
Mixed Temperature Stability: +/- 2°C from 37 to 42°C for a flow range from 12 to 47L/mn -
> Hydraulic supply :
G 1/2" (15x21) Inlet & Outlet
Red tag for hot water, and blue tag for cold water -
> Thermal resistance :
Designed to withstand thermal shocks at temperatures over 75°C during 30 min
-
> Security :
Anti-scald system: flow is immediately stopped if the cold water is cut off Internal temperature blocker
-
> Delivered with :
2 Filter gaskets
2 NF check valves Instruction manual -
> Standards & approvals :
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227 Brass body in accordance with EN 1982, EN 12164, EN 12156
Failid
Segistitoru, ümberlülitiga , koos dušikinnitusega
97,60 €
Standardomadused:
Keraamiline tööorgan
3/4" ühendus peadušile
1/2" ühendus
Standardne tsentrite vahe 150 mm Varustatud ilukatete ja ekstsentrikutega.
632,37 €
PREMIX COMFORT
Ref. 731002
Group thermostatic mixing valve for mixed water distribution from 32° - 42°C:
Anti-scalding safety.
Regulates temperature variations.
Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M3/4".
Standardomadused:
Põletuskaitsega (38oC)
1/2" ühendus
Standardne tsentrite vahe 150 mm
Veesäästu funktsioon Eco-Klik
1/2" ühendus käsiduši voolikule
For reversed installation; hot water on the right hand side.
238,92 €
Presto tervishoiu komplekt Sanifirst TOUCH MASTERMIX 75700 thermotaadiga dušisegisti
Tervishoiu kraanid ja segistid
> The Product Benefits
MASTERMIX PATENTED TECHNOLOGY
Innovative association of a specific ceramic cartridge and a thermostatic cartridge: safety and reliability. Without DHW/DCW cross-connection
Without check valve
Cold body: anti-scalding insulation
Body with a smooth interior: limits the risk of bacterial development (legionella, pseudomonas, etc.) Intuitive control units
Temperature limiter (41 ° C) and maximum flow rate stop limiter
Temperature maintenance and anti-scalding safety
Quick and easy assembly and maintenance
Secure thermal shock: accessible only by technical services
Eccentric fittings with 1/4 turn shut-off valves integrated into the product
Body with docking to the partition: optimized cleaning of all contact surfaces
> Anti-scalding safety
Temperature knob with temperature limiter at 41 ° C. Unlocking secured for thermal shock and accessible only by technical services without removing the knob.
> Anti-bacterial proliferation safety
Unique DHW and DCW no cross-connection system, produced by the association of a specific ceramic cartridge and a thermostatic cartridge compliant to NF EN 1111.
> Model
Shower mixer, downward outlet, wall mounted
Span 150 mm (+/-) 10 mm
Ceramic cartridge and thermostatic cartridge compliant to NF EN 1111
> Flow rate
Factory set to 9 L / min at 3 bar
Maximum flow rate adjustable to 6 - 9 - 12 L / min by the technical staff
> Recommended pressure
3 bar - avoid pressure differences greater than 1 bar between DHW and DCW. Minimum pressure: 1 bar.
Maximum pressure: 5 bar.
> Material
Chrome-plated zamak.
> Connection
Connection exclusively using a fixing plate with M G'1 / 2 connection 150 +/- 10mm span integrating shut-off valves, filtration and acoustic connection (supplied).
> Delivred with:
1-jet handshower ref 75279
wall support ref 75303
anti-stagnation connector ref 60568 smooth gray hose Lg 850 mm ref 75524
696,42 €
