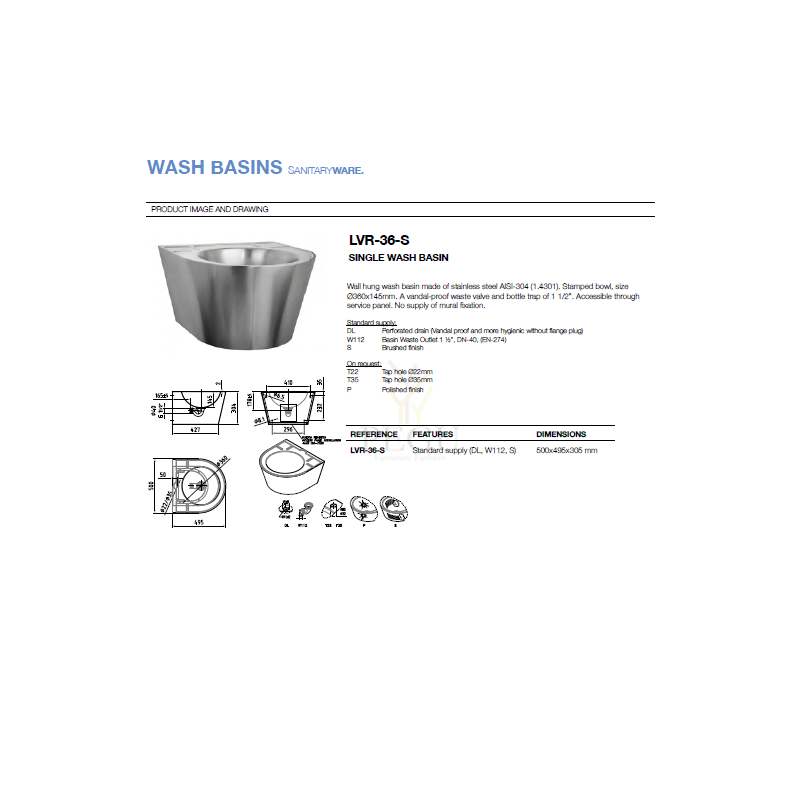

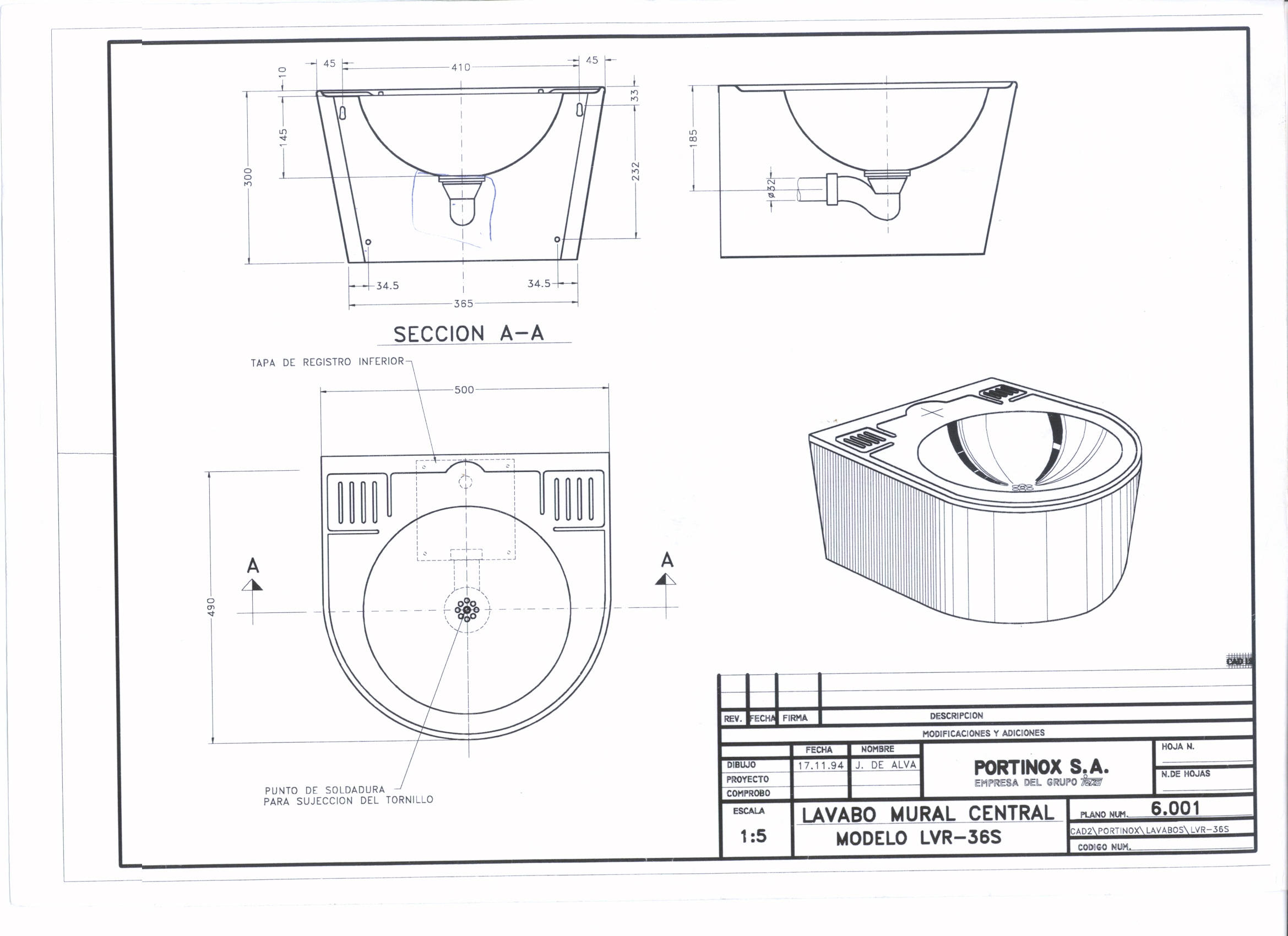

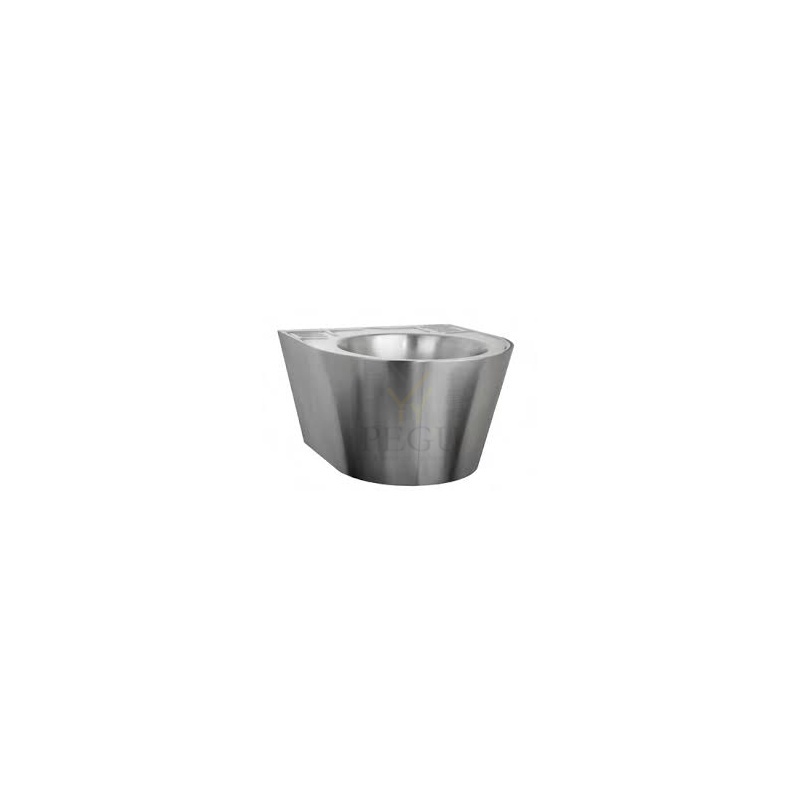

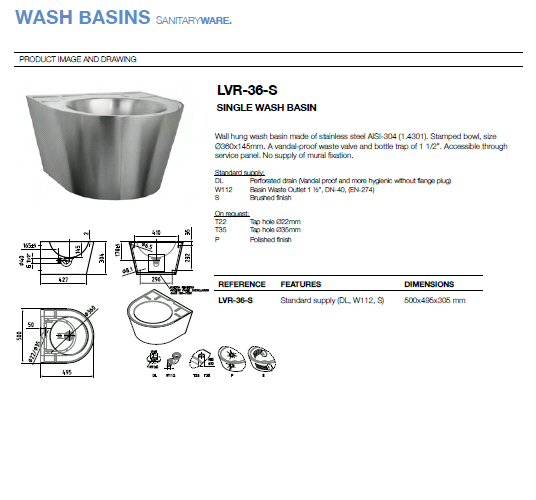

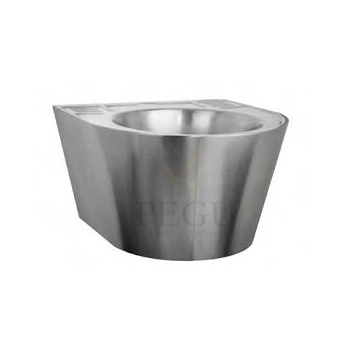

Turvavalamu LVR-36-S, sifoon, valamu sees PORTINOX

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

• st. steel drinking fountain
• nozzle
• sensor and electronic
• electromagnetic valve
• connecting flexible hose
• corner valve with filters
• siphon
• mounting material

AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl

Package contents

• stainless steel column and cone with nozzle
• press valve
• anchoring construction
• flexible hose siphon
• connecting hoses
• anchoring material

• Set-up water inlet - pipe G 1/2“
• Set-up drainage d = 40 mm
• Prepared alcove for embedding (concreting) in the base construction

AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.

Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.

The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.

The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.

Package contents

• stainless steel casing
• press valve
• corner valve with filter
• fixing bar
• siphon
• connecting hose
• anchoring material

• Set-up water inlet - pipe G1/2“.
• Set-up drainage d = 40 mm.
