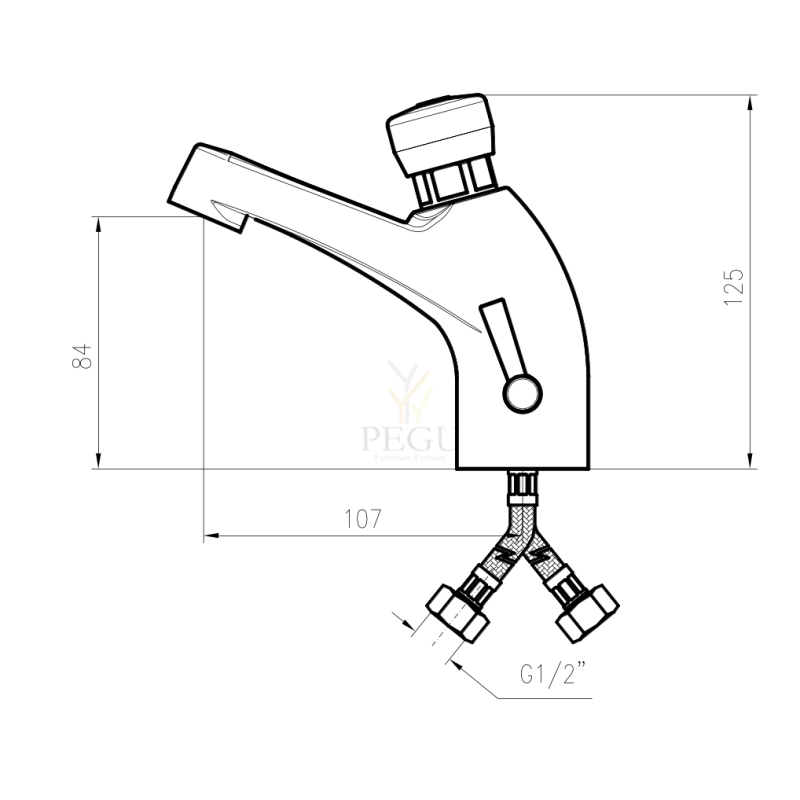

Idral isesulguv segisti 090121.png Zoom

Valamusegisti CLASSIC series isesulguv 6L, 15 sek kroom

Tootekood: IDR-08012
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Hind: 183,00 €
164,70 €
Kuumakse alates: 14,03 €
Kogus: - +
   - või -

Valamusegisti CLASSIC series isesulguv 6L, 15 sek kroom

CLASSIC series self closing basin mixer with push button

Push button control
Self-closing time 15 secs at 3 bars (not adjustable)
Mixing with side lever
Check valves and stainless steel flexibles included

COMPOSITION

- Chromed brass body
- With check valves
- Stainless steel flexible hoses 1/2”

- Adjustable aerator

Water inlet temperature:

Flow time: 6 l/min (w/flow regulator)

Operating pressure: Min 1 – max 6 bar

Soovituslik surve: 2 – 4 bar
Töötemperatuur: 5 – 65 °C



Sarnased tooted

Pissuaarikraan 1/2-1/2" 6 sek

Isesulguva mehhanismiga, kroom

Tootekood: P31707 ,   Tarneaeg: 7 päeva
111,15 € (5%)
117,00 €

Vooluhulga piiraja

12 l/min (3bar)

1401

Veesääst 30% (3 bar)

RST vee vooluhulga regulaator dušisegistile või peaduššile (½” ühendus). Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1401 ,   Tarneaeg: 7 päeva
12,20 €

Dušikomplekt segisti Presto ALPA 35812 isesulguv, 30 sek 3bar, kroom

Ideaalne lahendus spordiklubisse, tootmisse, jõusaali

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar

Presto ALPA 35812 isesulguv dušikomplekt on täiuslik valik nii avalikesse ruumidesse kui ka spordiklubidesse. Kvaliteetne kroomitud segisti on varustatud 6 l/min voolupiirajaga, mis tagab vee kokkuhoiu ilma mugavust vähendamata. Segisti isesulguv mehhanism lõpetab vee voolu automaatselt 30 sekundi jooksul.

Ohutuse tagab reguleeritav temperatuurilimiiter, mis hoiab ära kuumaveepõletused. Komplektis on ka reguleeritava võrega dušiotsik, toru ja kinnitusklamber. Vastupidav konstruktsioon ja termilise šoki taluvus kuni 75°C muudavad selle ideaalseks igapäevaseks kasutamiseks.



Tootekood: P35812 ,   Tarneaeg: 7-14 päev
607,05 € (5%)
639,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €

Vajutava nupuga dušši segisti

ALPA

Presto

kroom-must nupp

30 sek. töötsükkel 3 bar



Tootekood: P35815 ,   Tarneaeg: 14-21 päev
642,20 € (5%)
676,00 €
