SYSTEMAIR SAVE VSR 300 FILTRIKOMPLEKT

Õhusti M22x1 WA100-300 (alates 2018)

PERLATOR M22X1 924282

for WA100 - 210
(from 2018)

Ø 19 x 16 mm
0,01 kg

Tootekood: WAG-924282 , Tarneaeg: 14-21 päeva

13,77 € (5%)
14,50 €

Keermega komponent õhustile M22x1 WA100-300 (alates 2018)

THREAD PIECE PERLATOR M22X1 923952

for WA100 - 210
(from 2018)

Ø 22 x 19 mm
ca. 18 g

Tootekood: WAG-923952 , Tarneaeg: 14-21 päeva

42,18 € (5%)
44,40 €

Kartridz padrun segistile Wagner Ewar WA100-510

CARTRIDGE 924260

for WA 100 - 210
Ø 35 x 60 mm

0,05 kg

Tootekood: WAG-924260 , Tarneaeg: 14-21 päeva

46,55 € (5%)
49,00 €

Sarnased tooted

Valamusegisti pikk käepide Wagner Ewar Roostevabast terasest AISI303 satiin

BASIN TAP WA 100-1

Ø 45 x 170 x 185 mm
normal pressure

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: normal pressure. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 171 mm
Outlet height: 87 mm
Projection: 98 mm
Length of lever: 140 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Weight (in kg): 1,60

AVAILABLE SURFACES	ORDER NUMBERS
satin finished (standard)	924276
highly polished	931276

Suggested text for specifications:

Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: normal pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Dimensions: Ø 52 x 171 x 185 mm
Outlet height 87 mm
Projection 98 mm
Length of lever 140 mm

Article No. WA100-1

Tootekood: WAG-WA100-1 , Tarneaeg: 14-21 päeva

578,55 € (5%)
609,00 €

Valamusegist Wagner Ewar kõrge, pikk käepide Roostevabast terasest AISI303 satiin

BASIN TAP WA 110-1

Ø 45 x 283 x 185 mm
normal pressure

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: normal pressure. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 283 mm
Outlet height: 199 mm
Projection: 98 mm
Length of lever: 140 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Weight (in kg): 1,70

AVAILABLE SURFACES	ORDER NUMBERS
satin finished (standard)	925276
highly polished	932276

Suggested text for specifications:

Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: normal pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Dimensions: Ø 52 x 283 x 185 mm
Outlet height 199 mm
Projection 98 mm
Length of lever 140 mm

Article No. WA110-1

Tootekood: WAG-WP110-1 , Tarneaeg: 14-21 päeva

769,50 € (5%)
810,00 €

Valamusegist Wagner Ewar kõrge, pikk käepide Roostevabast terasest AISI303 poleeritud

BASIN TAP WA 110-1

Ø 45 x 283 x 185 mm
normal pressure

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: normal pressure. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 283 mm
Outlet height: 199 mm
Projection: 98 mm
Length of lever: 140 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Weight (in kg): 1,70

AVAILABLE SURFACES	ORDER NUMBERS
satin finished (standard)	925276
highly polished	932276

Suggested text for specifications:

Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: normal pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Dimensions: Ø 52 x 283 x 185 mm
Outlet height 199 mm
Projection 98 mm
Length of lever 140 mm

Article No. WA110-1

Tootekood: WAG-WA110-1P , Tarneaeg: 14-21 päeva

933,85 € (5%)
983,00 €

Valamusegisti madalsurve Wagner Ewar Roostevabast terasest AISI303 poleeritud

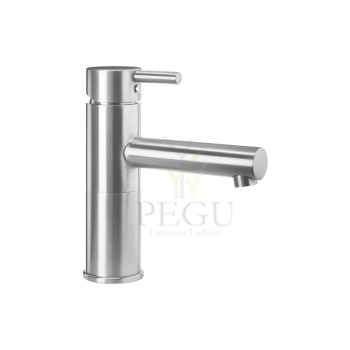

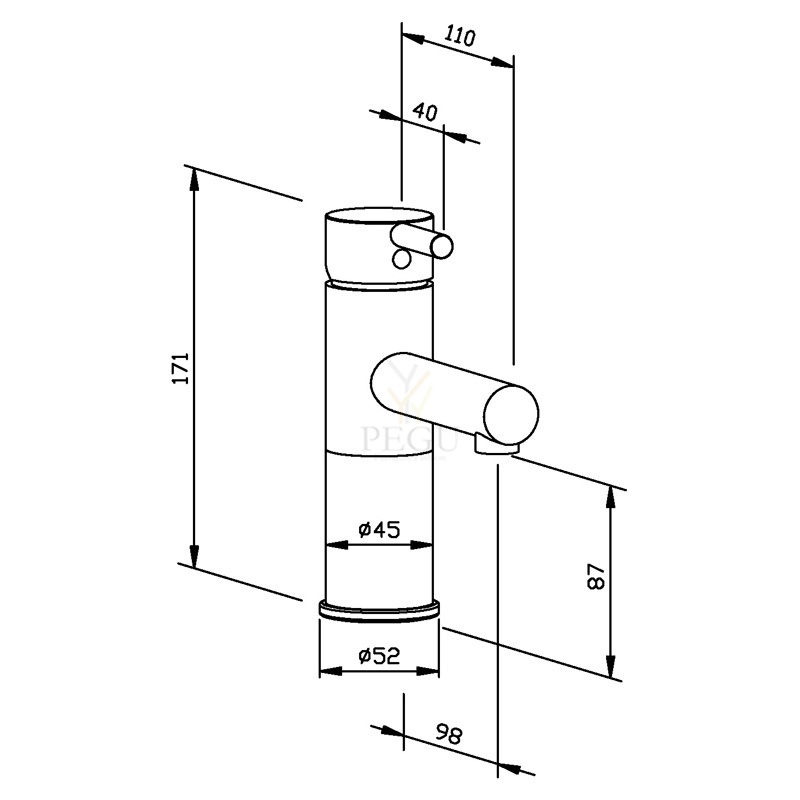

BASIN TAP WA 200

Ø 45 x 170 x 155 mm
low pressure

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: low pressure, suitable for unpressurised tanks. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 171 mm
Outlet height: 87 mm
Projection: 98 mm
Length of lever: 40 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and three flexible connecting hoses clad in stainless steel.

Weight (in kg): 1,90

AVAILABLE SURFACES	ORDER NUMBERS
satin finished (standard)	924267
highly polished	931267

Tootekood: WAG-WA200P , Tarneaeg: 14-21 päeva

737,20 € (5%)
776,00 €

Valamusegisti madalsurve kõrge Wagner Ewar Roostevabast terasest AISI303 poleeritud

BASIN TAP WA 210-1

Ø 45 x 283 x 185 mm
low pressure

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: low pressure, suitable for unpressurised tanks. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 283 mm
Outlet height: 199 mm
Projection: 98 mm
Length of lever: 140 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm, surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and three flexiblen, stainless steel covered connecting tubes.

Weight (in kg): 2,00

AVAILABLE SURFACES	ORDER NUMBERS
satin finished (standard)	925277
highly polished	932277

Suggested text for specifications:

Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: low pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and three flexible connecting hoses clad in stainless steel.

Dimensions: Ø 52 x 283 x 185 mm
Outlet height 199 mm
Projection 98 mm
Length of lever 140 mm

Article No. WA210-1

Tootekood: WAG-WA210-1P , Tarneaeg: 14-21 päeva

1003,20 € (5%)
1056,00 €
