Tootegrupid
wa100-1web.jpg Zoom

Valamusegisti pikk käepide Wagner Ewar Roostevabast terasest AISI303 poleeritud

Tootekood: WAG-WP100-1P
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 752,33 €
714,72 €
Kuumakse alates: 61,41 €
Kogus: - +

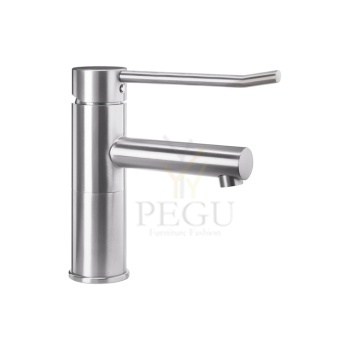

BASIN TAP WA 100-1

Ø 45 x 170 x 185 mm
normal pressure

  • Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
  • Version: normal pressure. Operating pressure 2–6 bar.
  • Solid stainless steel body; visible surfaces satin finished.
    Further available surfaces: see below.
  • High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
  • Neoperl® air bubble spray M21 x 1 mm.
  • Design height: 171 mm
    Outlet height: 87 mm
    Projection: 98 mm
    Length of lever: 140 mm
  • Wear parts can be replaced as modules.
  • Installation dimensions: Ø 33-40 mm
    Surface thickness max. 40 mm
  • Mounting: With one counternut.
  • Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.
  • Weight (in kg): 1,60
AVAILABLE SURFACESORDER NUMBERS
satin finished (standard) 924276
highly polished 931276
Suggested text for specifications:

Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: normal pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

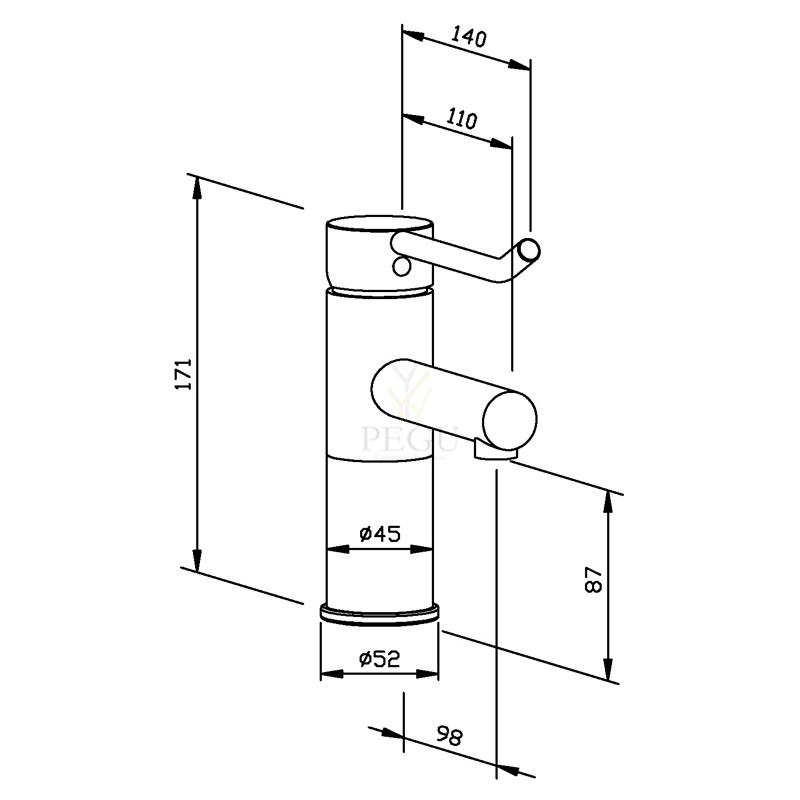

Dimensions: Ø 52 x 171 x 185 mm
Outlet height 87 mm
Projection 98 mm
Length of lever 140 mm

Article No. WA100-1
Kokku sobivad tooted

PERLATOR M22X1 924282

for WA100 - 210
(from 2018)

Ø 19 x 16 mm
0,01 kg

Tootekood: WAG-924282 ,   Tarneaeg: 14-21 päeva
21,25 € (5%)
22,37 €

THREAD PIECE PERLATOR M22X1 923952

for WA100 - 210
(from 2018)

Ø 22 x 19 mm
ca. 18 g

Tootekood: WAG-923952 ,   Tarneaeg: 14-21 päeva
52,16 € (5%)
54,90 €

CARTRIDGE 924260

for WA 100 - 210
Ø 35 x 60 mm

0,05 kg

Tootekood: WAG-924260 ,   Tarneaeg: 14-21 päeva
52,16 € (5%)
54,90 €
