Veekraan eelsegatud veele Delabie TEMPOMAC sensoriga 155mm läbiseina 230V/12V 441157

Tootekood: DE-441157
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
737,90 €
Kuumakse alates: 62,72 €
Kogus: - +

Veekraan eelsegatud veele Delabie TEMPOMAC sensoriga 155mm läbiseina 230V/12V

441157

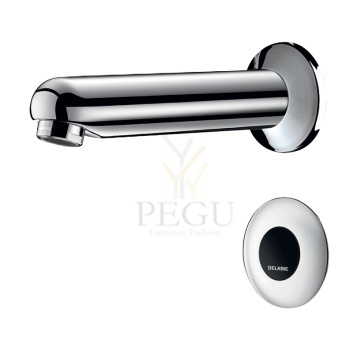

TEMPOMATIC Electronic tap

Ref. 441157

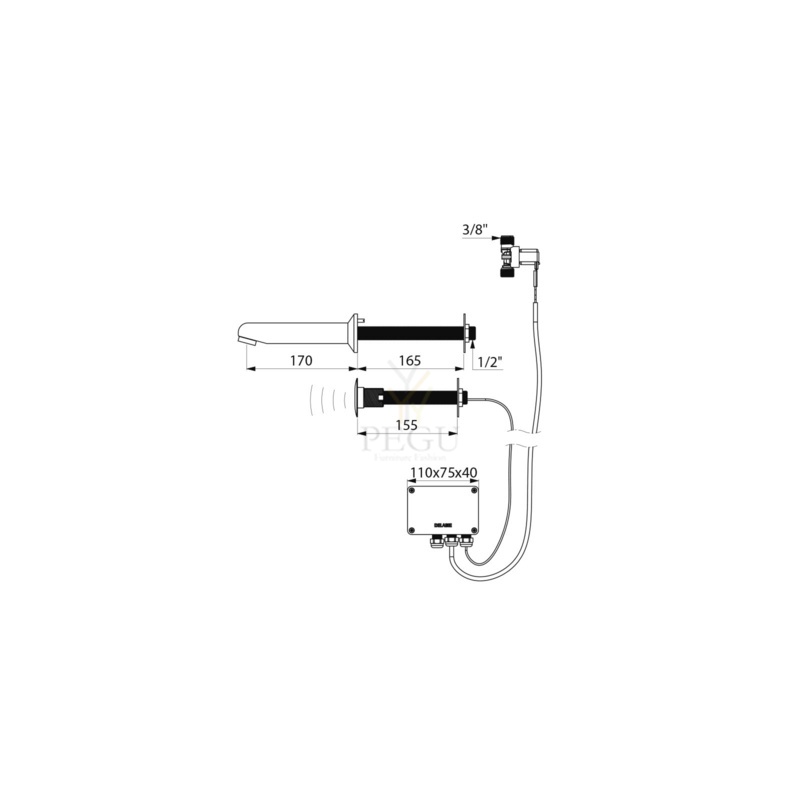

Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Shockproof infrared presence detection sensor for wall ≤ 155mm
Anti-blocking security.
Solenoid valve with integrated filter.
Chrome-plated fixed spout L. 170mm for wall ≤ 165mm with anti-rotating pin.
Threaded rods can be cut-to-size.
Suitable for people with reduced mobility.


TECHNICAL CHARACTERISTICS

TEMPOMATIC Electronic tap

Ref. 441157
Supply 230/12V mains supply
Connector M3/8"
Technology Electronic
Depth 165mm
Spout length 170mm
Flow rate 3 lpm
Sarnased tooted

Põlvekraan kas külma, või eelsegatud veele, isesulgev 390mm PRESTO

31683

15 sek on töötsükkel

Tootekood: P31683 ,   Tarneaeg: 7 päeva ,   Viimistlus:
183,97 €

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita AZP Brno AUS 11


Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
381,15 €

Presto NEO anti-block Isesulgev kraan 1/2" 7 sek 150mm roostevaba teras AISI304L

66225

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds

> Hydraulic supply: G 1/2" x 15 - cold water

> Dimensions : 150mm projection

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker

> Delivered with: 1 Installation manual

> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P66225 ,   Tarneaeg: 14 päeva ,   Viimistlus:
233,77 €

Presto NOVA IR segisti patartei must kroom

55391

> Working pressure : 1 to 5 bar

> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17)
> Power supply : Integrated 6V CRP2 lithium battery
> Material and colour finish : Injected molded metal body and cover Body: Chrome finishing Top cover: Black chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual

> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
Tootekood: P55391 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
765,34 €

Idral Segisti sensoriga serie CURVE 02506,  IP65 230V AC/6V DC kroom

CURVE series wall mounted electronic basin/sink mixer with infrared sensor. 230V mains supply

Technical features



Mechanical mixing with side lever

Swivel spout H=250 mm, projection 200 mm

Infrared sensor with ON/OFF mode

Vandal proof stop after 1 min of continuous flow

Automatic anti-legionella water flow every 24h after last use

External power supply 230V AC/6V DC, protection grade IP65; cable with European plug (C); anti black-out device to ensure the shut off of the tap even in case power cut

6V “Micro“ solenoid valve (internal)

Tootekood: IDR-02506/R ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
903,57 €
