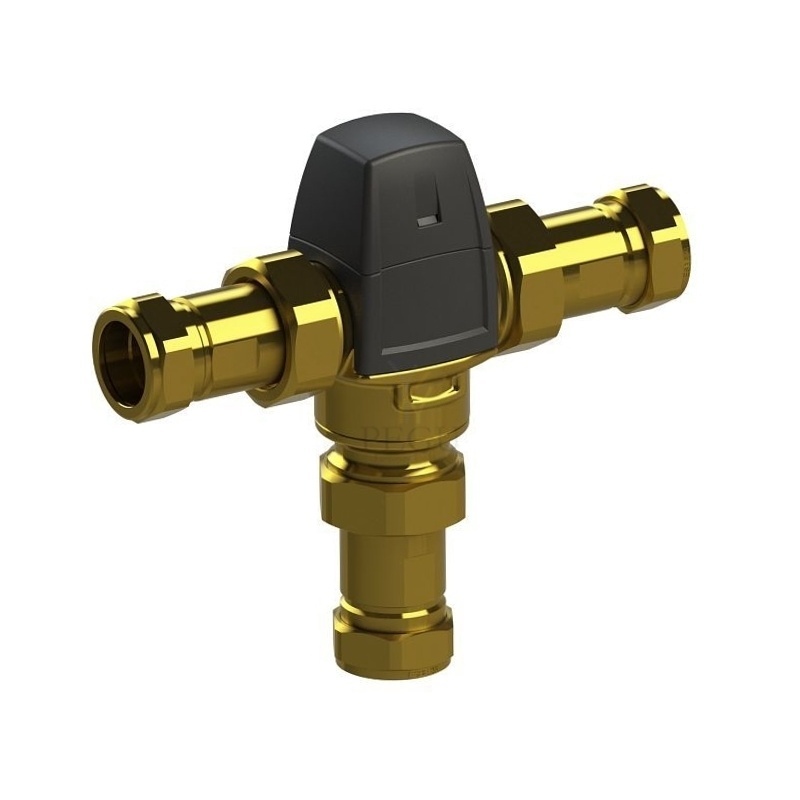

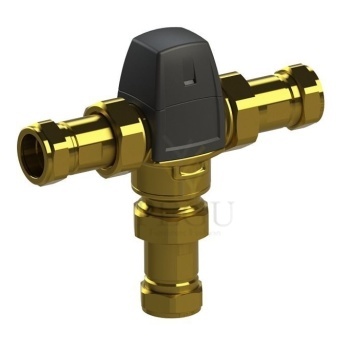

Veesegamissõlm termostaat kehaduššile Broen 17 512 009

Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".

Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".

Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Chrome-plated body, inlets F3/8" and outlet M3/8".

Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M1/2'' inlets and Ø 15mm conical outlets.
