Tootegrupid
Tüsterõngas Vieser 51205.png Zoom

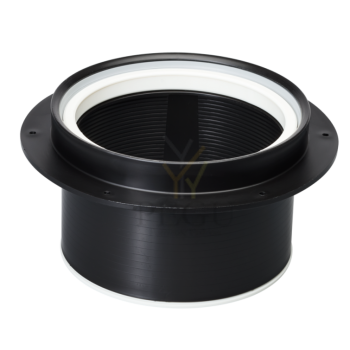

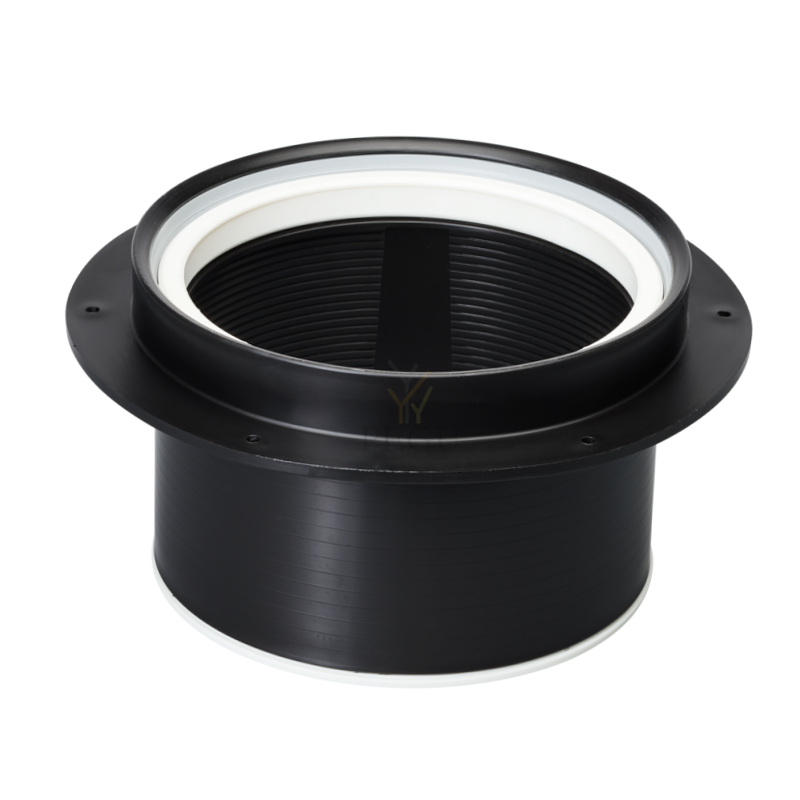

Vieser 51205 Tõsterõngas 25-88mm

Tootekood: AKV51205
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
13,22 €
Kogus: - +

Vieser 51205 Tõsterõngas 25-88mm

Vieser extension ring 25-88mm

HVAC No. 3318415


Compatible with all Vieser floor drains. Installed below the waterproofing.

Raises the floor drain by 25–88 mm.

The package contains the extension ring, a grey lip seal and a white clamping ring.



Video



Sarnased tooted

Vieser One 52601 Horisontaaltrapp 75 3x32/40 tugijalgadega



Vieser One floor drain DN 75 3×32/40 with support legs

HVAC No. 3315931


Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

echnical specifications

Vieser No.
52601
HVAC No.
3315931
EAN
6418685526014
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,6l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52601 ,   Tarneaeg: 3-7 päeva
47,78 €

Vieser One 52630 Vertikaaltrapp 75  3x32/40

Vieser One vertical floor drain DN 75 3×32/40

HVAC No. 3315935


Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.


The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package contains the floor drain,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52630
HVAC No.
3315935
EAN
6418685526304
Package (box/pallet)
15/120
Package dimensions
20 x 25 x 20 cm
Package weight
0,65 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
2,3l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.









Tootekood: AKV52630 ,   Tarneaeg: 3-7 päeva
42,70 €

Vieser 51180 Tõsterõngas 12mm

Vieser low model extension ring 12 mm

HVAC No. 3318951


The package contains the extension ring, a white lip seal,  a grey clamping ring and a white support ring.

Please note:

a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.

The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.

A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.



Tootekood: AKV51180 ,   Tarneaeg: 3-7 päeva
35,58 €

Trapikaas plastraamiga 51256 Vieser Classic 160x160 mm +d32mm

Roostevaba teras

Vieser Classic Ø32 - Stainless steel grating with plastic frame – 160×160




For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51256
HVAC No.
3316153
EAN
6418685512567
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.


Tootekood: AKV51256 ,   Tarneaeg: 3-7 päeva
54,90 €

Vieser 6001190 DOT Accoya vahatatud D600MM ümmargune

Vieser Dot Cover Accoya, Waxed

HVAC No. 3315997
EAN 6430066741663

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Waxed. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.
6001190
HVAC No.
3315997
EAN
6430066741663
Package (box/pallet)
1/10
Package dimensions
66 x 4,5 x 66cm
Package weight
12,5kg
Material
Accoya, Waxed
The size of the wooden lath in the floor drain cover:
32,72mm
The size of the openings in the floor drain cover
4mm
General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Tootekood: AKV6001190 ,   Tarneaeg: 3-7 päeva
1134,60 €
