Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 3-7 päeva
✅ PEGU.ee-s valime ainult seda, mida on meeldiv omada kodus.
Nutikad lahendused, kaunis disain ja tõestatud kvaliteet.
Kui valid meie juurest, valid kindlustunde.

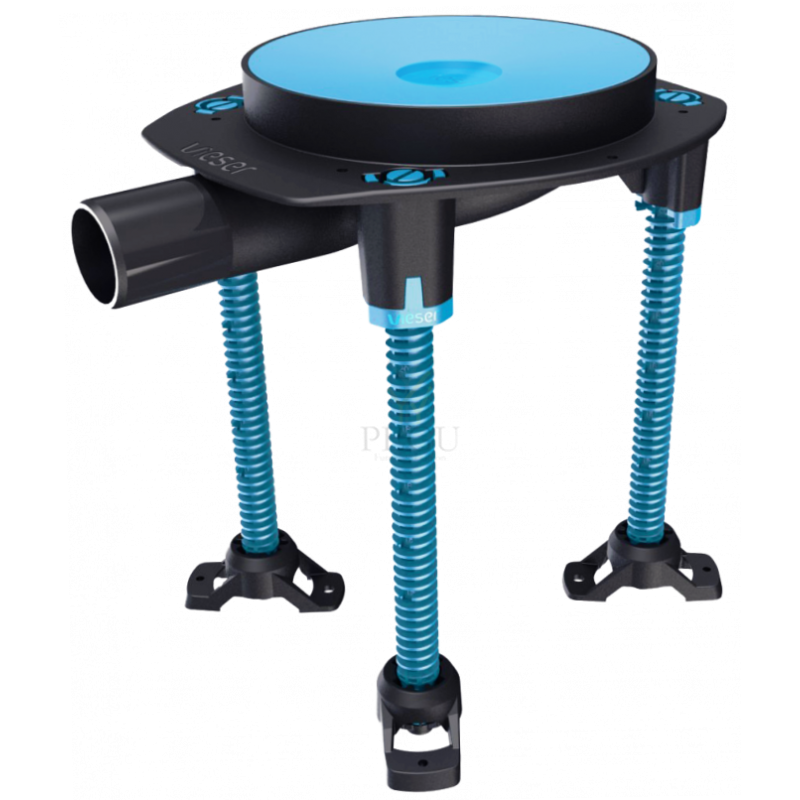

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega
Vieser One untrapped drain DN32/40 with support legs
Suitable for sewerage systems for regular wastewater.
The Vieser One untrapped drain is part of the Vieser floor drain system.
The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.
The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.
Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.
Technical specifications
The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.
Video
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
- Valmistaja: LVI-Pörssi
- Kehyksen ulkomitat: 197 x 197 mm
- Korkeus 4 mm
- Materiaali: ruostumaton teräs (AISI304)
- Väri: teräs
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
- Valmistaja: LVI-Pörssi
- Kehyksen ulkomitat: 197 x 197 mm
- Korkeus 4 mm
- Materiaali: ruostumaton teräs (AISI304)
- Väri: Punainen
Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega
Vieser One horizontal drain DN50 1x32 extra low with support legs
The lowest floor drain on the market 69 mm
The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.
Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.
Water trap based on membrane technology
The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.
The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.
Hygienic and quiet
The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.
The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.
The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:
- Vieser Line (linear floor drain system)
- Vieser Dot (design floor drain system)
- Vieser Square (design floor drain system)
- Vieser Corner (corner floor drain system)
The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.
The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.
Technical specifications
The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.
Vieser 51180 Tõsterõngas 12mm
Vieser low model extension ring 12 mm
The package contains the extension ring, a white lip seal, a grey clamping ring and a white support ring.
Please note:
a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.
The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.
A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.
Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST
Roostavaba teras
Vieser Corner Modern triangular floor drain 376 x 376 x 526
An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
- Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
- Suitable for both new construction and renovations.
- To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
- The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
- The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
- The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
- Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.
Vieser’s drain and cover combination comes with a 10-year system guarantee.
(PDF)Vieser Corner floor drain system - Tiling example
(DWG)Vieser Corner floor drain system - Tiling example
Technical specifications
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
