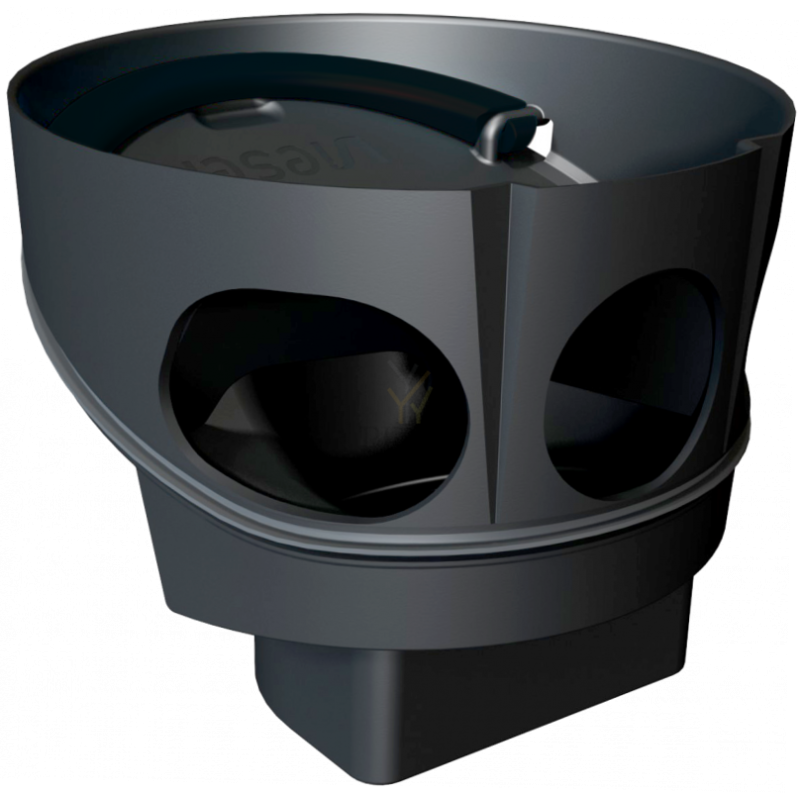

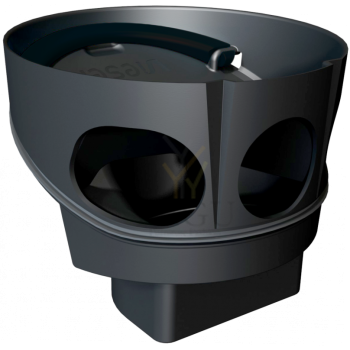

Vieser One 52700 põrandatrapi spetsiaalne vesilukk

Vieser One 52600 Horisontaaltrapp 50 3x32/40 tugijalgadega

Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930

EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52600

HVAC No.

3315930

EAN

6418685526007

Package (box/pallet)

12/96

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9 kg

Material

polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,2l/s

General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52600 , Tarneaeg: 3-7 päeva

48,57 €

Vieser low flow drain 51908 põrandatrapi spetsiaalne vesilukk

Vieser water trap for low floor drains

HVAC No. 3304917

Vieser water trap for low floor drains

HVAC No. 3304917

EAN 6418685519085

Can be installed into any Vieser low model floor drains.

Tootekood: AKV51908 , Tarneaeg: 3-7 päeva

40,30 €

Vieser reguleeritav terasraam 51280 197x197 mm RST

Roostevaba teras

Vieser adjustable stainless steel frame 197 x 197

HVAC No. 3316229

Adjustable stainless steel frame 197×197 mm
Suitable for use with all Vieser 197×197 mm stainless steel gratings
To make tilework installation easier, the frame can be adjusted max 15 mm toeach direction. The complete adjustment range is 30 mm
Professional’s choice

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.

51280

HVAC No.

3316229

EAN

6418685512802

Package (box/pallet)

15/600

Package dimensions

22,5 x 1,5 x 22 cm

Package weight

0,165 kg

Material

Stainless steel (AISI 304)

Usage

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

General information

The package contains an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Tootekood: AKV51280 , Tarneaeg: 3-7 päeva

37,20 €

Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST

Roostavaba teras

Vieser Corner Modern triangular floor drain 376 x 376 x 526

HVAC No. 3317311

An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
Suitable for both new construction and renovations.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example

Technical specifications

Vieser No.

6005080

HVAC No.

3317311

EAN

6430066742790

Package (box/pallet)

12/144

Package dimensions

410 x 410 x 580

Package weight

1,2 kg

Material

Stainless steel (AISI 304)

Durability

200kg

Usage

For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.

General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system

Tootekood: AKV6005080 , Tarneaeg: 3-7 päeva

308,97 €

Vieser 6001188 DOT Accoya õlitatud D600MM ümmargune

Vieser Dot Cover Accoya, Oiled

HVAC No. 3315995

EAN 6430066741649

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Oiled. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:

Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.

6001188

HVAC No.

3315995

EAN

6430066741649

Package (box/pallet)

1/10

Package dimensions

66 x 4,5 x 66cm

Package weight

12,5kg

Material

Accoya, Oiled

The size of the wooden lath in the floor drain cover

32,72mm

The size of the openings in the floor drain cover

4mm

General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:

Tootekood: AKV6001188 , Tarneaeg: 3-7 päeva

1153,20 €
