SECURITHERM dual control thermostatic shower mixer with:
- Anti-scalding failsafe: hot water shuts off immediately if cold water supply fails (and vice versa).
- Securitouch thermal insulation to prevent burns.
- Scale-resistant thermostatic cartridge for temperature adjustment.
- 1/4-turn ceramic head for flow rate adjustment.
- Temperature control: 25 - 41°C.
- Double temperature limiter: first limiter set at 38°C can be overridden, second limiter set at 41°C.
- Thermal shocks are easy to undertake without removing the control knob or shutting off the cold water supply.
- Flow rate regulated at 9 lpm.
- Chrome-plated brass body and ERGO controls.
- M1/2" shower outlet.
- M3/4" inlets with integrated filters and non-return valves.
Mixer supplied with offset M1/2" M3/4" STOP/PURGE connectors, suitable for hospitals.

TECHNICAL FEATURES

SECURITHERM Securitouch thermostatic shower mixer
Ref. H9741

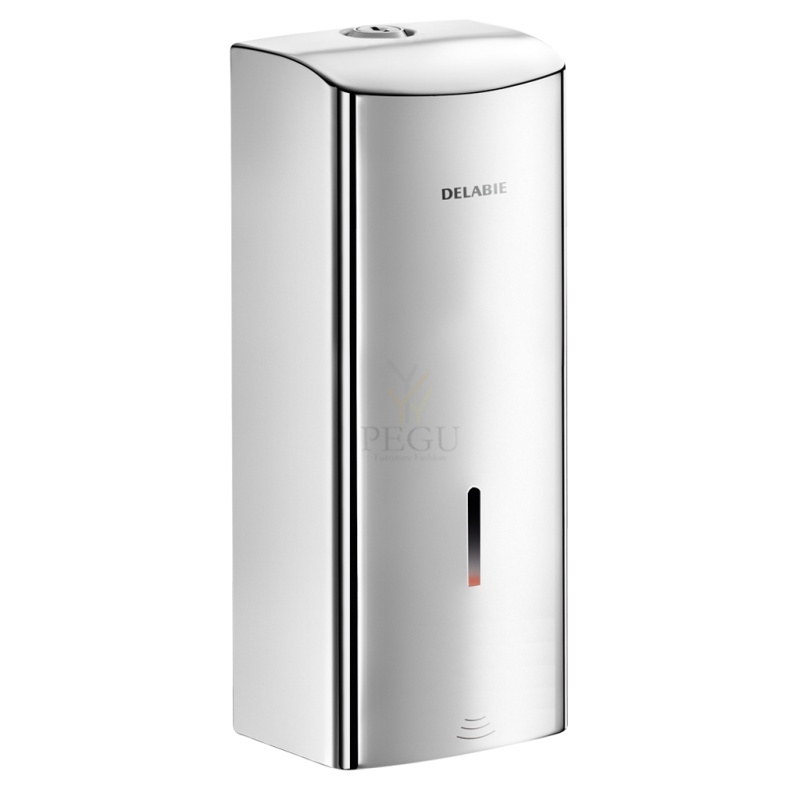

Electronic liquid soap dispenser, wall-mounted.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distancecan be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenanceand better hygiene.
No waste pump dispenser: dispenses 0.8ml(can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Power supply: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: eases transfer of soapfrom large containers.
Window allows soap level to be checked.
Bright polished 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 1 litre.
Dimensions : 90 x 105 x 256mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
