400 x 298 x 120 mm
ca. 500 paper towels / 400 ml foam soap concentrate

• Combination consisting of a foam soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Foam soap dispenser with one-hand operated and non-drip foam soap pump.
• Designed for standard 400 ml foam soap concentrate.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with foam soap concentrate and one pack of paper towels.

Ø 45 x 233 x 107 mm

• Double reserve toilet roll holder, right angled, in solid, germ-reducing and easy-care stainless steel (AISI 303), satin finished.
  Further available surfaces: see below.
• Designed for up to two standard toilet rolls with dimensions:
  Outer diameter max. 125 mm
  Width max. 100 mm
  Core diameter min. 38 mm
• Concealed anti-theft two-point rosette wall mounting.
• Holder diameter 20 mm, length 233 mm.
• Mounting with two screws.
• Delivery includes fixing material.

• Weight (in kg): 0,70

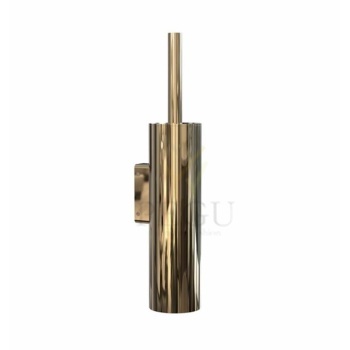

Be-Line® wall-mounted toilet brush set with lid
Ref. 4051C

170 x 235 x 30 mm

• Self-closing, flame-retardant waste deposit flap in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel construction; visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• No wearing parts, smooth closing by counterweight.
• Mounting: Insert and glue into cutout.
• Installation dimensions: 146 x 210 mm

• Weight (in kg): 0,9
