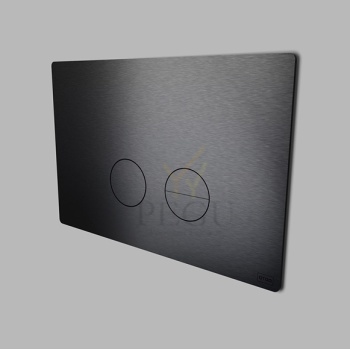

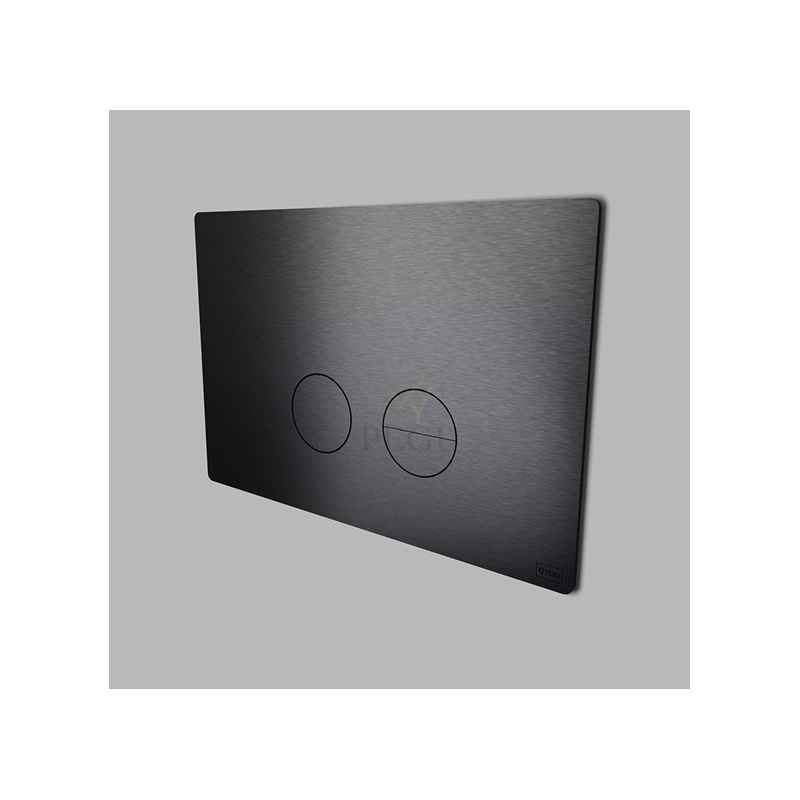

WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD must satiin QF6000MP4
Kaubamärk:
Ühik: tk
Tarneaeg: 8-10 nädala
‼️ Kasuta promokoodi SUVI2026 ostukorvis ja saa soodustust – ainult täna!
▼ Loe edasi: ...
✅ Populaarsed tooted Tallinna laos kohe olemas — tarneaeg 1–3 päeva või tule ise järele.
✅ Kui toode on tellimisel, uuri lähemalt — saame tihti pakkuda oodatust kiiremat tarnet: info@pegu.ee
✅ Kõikidele toodetele garantii 2 aastat ja 14‑päevane tagastusõigus.
✅ Automaatne arve e‑postile. E‑arve soovijatel palume lisada märge kommentaaridesse.
ℹ️ Hind sisaldab käibemaksu.
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD must satiin QF6000MP4
Flushing plate - charcoal look, satin
Joining our Qtoo collection of taps and shower fixtures is our take on the perfect flushing plate for your wall hung cisterns.
Staying true to our design principles ours is crafted in AISI 316 stainless steel. This is not only to uphold our 20-year product warranty, but also to offer our flushing plates in the d line colour palette to mix and match with our other collections and products.
Choose between steel, brass look (pvd), copper look (pvd) and black (pvd) in either satin or polished finish.
Dimensions: 235x155x4mm
Product:
Flushing plate for Geberit flushing mechanism
Tender text:
Qtoo collection, flushing plate for Geberit Sigma 112 flushing mechanism. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protected against high levels of corrosion . 20-year warranty.
Product specification:
Dimensions: 170x255x4mm
Compatible with Geberit Sigma 112
Material: Marine grade AISI 316 stainless steel Minimum wall thickness: 24mm
Video
Failid
WC raam+loputuskast+kõrvale viidud vajutusnupp Presto 18605
WC raam+loputuskast+kõrvale viidud vajutusnupp
18605
1-5 bar
3/6 L
Delabie WC Raam + kontaktivaba infrajuhend Tempofix 3 564005-464000
DESCRIPTION
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000
Please contact the sales office to check availability.
- Black powder-coated steel frame.
- Fixes to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to be glued to waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid walls from 10 - 120mm.
- 10-year warranty.
Fitted with a TEMPOMATIC dual control F¾" electronic direct flush valve:
- 230/6V mains supply (cable and transformer supplied).
- Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button with integrated electronics.
- Waterproof recessing housing.
- Detection delay is 10 seconds.
- Voluntary activation (push-button with anti-blocking) or automatically when the user leaves.
- "Intelligent" automatic rinsing (flush volume adapts according to use).
- 3 programmes (rinsing volume can be set according to type of WC pan).
- Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate adjuster.
- Compatible with sea water and grey water.
Technical characteristics: see TEMPOMATIC dual control ref. 464SBOX-464000.
Kit contents:
(564005): frame system, soil pipe Ø 100mm, flush tube, recessed housing with cover, valve configured for system flush, vacuum breaker, stopcock, connection accessories.
(464000): control plate, transformer, collar for waterproofing, solenoid valve, cartridge.
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000| Supply | Mains supply 230/6V |
| Connector | ¾" |
| Technology | Electronic and time flow |
| Height | 1000 - 1320mm |
| Depth | 177mm |
| Width | 350mm |
| Finish | Satin finish stainless steel |
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask satiin QF6000MP2
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask satiin
Joining our Qtoo collection of taps and shower fixtures is our take on the perfect flushing plate for your wall hung cisterns.
Staying true to our design principles ours is crafted in AISI 316 stainless steel. This is not only to uphold our 20-year product warranty, but also to offer our flushing plates in the d line colour palette to mix and match with our other collections and products.
Choose between steel, brass look (pvd), copper look (pvd) and black (pvd) in either satin or polished finish.
Dimensions: 235x155x4mm
Product:
Flushing plate for Geberit flushing mechanism
Tender text:
Qtoo collection, flushing plate for Geberit Sigma 112 flushing mechanism. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protected against high levels of corrosion . 20-year warranty.
Product specification:
Dimensions: 170x255x4mm
Compatible with Geberit Sigma 112
Material: Marine grade AISI 316 stainless steel Minimum wall thickness: 24mm
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask poleeritud QF6000PP2
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask poleeritud
Joining our Qtoo collection of taps and shower fixtures is our take on the perfect flushing plate for your wall hung cisterns.
Staying true to our design principles ours is crafted in AISI 316 stainless steel. This is not only to uphold our 20-year product warranty, but also to offer our flushing plates in the d line colour palette to mix and match with our other collections and products.
Choose between steel, brass look (pvd), copper look (pvd) and black (pvd) in either satin or polished finish.
Dimensions: 235x155x4mm
Product:
Flushing plate for Geberit flushing mechanism
Tender text:
Qtoo collection, flushing plate for Geberit Sigma 112 flushing mechanism. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protected against high levels of corrosion . 20-year warranty.
Product specification:
Dimensions: 170x255x4mm
Compatible with Geberit Sigma 112
Material: Marine grade AISI 316 stainless steel Minimum wall thickness: 24mm
WC-Raamsüsteem TEMPOFIX 3 elektroonilise WC-loputusklapiga, seinapealsele potile Delabie 547105
Premium-klassi isekandev raamsüsteem avalikesse ja privaatsetesse ruumidesse TEMPOFIX 3 (Ref. 547105) on tipptasemel isekandev raamsüsteem seinapealsetele WC-pottidele, mis on varustatud integreeritud elektroonilise puutevaba otseloputusklapiga TEMPOMATIC F1". Tänu süsteemile, mis ei vaja loputuskasti, ühendatakse seade otse veevärgiga, tagades maksimaalse hügieeni, vandaalikindluse ja ruumi kokkuhoiu. Sobib ideaalselt ka liikumispuudega inimestele (invavajadustega kasutajatele).
Raamsüsteemi eelised:
-
Tugev konstruktsioon: Musta pulbervärviga kaetud terasraam suured tugevad jalad kindlaks kinnitamiseks kandvale põrandale.
-
Paindlik paigaldus: Kõrgus reguleeritav vahemikus 0–200 mm (mugava 1 meetri märgistusega). Sügavus reguleeritav 157–177 mm.
-
Ühilduvus: Sobib seina viimistluskihtidele paksusega 70 kuni 210 mm. Sobib ka ilma loputusservata (rimless) WC-pottidele.
-
Valmis paigalduseks: Tarnitakse eelmonteerituna, mis kiirendab ja lihtsustab paigaldustöid.
Elektroonilise puutevaba klapi TEMPOMATIC eelised:
-
Hügieeniline otseloputus: Puutevaba töö infrapunasensori abil. Kaks aktiveerimisrežiimi: tahtlik (käe hoidmisel ~4 cm kaugusel sensorist) või automaatne (pärast kasutaja lahkumist).
-
Reguleeritav ja säästlik: Loputusaeg on vaikimisi ~7 sekundit (reguleeritav 3–12 sek). Vooluhulk ja tuvastuskaugus on muudetavad. Baasvooluhulk: 1 l/sek (1-baarise dünaamilise rõhu juures).
-
Töökindlus: Toide otse vooluvõrgust (230/12V trafo). Sõltumatu elektroonikaosa kaitseklassiga IP65. Seina tasapinnaga ühtiv löögikindel esipaneel.
-
Mitmekülgsus: Süsteem on ühilduv ka vihmavee kasutamisega.
Tehnilised andmed:
-
Toide: 230/12V vooluvõrk
-
Ühendus: 1"
-
Tehnoloogia: Elektrooniline / infrapunasensor
-
Kõrgus: 1000 - 1320 mm
-
Laius: 350 mm
-
Sügavus: 157 - 177 mm
-
Äravoolutoru: Ø 100 mm ABS veekindla tihendiga (2 asendit)
-
Loputustoru: Ø 32 mm koos Ø 55 mm ühendustihendiga
Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105
- Black powder-coated steel frame.
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- Ø 100mm ABS soil pipe with waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid wall finishes from 70 - 210mm.
Fitted with a TEMPOMATIC F1" electronic direct flush valve:
Flush system without cistern: directly connected to pipework
- Mains supply with 1" solenoid valve.
- 230/12V transformer.
- IP65 independent electronic unit.
- Wall plate flush to the wall.
- Shock-resistant infrared presence detection sensor.
- Voluntary activation (when hand is detected ~4cm in front of the sensor) or automatic flush (when the user leaves).
- Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
- Detection distance and flow rate/volume can be adjusted.
- Base flow rate 1 L/sec at 1 bar dynamic pressure.
- Compatible with rain water.
Technical characteristics: see TEMPOMATIC WC ref. 463150.
Suitbale for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility.
Connector 1"
Technology Electronic
Height 1000 - 1320mm
Depth 157 - 177mm
Width 350mm
