Tootegrupid
Silmadušš Broen.png Zoom

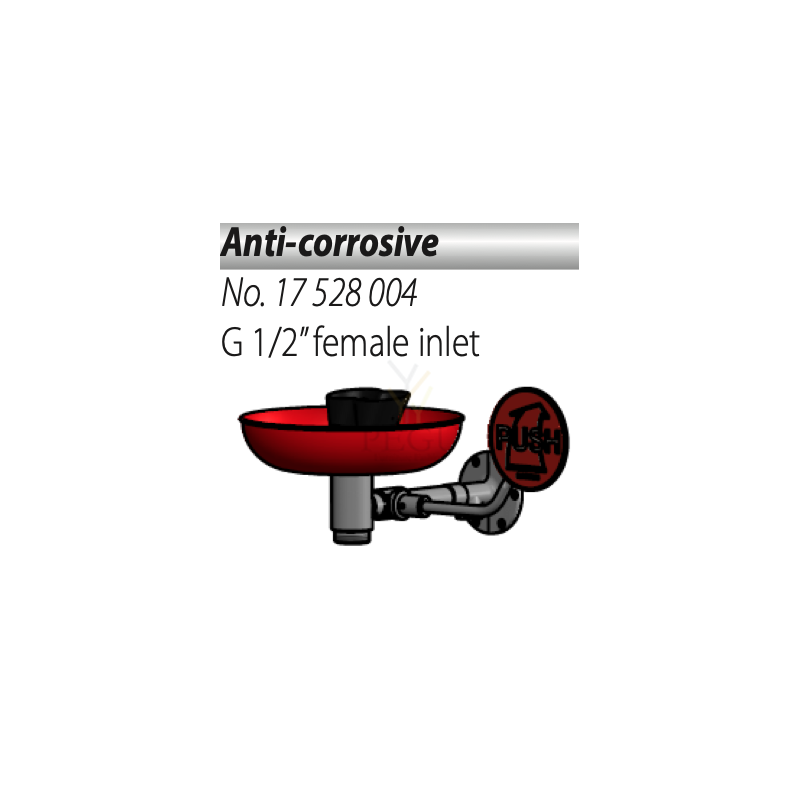

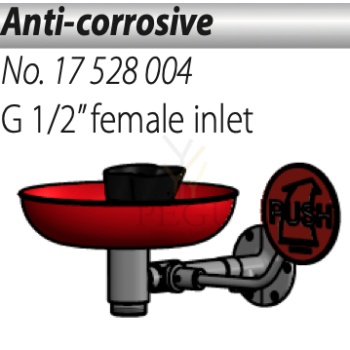

Anti-corrosive hädaabidušš SOS silmadušš 2-ne, seinale kinnituv, valamuga 3/4"

Tootekood: B-17528004
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind: 780,00 €
702,00 €
Kuumakse alates: 59,98 €
Kogus: - +
   - või -

Anti-corrosive hädaabidušš SOS silmadušš 2-ne, seinale kinnituv, valamuga 3/4"

Failid

Sarnased tooted
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
417,00 €

PRODUCT NUMBER 97B0810

FOR WASTE CONNECTION

S P E C I F I C AT I O N S

Temperature range: 0-80°C
Standard colour: black (other colours available on request ) Net weight: 5.4 kg
Dimensions: external 807 x 469 x 330mm (tolerance ± 1mm)

The largest polypropylene sink offered, it is suitable for cleansing of larger items. Very widely used in island benches and teacher benches.

Tootekood: B-97B0810 ,   Tarneaeg: 2-3 nädalad
437,40 € (10%)
486,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350381035-52B ,   Tarneaeg: 2-3 nädalad
518,40 € (10%)
576,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350401035-52B ,   Tarneaeg: 2-3 nädalad
432,00 € (10%)
480,00 €
SOS Dušipost iseseisev Hädaabidušš põrandale, keha+silmad+valamu Disability-Friendly

Nöd-ögondusch för golvmontage

Kombinerad kropps- & ögon/ansiktsdusch för golvmontage.
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.

• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme i rostfritt stål
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 22 kg
• Anslutning: inv. DN25 i toppen eller botten
• Avloppsanslutning: inv. 1”


Artikelnummer: 17 957009

Tootekood: B-17657009 ,   Tarneaeg: 3-4 nädalad
3094,20 € (10%)
3438,00 €
