Automaatne trummel voolikuga ja pihustiga L. 15m. Maksimaalne temperatuur 70°C

Tootekood: DE-5675T2
Kaubamärk:
Ühik: kompl
Tarneaeg: 14-21 päeva
Hind:
2382,00 €
Kogus: - +
   - või -

DESCRIPTION

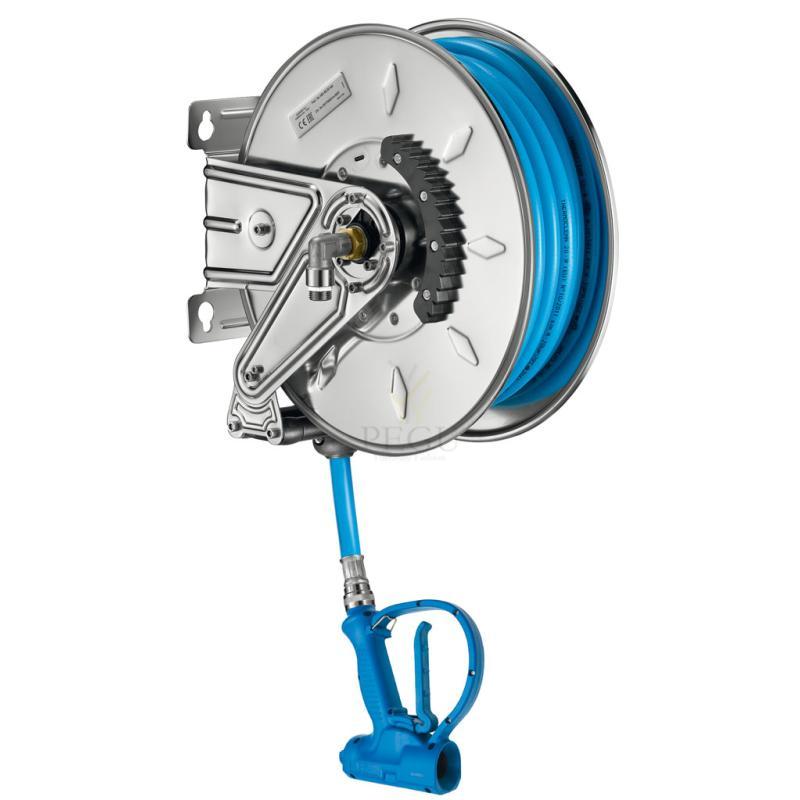

Auto-rewind 304 stainless steel hose reel - Ref. 5675T2

FOR CLEANING FLOORS AND WORK SURFACES

Auto-rewind hose reel with flexible hose L. 15m and guide rollers: Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray. 304 Stainless steel base and drum Ø 390mm.

Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.

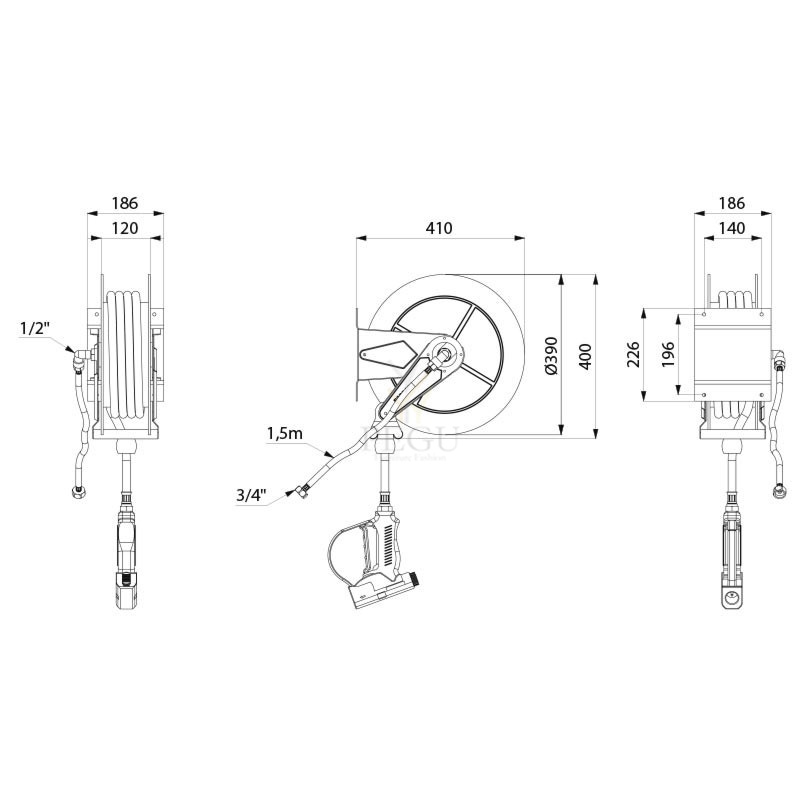

TECHNICAL FEATURES

Auto-rewind 304 stainless steel hose reel
Ref. 5675T2



Connector 3/4"
Height 400mm
Depth 410mm
Length 186mm
Flow rate 14 lpm
Finish 304 Stainless steel


Failid

KIRJELDUS

Põranda ja tööpinda puhastamiseks
304 roostevabast terasest voolikurulli automaatne tagasikerimine - Ref. 5675T2 Automaatne tagasikerimine voolikuga painduva voolikuga L. 15m ja juhtrullid: Maksimaalne temperatuur 70 ° C. Voolukiirus 23 lpm 3 baari juures. Maksimaalne rõhk 20 baari, 12 baari käsipihustiga. 304 Roostevabast terasest alus ja trummel Ø 390mm. Eraldi tellida: integreeritud tolmuimejaga nurga all olev sulgur, mis takistab saastunud vee tagasivoolu vooluvõrku.
Sarnased tooted
Tootekood: P70553 ,   Tarneaeg: 7 päeva-14 päeva
909,15 € (5%)
957,00 €
Tootekood: P70555 ,   Tarneaeg: 7 päeva-14 päeva
828,00 €
Tootekood: P70574 ,   Tarneaeg: 7 päeva
47,70 € (10%)
53,00 €

Нержавеющая большегрузная двойная мойка на ножках, 1200 x 700 x 850 мм



Характеристики

  • stainless steel bulk double-sink with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • possibility to order inner sinks in dimensions: 400 x 300 x 200 mm/ 400 x 400 x 250 mm/ 400 x 400 x 200 mm
  • available also in the length 1400 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Арт. № 93160
Название SLUN 16
Tootekood: SA-SLUN16 ,   Tarneaeg: 3-5 nädalad
1405,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €
