Broen hädaabidušš 2-le silmadele , silmadušš, lääbiviik R/V Teras
Kaubamärk:
Ühik: kompl
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Min. working pressure: 1.5 bar for all Eye Showers
Failid
Kombinerad kropps- & ögon/ansiktsdusch för golvmontage, utrustad med självdränerande duschsil för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen i rostfritt stål gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Självdränerande kroppsdusch med effektiv spolbild
• Ögondusch med FLOWFIX 26 l/min, stadig spolbild i varierande tryck • POLYCOAT lackerad rörstomme i rostfritt stål
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 15 kg • Anslutning: inv. DN25 i toppen eller botten (min. 1,5 bar)
AISI 304 anticorroseive

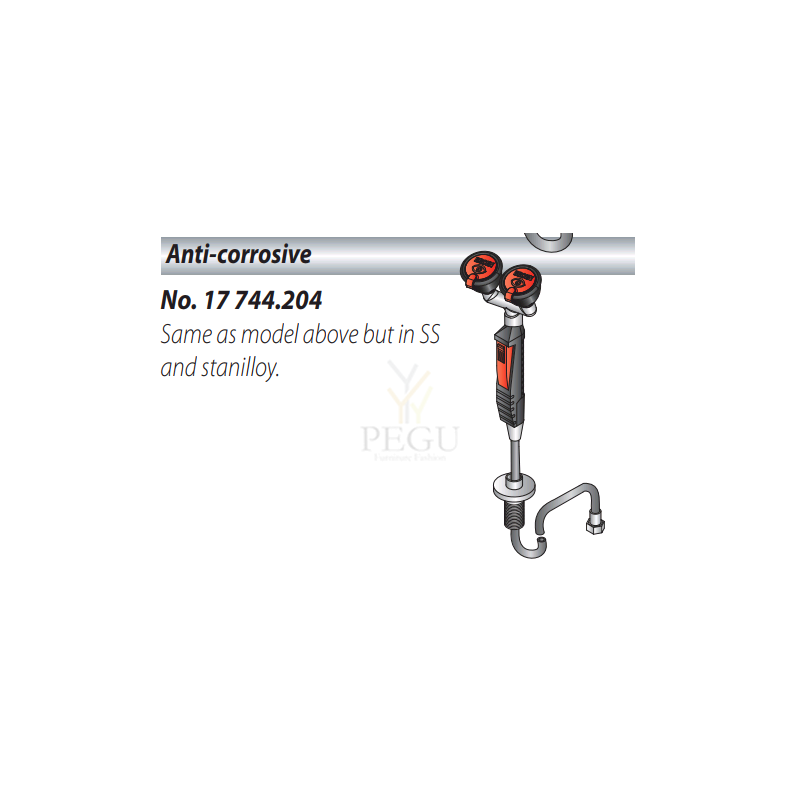

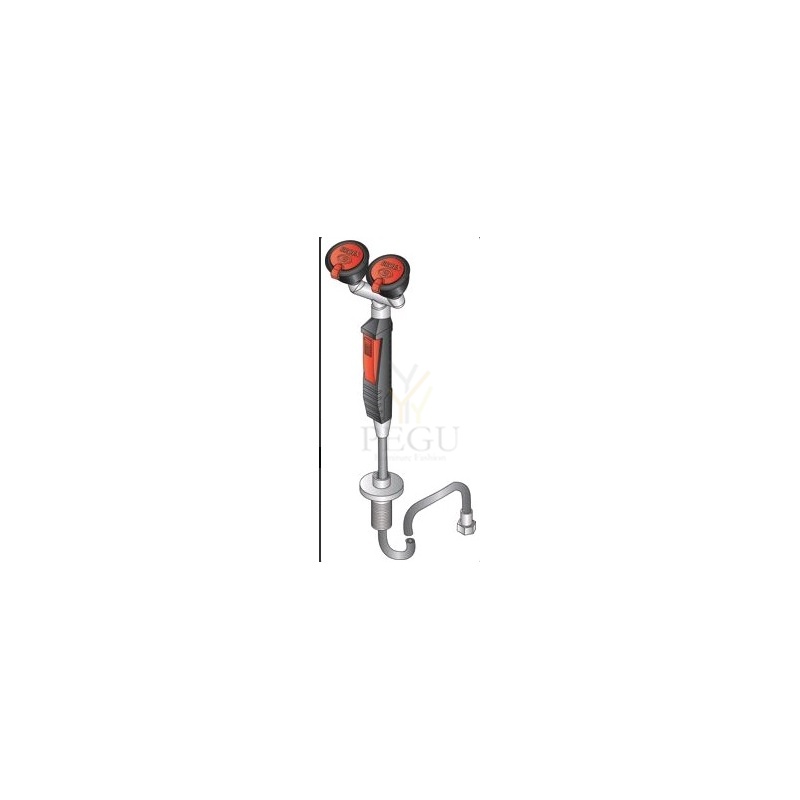

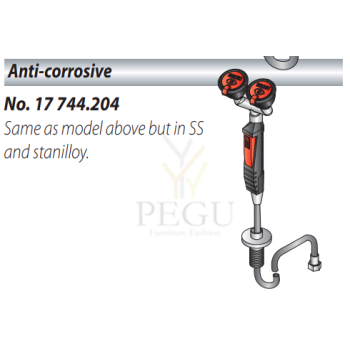

Wall mounted double eye wash
Wall mounted eye shower with a two 45° angled heads, incl. 1.5m inlet hose.
Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).
Description
Wall Mount Double Eye Wash
SAFETY
Improved trigger lock
Improved activation of the shower
OPERATION
Stay-open dust cap
Light weight
Well-balanced construction
Better spray pattern
RELIABILITY
Easy-to-clean spray head
Anti-limescale design and material choice
Improved functionality
Longer lifetime
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
| Supply | F1" |
|---|---|
| Height | 2207mm |
| Length | 660mm |
| Drop height | 2115mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
SOS Hädaabidušši Tester Trolley for Emergency Showers pumpaga
BROEN-LAB tester Trolley aitab kiirendada ja lihtsustada igakuiseid hädaolukorra dušide jõudluskontrolli. See võimaldab mahtvoolu, juga kõrgust ja vee kvaliteedi kontrollimist teostada kiiresti ja hügieeniliselt vaid ühe inimese poolt. Tulemuseks on see, et katsetamine on võimalik kiiresti ja tõhusalt saavutada ilma ämbrite käsitsemise ja valamise koristamiseta.
Praktilisel kaubanduskärul on tugev lehter, et tagada isegi tilkade valamise vältimine. See on kergesti reguleeritav ja saab tõstetud maksimaalse kõrguseni 2,3 meetrit. Tänu võimsale pumbale saab suure mahutavusega kaubanduskäru tühjendada mõne sekundiga.
Käru kompaktne disain teeb sellest ideaalse valiku vastavalt DIN EN 15154-1 ja ANSI Z358.1 nõuetele kontrollide läbiviimiseks.
Kaal: 27 kg
Alus: 2 fikseeritud rattad, 2 lukustatavat pöördraami
Voolik: 1,5 m pumba voolik
Mahutavus (liitrites): 90
Pumba tüüp: Kõrgjõudlusega pump (tühjeneb umbes 2 minutiga)
Kraan: Madala tasemega kraan gravitatsiooniliseks tühjendamiseks
Materjal, paak: Tugev polüetüleenplastikust paak
Materjal, raam: Pulbervärvitud alumiiniumraam
Materjal, toru: Teleskoopiline toru: anodeeritud alumiinium
Materjal, lehtri: Polükarbonaadi lehtri
