SOS termostaat Silmaduši jaoks , seina kinnitus 1/2"
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 3-4 nädalad
Müüja: PEGU OÜ

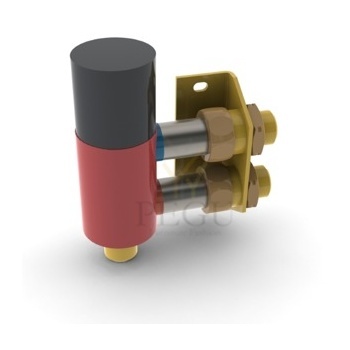

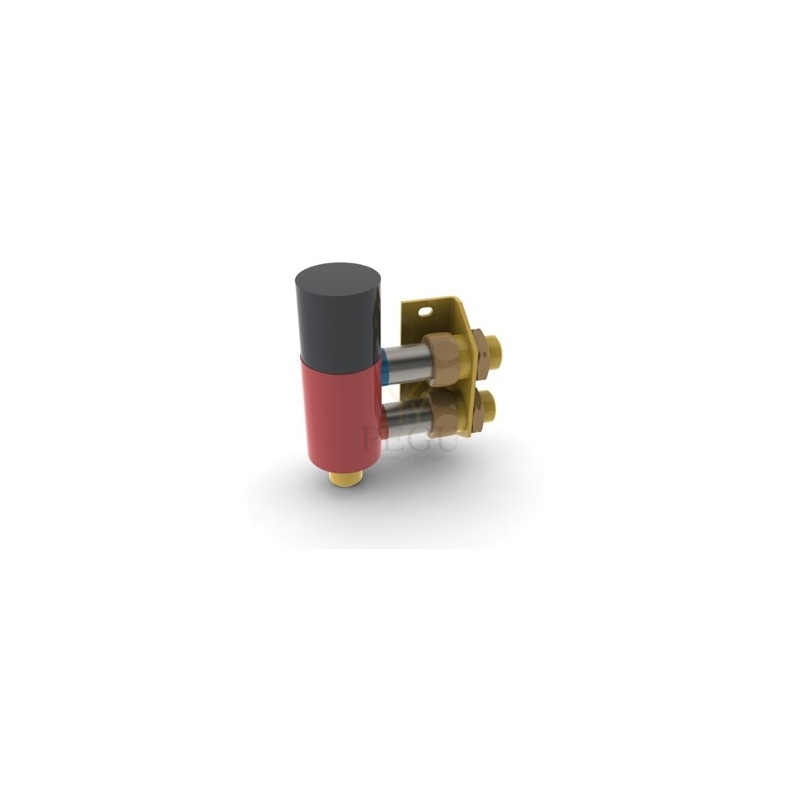

Termostatisk skyddsblandare, med väggfäste, för ögondusch.
Kompenserar för temperatursvängningar i systemet.
•Stänger av varmvattnet vid ett kallvattenbortfall
•Släpper igenom tillgängligt kallvatten vid bortfall av varmvatten
•Material: Mässing
•Ytbehandling: BROEN POLYCOAT
•Max kapacitet: Ca 30 lit/min
•Vikt: Ca. 1,5 kg
•Anslutning: Utv. DN15
Artikelnummer: 17 140 039
•Tillbehör: Väggfäste 2610046 till skyddsblandare
komplett med vinkelballofix. Utv. anslutning DN15
Failid
Nöd- & ögon/ansiktsdusch med väggfäste. Rör och kopplingar i rostfritt stål och STANILOY som står emot korrosion och kemikalier m.m.
• Kroppsdusch med effektiv spolbild
• Ögondusch med FLOWFIX 26 l/min, stadig spolbild i varierande tryck
• Rostfritt stål och STANILOY
• Inkl. 3-sidig skylt monterad på dragstång, dekal & testkort
• Inkl. vajer-kit för krypande aktivering (ej på bild)
• Vikt: ca. 11kg • Anslutning: inv. 1” i toppen eller botten (min.1,5 bar)
SOS dušš, seinale kinnituv 3/4"
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
| Supply | F1" |
|---|---|
| Height | 2207mm |
| Length | 660mm |
| Drop height | 2115mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
Termostaatsegisti silmadušile 27030071035 Broen-LAB
Termostaatsegisti silmadušile
Tootekood: 27030071035
Termostaatsegisti on spetsiaalselt loodud silmaduššidele koos kinnitusega, tagades täpse ja stabiilse vee temperatuuri reguleerimise. Termostaatsegisti hoiab vee temperatuuri püsivalt 22 °C juures, vältides soovimatuid temperatuurikõikumisi ning tagades ohutuse ja mugavuse.
Tehnilised andmed:
- Materjal: Messing, kumm, plastik
- Värvus: Punane, must
- Min. töörõhk: 1 bar
- Max. töörõhk: 10 bar
- Veesisend: Väliskeere G1/2”
- Väljund: Väliskeere G1/2”
- Standardid ja sertifikaadid:
- EN 15154
- ANSI Z358.1
