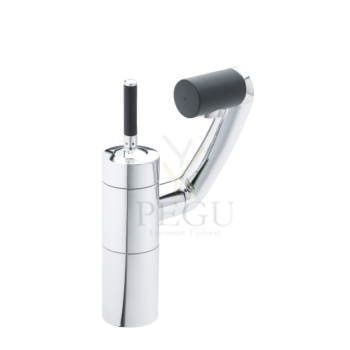

Külma või eelsegatud vee kraan F-150MM Broen Lab

Tootekood: B-25340011001-52B , Tarneaeg: 3-7 päeva

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- fixed spout

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

- WPH (Water Potable Hot)

- WNH (Water Non-Potable Hot)

156,60 € (-10%) 174,00 €

Soodus

Delabie DOC M Basic dušhi või riietusruumi komplekt valge pulber värv

Tootekood: DE-510827MW , Tarneaeg: 14-21 päeva

Basic shower or changing room pack
Ref. 510827MW

DOC M Basic shower or changing room pack.
1 lift-up shower seat with leg, 650 x 420mm. Seat height: 480mm.
1 backrest, depth 125mm.
2 drop-down support rails, length 760mm.
3 grab bars, length 600mm.
Grab bars and shower seat: white powder-coated aluminium.
Drop-down support rails: white powder-coated stainless steel.
Tested to over 200kg. Maximum recommended user weight 135kg.

CE marked.
DOC M compliant.

TECHNICAL FEATURES

Basic shower or changing room pack
Ref. 510827MW

Depth	Backrest: 125mm; Shower seat: 650mm
Length	Grab bars: 600mm; Drop-down support bars: 760mm
Finish	White epoxy coated aluminium or stainless steel

902,50 € (-5%) 950,00 €

Soodus

Dushi invatugi vasak 900x900x 1150mm koos dushi hoidikuga R-V teras

Tootekood: BF640 640 100 , Tarneaeg: 14-21 päeva

Shower grab rail with shower riser and shower head holder in robust, germ-reducing and easy-care stainless steel (AISI 304), satin finished.
Further available surfaces: see below.
Outer diameter of tubes 32 mm for ergonomic hold, clearance from wall 106 mm, bend radii 75 mm.
Shower head holder in nylon continuously height-adjustable and rotatable.
Wall mountings with 8-point mounting plate – can be freely rotated, 4 mm thick with 2K-wall sealing-disc.
Supports weight up to 125 kg.
Concealed fixings 75 mm in diameter, anti-theft, with silicone sealing ring at tube joint.
TÜV-certified in accordance with DIN EN 12182,
CE-marked in accordance with 93/42 EEC.
Mounting: With 15 screws.
Delivery includes fixing material.
