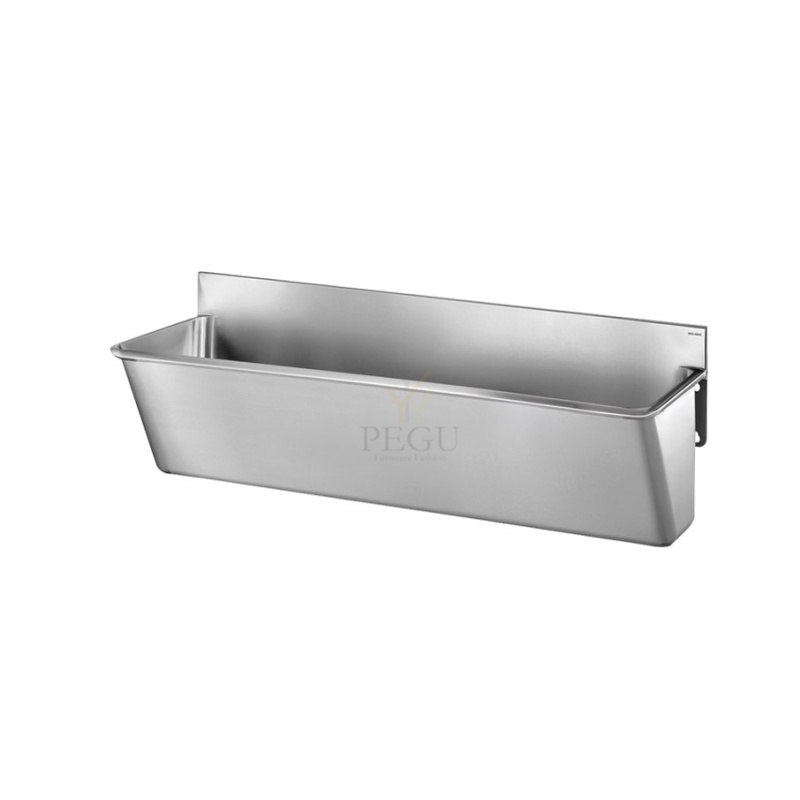

Kirurgia valamu 1400mm 2 kohta_1820202.jpg Zoom

Delabie 2-kohaline kirurgi valamu madala tagaseinaga. RST AISI 304 L 1400mm

Tootekood: DE-182020
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Hind:
2946,00 €
Kuumakse alates: 250,41 €
Kogus: - +
   - või -
Kirurgiline puhastusrenn madala pritsmetega

Ref. 182020

Seinale paigaldatav kirurgiline puhastusrenn 100 mm pritsmetega.
Sobib haiglate ja tervishoiuasutuste jaoks.
Roostevaba teras bakteriostaatiline 304. Poleeritud satiinviimistlus. Roostevabast terasest paksus: 1,2 mm.
L. 1400mm, 2 teenust. Ilma kraanaauguta.
Sile pind ja ümardatud siseservad lihtsaks puhastamiseks.
Drenaaž paremal. Ilma ülevooluta. Kaasas kinnitusdetailid.
Kaal: 18,8 kg.

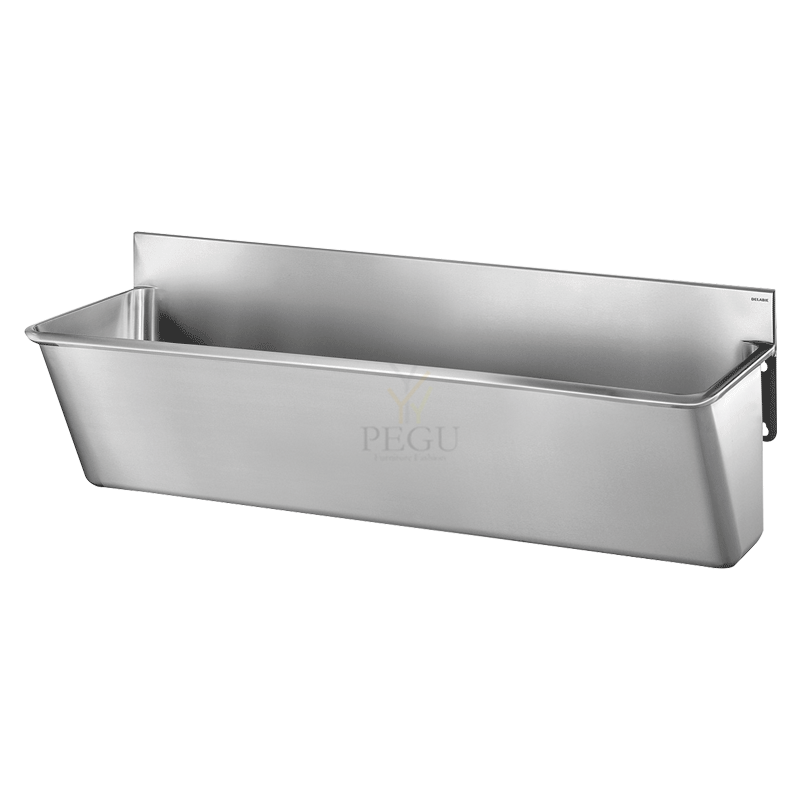

Surgical scrub up trough with low splashback

Ref. 182020

Wall-mounted surgical scrub up trough with splashback 100mm.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 1,400mm, 2 services. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 18.8kg.

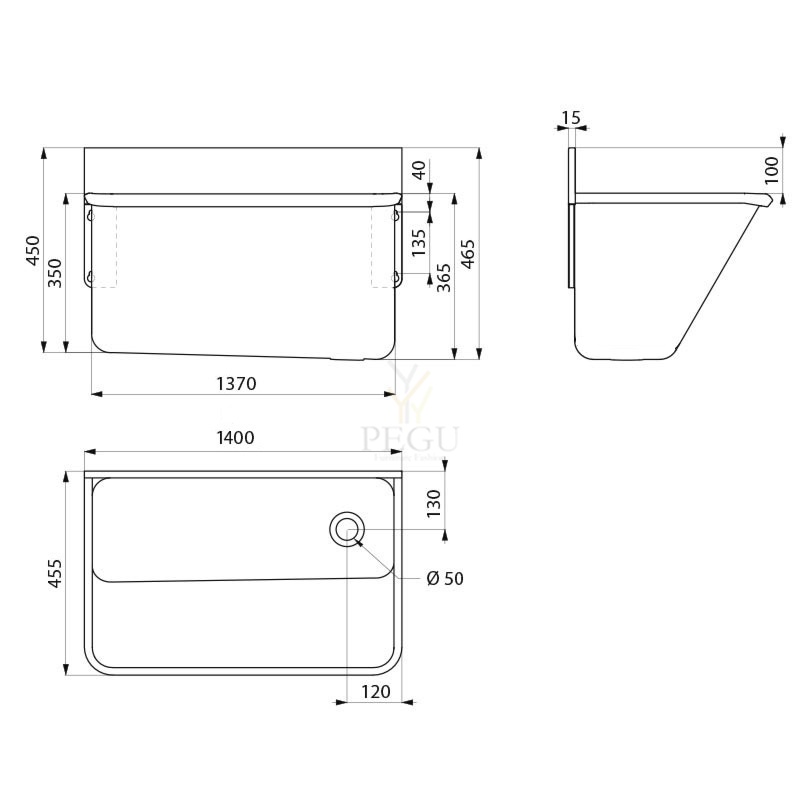

TECHNICAL CHARACTERISTICS

Surgical scrub up trough with low splashback

Ref. 182020
Height 465mm
Length 455mm
Width 1400mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Хирургическая скраб-корыто с низким фартуком

Ref. 182020

Настенный хирургический корыто с фартуком 100 мм.
Подходит для больниц и медицинских учреждений.
Бактериостатическая нержавеющая сталь 304. Полированная атласная отделка. Толщина нержавеющей стали: 1,2 мм.
Л. 1400мм, 2 серв. Без отверстия под смеситель.
Гладкая поверхность и закругленные внутренние края для легкой очистки.
Дренаж справа. Без перелива. Поставляется с крепежными элементами.
Вес: 18,8 кг.
Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

Intra ICON valamu IC1 harjatud, alt paigaldamiseks

General

Size (mm): 525 x 334 x 97
Large bowl (mm): 500 x 310 x 83
Designer: Halvor Thorsen





Description

Icon hand wash basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste. Without overflow.

Brushed finish.

Tootekood: I-IC1 32N ,   Tarneaeg: 14-21 päeva
439,00 €
 Roostevaba teras valamu KEG

Characteristics

  • stainless steel wall hung washbasin
  • with a tap hole
  • material AISI - 304
  • brushed finish
Tootekood: SA-SLUN77A ,   Tarneaeg: 14-21 päeva
1179,00 €

Kirurgiline valamu kõrge pritsmekaitsega pesurenn 1400mm roostevaba teras satiin AISI304

Tootekood: 186000
Viimistlus: Poleeritud satiin 304 roostevaba teras – 2 töökoha jaoks – "Hygiene+" disain

Kirjeldus

Seinapealne kirurgiline valamu, millel on 450 mm kõrgune pritsmekaitse. Sobib kasutamiseks haiglates ja tervishoiuasutustes.

Valmistatud bakteriostaatilisest 304 roostevabast terasest. Poleeritud satiinviimistlus ja 1,4 mm terase paksus. Valamu on 1400 mm pikk, mõeldud ühele töökoha jaoks, ilma kraaniavata.

  • Sile pind ja ümarad sisemised servad lihtsaks puhastamiseks.
  • "Hygiene+" disain: vähendab bakterite tekkekohti, varjatud äravool ja lihtne hooldus.
  • Äravool paremal küljel.
  • Ilma ülevooluta.
  • Komplektis kinnituselemendid ja 1"1/4 äravool.

Vastab CE-märgistusele ja normile EN 14296.

Kaal: 34,4 kg


Tehnilised omadused

  • Kõrgus: 1020 mm
  • Pikkus: 1400 mm
  • Laius: 475 mm
  • Materjal: Bakteriostaatiline 304 roostevaba teras
  • Paksus: 1,2 mm
  • Viimistlus: Poleeritud satiin

Sobib kaasaegsete tervishoiuasutuste kõrgetele hügieenistandarditele!

Surgical scrub-up trough with high upstand
Ref. 186000

Wall-mounted surgical scrub-up trough with 450mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 1,400mm, 2 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
"Hygiene+" design: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow.
Supplied with fixing elements.Weight: 34.4kg.

Tootekood: DE-186000 ,   Tarneaeg: 14-21 päeva
3721,00 €

Delabie KOMPACT TC WC+valamu vasakul põranda antivandaalne R/V teras AISI304

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600

Combination unit: washbasin and floor-standing WC pan on right sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130006]



Technical features

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Tootekood: DE-166600 ,   Tarneaeg: 4-6 nädalad
4172,00 €
