Delabie Be-line kinnituse kohta ilukate eemaldatav matt valge (ilma istme kinnituseta)
Kaubamärk:

Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
SUVI2022 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!
Description

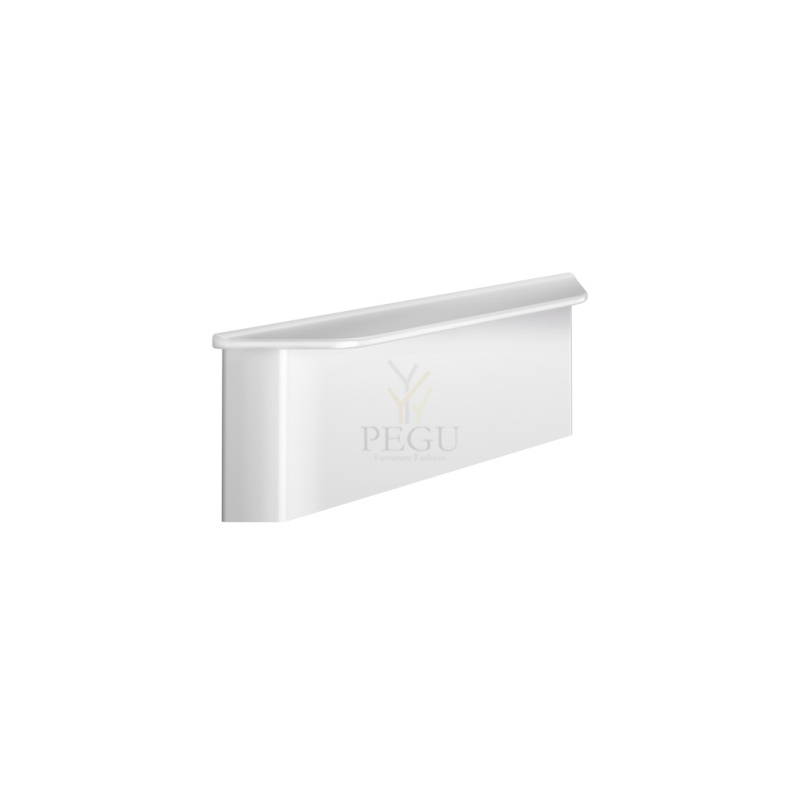

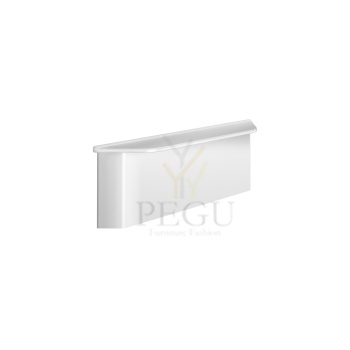

Wall-mounted shelf to conceal fixings in showers
Ref. 511921W
Matte white, wall-mounted shelf to conceal fixings without mounting bracket for Be-Line shower seats.
Conceals the mounting bracket when the lift-up shower seat is removed.
Reduces the number of lift-up shower seats in a facility, allowing installation only when required. E.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Dimensions: 55 x 275 x 90mm.
Technical features
Wall-mounted shelf to conceal fixings in showers
Ref. 511921W
Height | 90mm |
---|---|
Depth | 55mm |
Width | 275mm |
Finish | Matte white |
Failid
satiin R/V teras
144,00 €
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
Height | 210mm |
---|---|
Length | 650mm |
Width | 120mm |
Finish | Powder-coated metallised anthracite aluminium |
Description
Be-Line® anthracite straight grab bar Ø 35mm, L. 300mm
Ref. 511903C
Be-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® anthracite straight grab bar Ø 35mm, L. 300mm
Ref. 511903C
Length | 300mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Be-Line® straight grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall:minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Length | 300mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
Shower riser rail with EP mechanical mixer
Ref. 2239EPSKIT
• Wall-mounted shower kit.
Ø 40mm ceramic cartridge with pressure-balancing (EP) and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Constant temperature regardless of pressure or flow rate variations.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with 2 offset standard wall connectors M1/2" M3/4".
Filters and non-return valves
• Chrome-plated sliding shower head (ref. 811) on a chrome-plated riser rail (ref. 820) with soap dish and flexible hose (ref. 834T1).
Suitable for people with reduced mobility.
TECHNICAL CHARACTERISTICS
Shower riser rail with EP mechanical mixer
Ref. 2239EPSKIT
Connector | M1/2" |
Technology | SECURITHERM EP |
Width | 175mm |
Flow rate | 9 lpm |
Temperature limiter | 39°C |
Finish | Chrome-plated brass |
342,00 €
