Delabie hädaabidušš silmadele 9102

Tootekood: DE-9102
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
680,00 €
Kuumakse alates: 57,80 €
Kogus: - +
   - või -

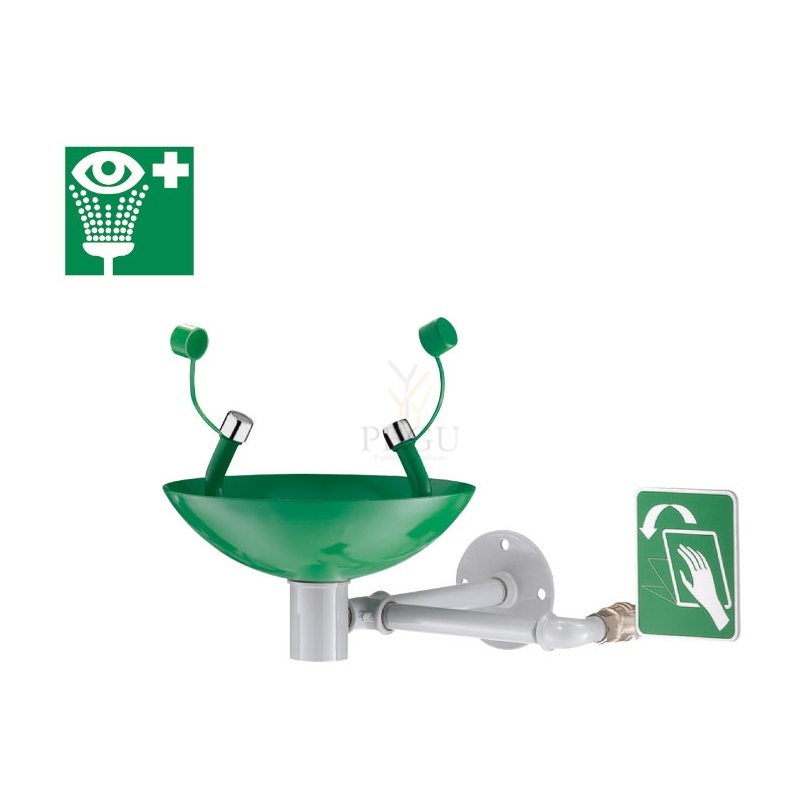

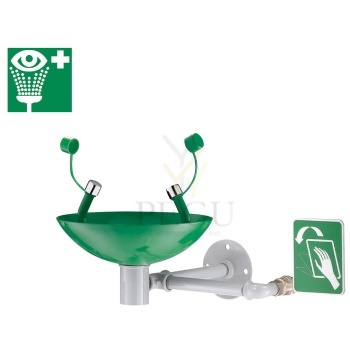

Wall-mounted eye wash station
Ref. 9102

Wall-mounted eye wash station with manual control includes:
304 stainless steel basin Ø 250mm, green powder-coated finish.
Two spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flow is activated by the hand control. The eye wash will continue to operate when the hand control is released. The water flow will stop when the hand control is pulled towards the user.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply M1/2".
Pipework made from galvanised steel, grey powder-coated finish.
Hand control made from galvanised steel, green powder-coated finish.
Wall-mounted on a brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash"

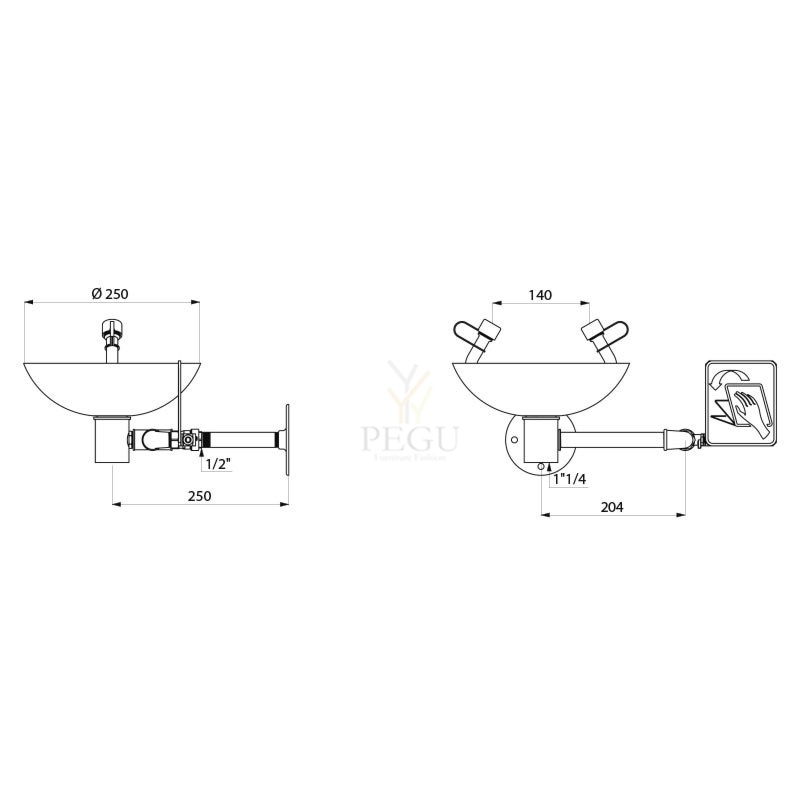

TECHNICAL FEATURES

Wall-mounted eye wash station
Ref. 9102

Supply M1/2"
Height 195mm
Flow rate 20 lpm
Width to the wall 204mm
Finish Epoxy
Sarnased tooted
Handikappanpassad nöd-ögondusch

Kombinerad kropps- & ögon/ansiktsdusch med skål för golvmontage.
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen i rostfritt stål gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.

• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Anpassaade mått för rullstolsburen användare
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme i rostfritt stål
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 22 kg
• Anslutning: inv. DN25 i toppen eller botten
• Avloppsanslutning: inv. 1”


Artikelnummer: 17 957 009

Tootekood: B-17957009 ,   Tarneaeg: 3-4 nädalad
3669,00 €

Nöd- & ögon/ansiktsdusch med väggfäste. Rör och kopplingar i rostfritt stål och STANILOY som står emot korrosion och kemikalier m.m.

• Kroppsdusch med effektiv spolbild

• Ögondusch med FLOWFIX 26 l/min, stadig spolbild i varierande tryck

• Rostfritt stål och STANILOY

• Inkl. 3-sidig skylt monterad på dragstång, dekal & testkort

• Inkl. vajer-kit för krypande aktivering (ej på bild)

• Vikt: ca. 11kg • Anslutning: inv. 1” i toppen eller botten (min.1,5 bar)



Body and eye shower, wall mounted, modular. In brass and SS
with chemical resistant red BROEN Polycoat. Body shower has
self-draining shower head. Water inlet at the top or bottom. Eye
shower has built-in FLOWFIX (26 l/min).
Min. working pressure: 1.5 bar.
Tootekood: B-17964004 ,   Tarneaeg: 3-4 nädalad
3025,00 €

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-27100091005011 ,   Tarneaeg: 14-21 päeva
489,00 €

Wall-mounted safety shower
Ref. 9108

Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).

TECHNICAL FEATURES

Wall-mounted safety shower
Ref. 9108

Supply F1"
Height 450mm
Length 625mm
Flow rate 120 lpm at 3 bar dynamic pressure
Finish Epoxy
Tootekood: DE-9108 ,   Tarneaeg: 14-21 päeva
345,00 €

Free-standing eye wash station
Ref. 9201

Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

TECHNICAL FEATURES

Free-standing eye wash station
Ref. 9201

Height 1050mm
Depth 500mm
Flow rate 20 lpm
Finish Epoxy
Tootekood: DE-9201 ,   Tarneaeg: 14-21 päeva
1105,00 €
