Delabie kirurgiia valamu_182000_1.jpg Zoom

Delabie kahekohaline kirurgi valamu kõrgema tagaseinaga. RST AISI 304 L 1400mm

Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Hind:
3100,00 €
Kuumakse alates: 263,50 €
Kogus: - +
   - või -

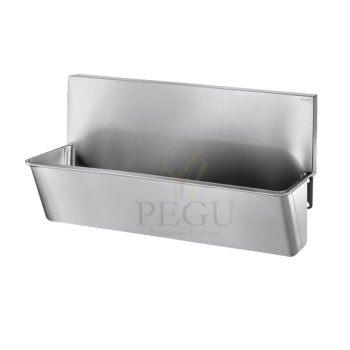

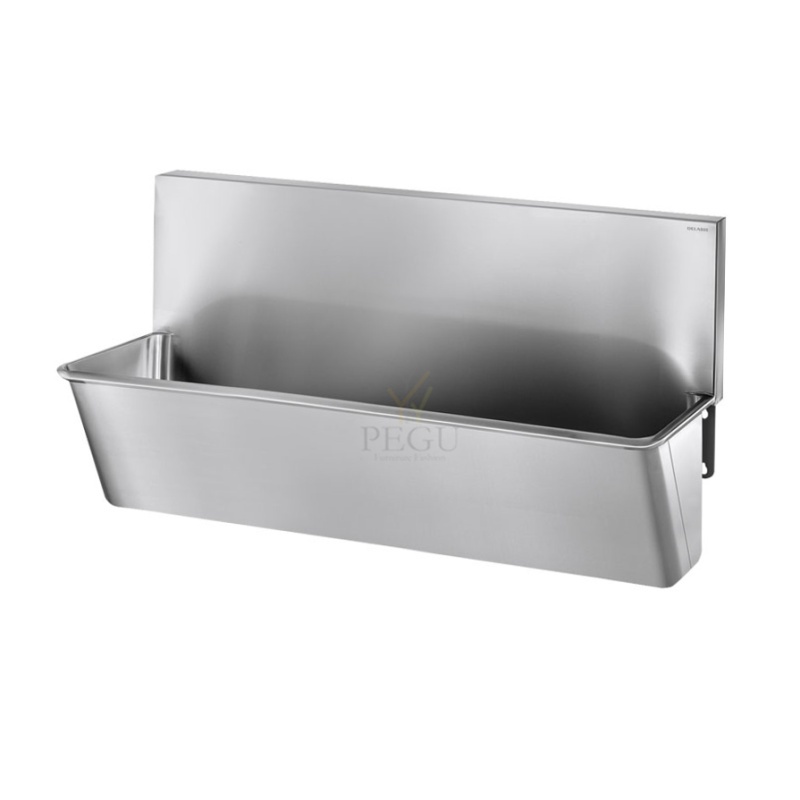

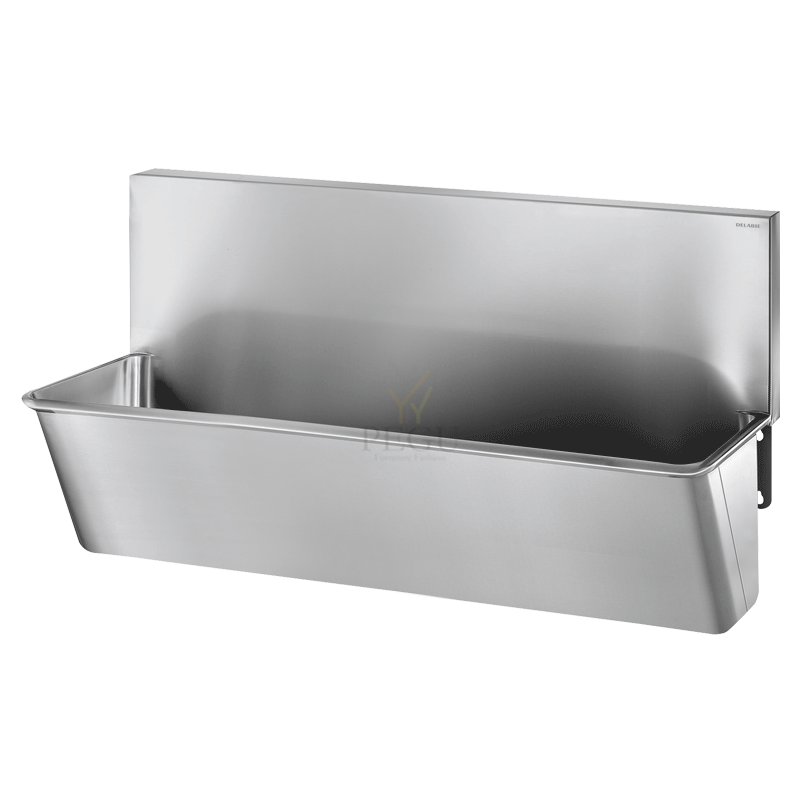

Surgical scrub-up trough with high splashback

Ref. 182000

Wall-mounted surgical scrub-up trough with splashback 360mm.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 1,400mm, 2 services. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right.
Without overflow.
Supplied with fixing elements.
Weight: 24.2kg.


Kahekohaline kirurgi valamu kõrgema tagaseinaga.

Materjal: AISI 304

Pikkus : 1400mm

Valamu sügavus: 350mm

Laius: 520 mm



Variandid:

Tagaseinas  ava sensorjuhtimisega segistile

Tagaseinas  2 ava kangsegistile

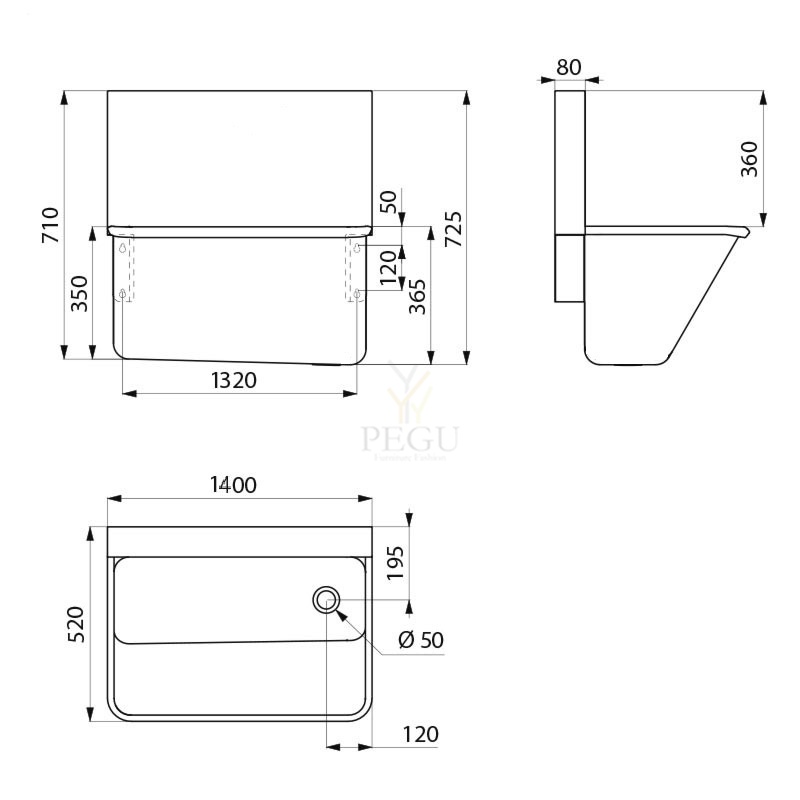

TECHNICAL CHARACTERISTICS

Surgical scrub-up trough with high splashback

Ref. 182000
Height 725mm
Length 520mm
Width 1400mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
429,93 €

Wall-mounted TRAPEZ washbasin
Ref. 121270

Wall-mounted washbasin, 600x505mm.
Shallow washbasin suitable for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Supplied with 1 ¼" waste.
Without overflow.
With central tap hole Ø 35mm.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Tootekood: DE-121270 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
650,49 €

Wall-mounted BOB washbasin
Ref. 121130

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼" waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Tootekood: DE-121130 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
706,39 €

COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330

Wall-mounted washbasin, cross wall installation for service ducts.
Interior basin dimensions: 290 x 290 x 350mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 2mm.
Rounded edges prevent injury.
Suitable for prisons, police stations, etc.
Vandal-resistant: water inlet and outlet cannot be accessed by user.
Supplied without water controls. We recommend electronic control: ref. 447100.
Weight: 12.5kg.



TECHNICAL FEATURES

COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330

Depth 350mm
Length 290mm
Width 290mm
Thickness 2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-160330 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
984,89 €

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Combination unit: washbasin and suspended WC pan on right sidewith recessed toilet roll holder.
Wall-mounted with cross wall installation via a service duct.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlets: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130003]



TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Tootekood: DE-166300 ,   Tarneaeg: 4-6 nädalad ,   Viimistlus:
4240,39 €
