Tootegrupid
Delabie segisti 4900012.jpg Zoom

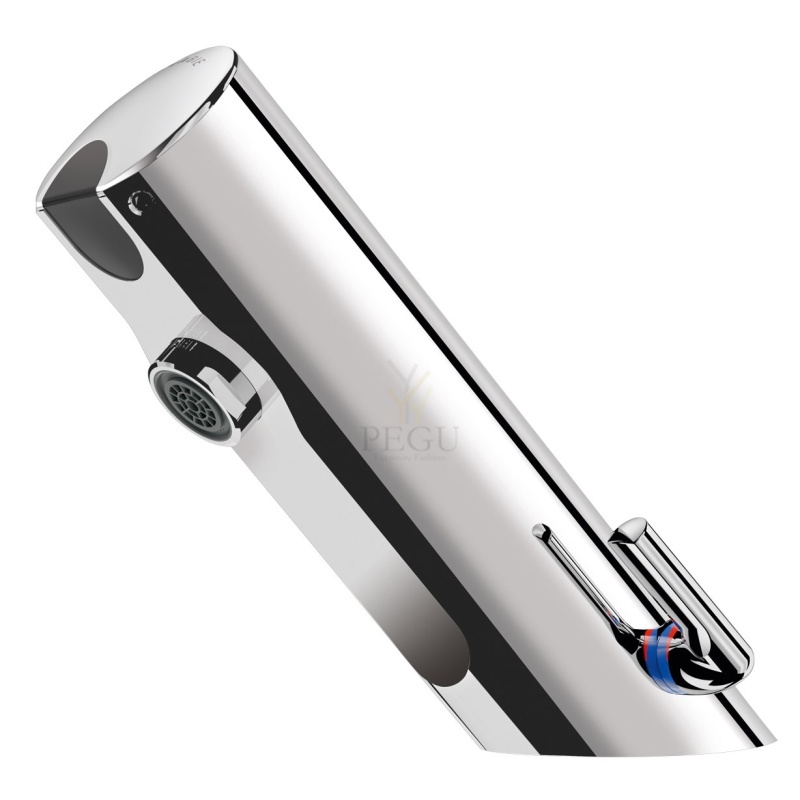

Delabie kontaktivaba elektronik segisti TEMPOMATIC MIX 4 230/6V

Tootekood: DE-490001
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 635,00 €
571,50 €
Kuumakse alates: 48,58 €
Kogus: - +
   - või -

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001

Deck-mounted electronic basin mixer:
230/6V plug-in mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after the last use).
Active infrared presence detection sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control lever with adjustable maximum temperature limiter.

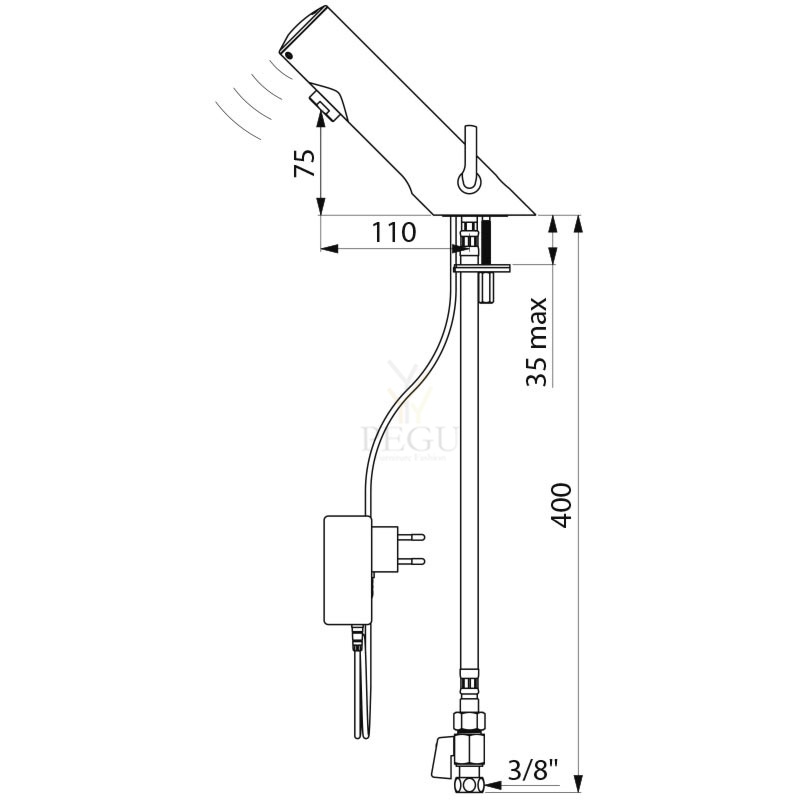

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001
Supply 230/6V plug-in mains supply
Connector F3/8"
Technology Electronic
Drop height 75mm
Spout length 110mm
Flow rate 3 lpm

Video



Sarnased tooted

Vajutava nupuga segisti

Presto

Antiblokeerimise süsteemiga

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Tootekood: P68132 ,   Tarneaeg: 7 päeva
395,20 € (5%)
416,00 €

Dušpaneel PRESTO DL400SE eelsegatud veele, 30 sek 3bar, alumiinium stop kraaniga sirge 1/2"

Душевая панель PRESTO DL400SE на смешанную/холодную воду, 30 sek 3bar, алюминий стоп кран 1/2"

Vajutava nupuga duššipaneel

DL400SE

eelsegatud vesi

Presto

30 sek. töötsükkel 3 bar

Range: Timed flow single tap for shower

Ref: 27400 - PRESTO DL 400 SE® single tap with straight stop valve





> Working pressure :

1 to 5 bar

> Flow :

8 l/min at 3 bar with integrated flow limiter (+ additional 6l/mn limiter) Anti-water-hammering design
Fixed shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21) Top water inlet with straight stop valve For cold or premixed water

> Material and colour finish :

Injected molded metal body and cover
Extruded cover in aluminium (magnesium-silicon alloy 6060)

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

VBA screws and nylon plugs Additional 6l/mn limiter
M G 1/2" - FG3/4" stop valve and filter Instruction manual

> Standards & approvals :

Acoustic class I
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P27400 ,   Tarneaeg: 7-14 päeva
327,75 € (5%)
345,00 €

Sensoriga kraan Sanela R/V teras, külma/ellsegatud veele

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Tootekood: SA-SLU 45, 24V DC ,   Tarneaeg: 14 päeva
575,00 €

Töötsükkel 15 sek

Tootekood: P68400 ,   Tarneaeg: 14 päeva
306,85 € (5%)
323,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Available in all RAL colours.

• Comes in trendy matt black and classic white as standard.

• Also available coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3052 / EAN no. 5-709818-030524
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3052 00 ,   Tarneaeg: 14-21 päeva
625,00 €

Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
