Delabie köögisegisti Professionaalne köök 5633UK
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
SUVI261 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

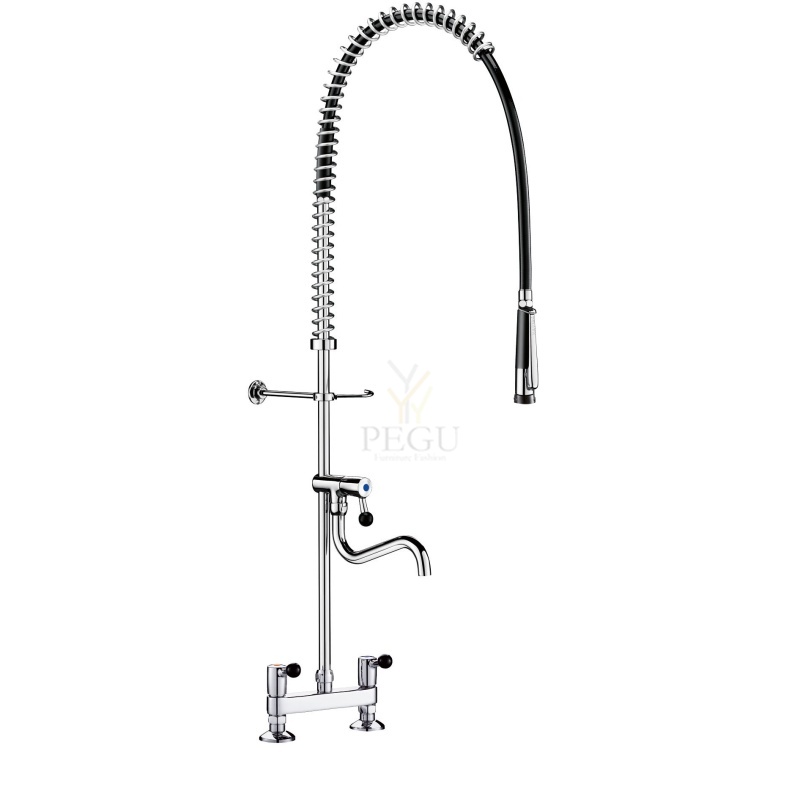

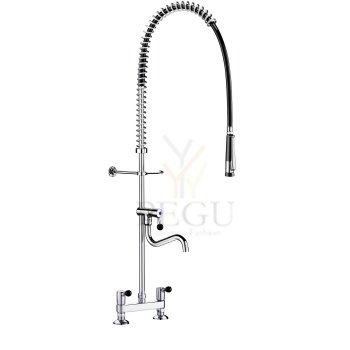

Twin hole pre-rinse set with mixer
Ref. 5633UK
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

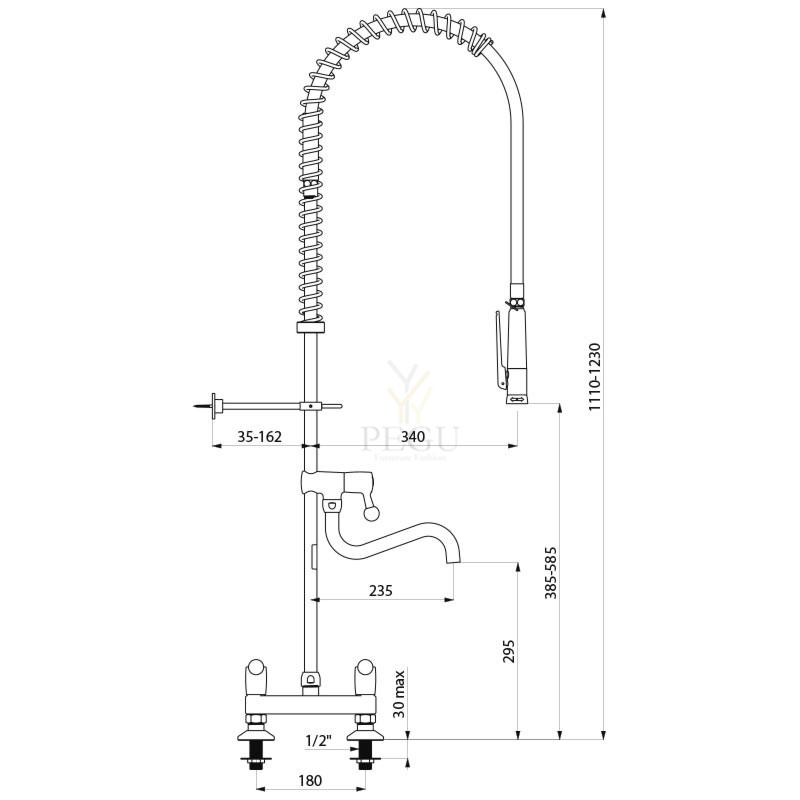

TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5633UK
| Connector | M1/2" |
|---|---|
| Height | 1110-1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 25 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Failid
55,00 €
DESCRIPTION
Auto-rewind 304 stainless steel hose reel - Ref. 5675T2
FOR CLEANING FLOORS AND WORK SURFACES
Auto-rewind hose reel with flexible hose L. 15m and guide rollers: Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray. 304 Stainless steel base and drum Ø 390mm.
Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.
TECHNICAL FEATURES
Auto-rewind 304 stainless steel hose reel
Ref. 5675T2
| Connector | 3/4" |
|---|---|
| Height | 400mm |
| Depth | 410mm |
| Length | 186mm |
| Flow rate | 14 lpm |
| Finish | 304 Stainless steel |
Deck-mounted single hole mixer - 45 lpm
Ref. 5640T2
Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 195mm L. 200mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixing via two stainless steel rods.
F3/8" PEX flexibles.
Twin hole pre-rinse set with mixer
Ref. G6532
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Telescopic, swivelling spout L. 200-290mm with 25 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. G6532
| Connector | F3/8" |
|---|---|
| Height | 1125 - 1245mm |
| Drop height | 360 - 600mm |
| Flow rate | 25 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Ref: 70806 - Wall-mounted mixer tap with 2 holes – downward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Product design
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout, projection 300 mm, height under "body" 182 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
Eccentric fittings M 1/2 '' M 3/4 '' supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
