Tootegrupid

Delabie põranda sisene WC sifooniga SHA 700 squart antivandaalne R/V teras AISI304

Tootekood: DE-113620
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
691,00 €
Kogus: - +
   - või -

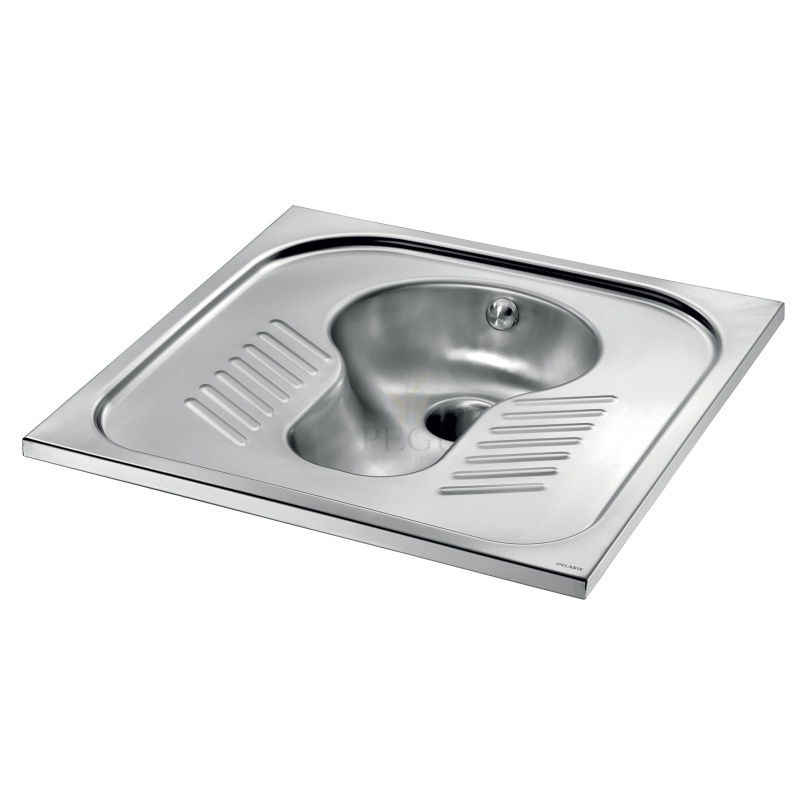

SHA 700 squat WC pan
Ref. 113620

Floor-recessed squat WC pan, 700 x 345 x 700mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness 1.2mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
Bowl shape suitable for male and female use.
Non-slip foot area.
Vertical waste outlet: Ø 100mm.
Flushing system with one 304 stainless steel spreader.
Supplied with stainless steel trap welded to squat WC pan.
Weight: 8kg.
10-year warranty.

[Formerly ref: 0113630020]

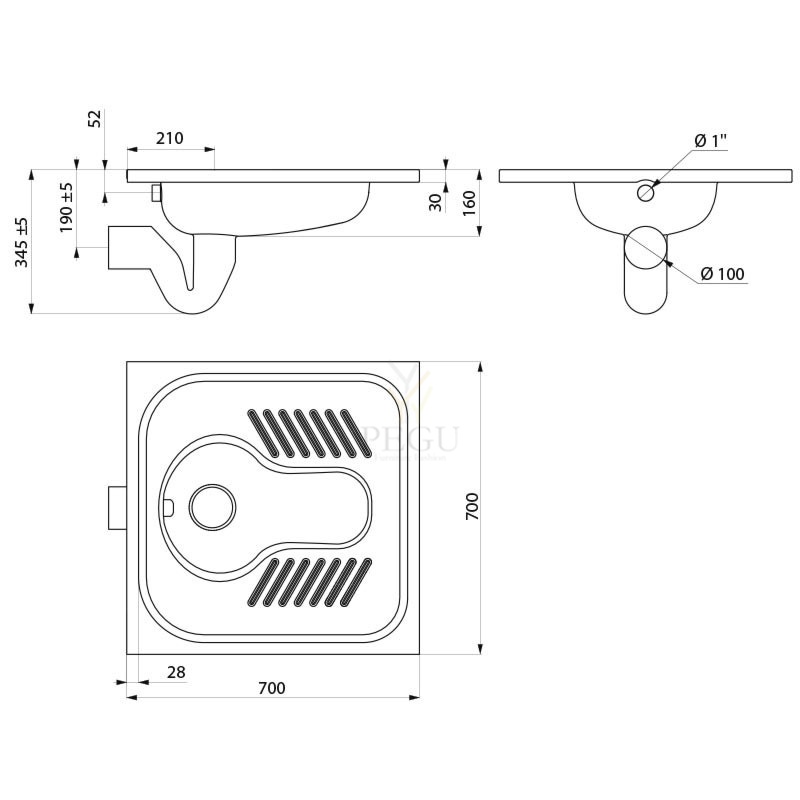

TECHNICAL FEATURES

SHA 700 squat WC pan
Ref. 113620

Height 30mm
Depth 345mm
Length 700mm
Width 700mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
342,00 €

PMR XS TC wall-mounted washbasin
Ref. 160250

Wall-mounted washbasin, cross wall installation for service ducts.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths available on request.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standardEN 14688.
Weight: 4.5kg.



TECHNICAL FEATURES

PMR XS TC wall-mounted washbasin
Ref. 160250

Height 130mm
Length 390mm
Width 400mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Tootekood: DE-160250 ,   Tarneaeg: 14-21 päeva
503,00 €

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Combination unit: washbasin and suspended WC pan on right sidewith recessed toilet roll holder.
Wall-mounted with cross wall installation via a service duct.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlets: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130003]



TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Tootekood: DE-166300 ,   Tarneaeg: 4-6 nädalad
3033,00 €

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030008]



TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Tootekood: DE-160800 ,   Tarneaeg: 4-6 nädalad
3033,00 €

Delabie 512111P antivandaalne elektrooniline vedel- või vahtseebi dosaator,  harj. rst

Electronic liquid or foam soap dispenser

Seinale paigaldatav elektrooniline seebi dosaator.
Vedel- või vahtseebi dosaator.
Vandaalikindel mudel ristseinale (TC) kuni 110mm.
Käsitsi kontakti pole: infrapunarakk tuvastab käed automaatselt.
Kroomitud 304 roostevabast terasest tila.
Iseseisev elektrooniline seade paigaldamiseks valamu alla või teeninduskanalisse.
Automaatne seebi dosaator: vooluvõrk 230/6V trafoga.
Taimepõhise vedelseebi jaoks maksimaalse viskoossusega 3000 mPa.s või spetsiaalsele vahtseebile.
Tila kogupikkus: 115 mm.
Tarnitakse 1,20 m painduva toruga kaugpaakide jaoks.

Настенный электронный дозатор для мыла.
Дозатор для жидкого или пенного мыла.
Антивандальная модель для поперечной стены (TC) до 110 мм.
Нет ручного контакта: инфракрасная ячейка автоматически обнаруживает руки.
Носик из хромированной нержавеющей стали 304.
Независимый электронный блок для установки под умывальником или в канале обслуживания.
Автоматический дозатор мыла: питание от сети с трансформатором 230/6В.
Для жидкого мыла на растительной основе с максимальной вязкостью 3000 мПа·с или специального пенного мыла.
Общая длина носика: 115 мм.
Поставляется с гибкой трубкой длиной 1,20 м для удаленных резервуаров.





Ref. 512111P

Wall-mounted electronic soap dispenser.
Liquid or foam soap dispenser.
Vandal-resistant model for cross wall (TC) up to 110mm.
No manual contact: infrared cell detects hands automatically.
Chrome-plated 304 stainless steel spout.
No waste pump dispenser.
Independent electronic unit for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with 1.20m flexible tube for remote tanks.


TECHNICAL CHARACTERISTICS

Electronic liquid or foam soap dispenser

Ref. 512111P
Supply Mains supply 230/6V
Connector 1/2"
Technology Infrared detection
Height 115mm (electronic unit)
Length 115mm
Spout length 98mm
Finish Chrome-plated 304 stainless steel
Tootekood: DE-512111P ,   Tarneaeg: 14-21 päeva
450,00 €
