Delabie turvavaline WC seinale S21 P TC R/V teras
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

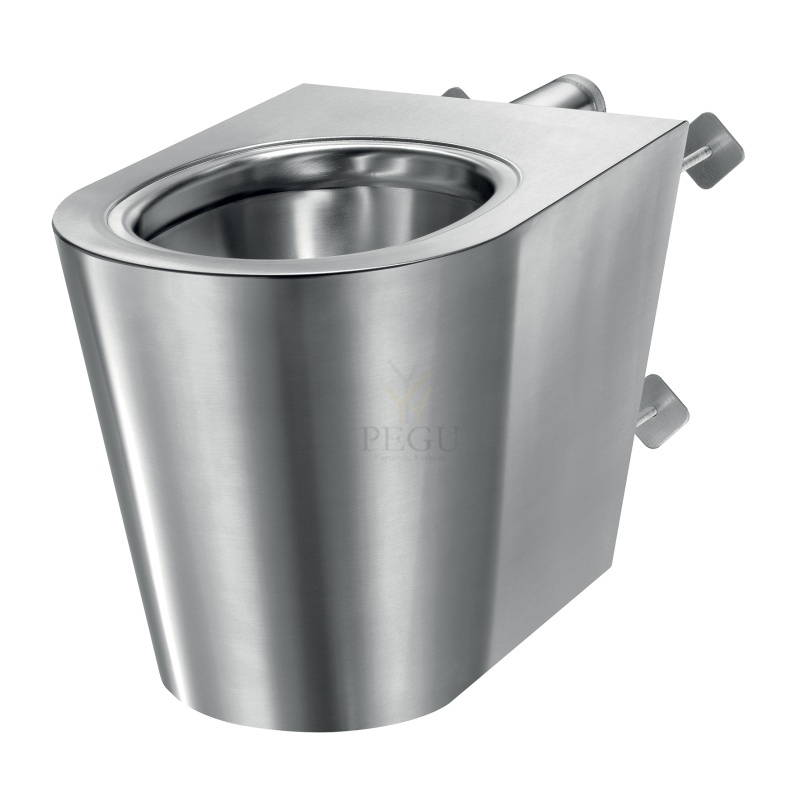

S21 P TC floor-standing WC pan
Ref. 160550
Floor-standing WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece, pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths available on request).
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 13.5kg.
[Formerly ref: 0116550001]

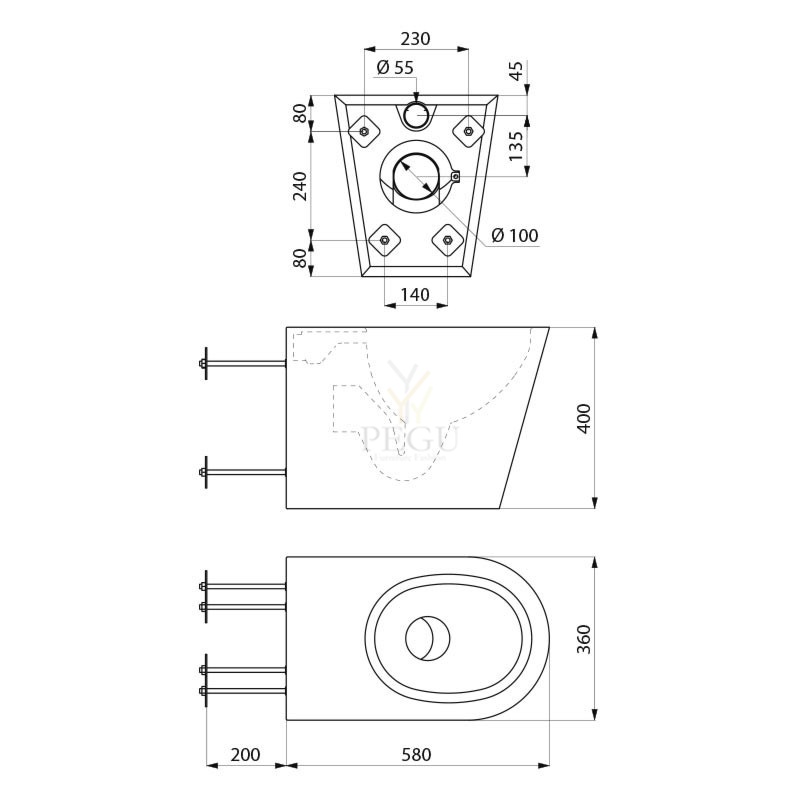

TECHNICAL FEATURES
S21 P TC floor-standing WC pan
Ref. 160550
| Height | 400mm |
|---|---|
| Length | 580mm |
| Width | 360mm |
| Thickness | 1.5mm |
| Finish | 304 polished satin stainless steel |
Failid
DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200
Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.
Soft-touch operation. Time flow ~7 sec.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M3/4".
Connection washer Ø 32/55mm.
For walls ≤ 200mm, without tube.
| Connector | 3/4" |
|---|---|
| Length | 200mm |
Stainless steel rectangular mirror, H. 500mm
Ref. 3452
| Depth | 10mm |
|---|---|
| Length | Unbreakable mirror |
| Width | 385mm |
| Drop height | 485mm |
| Finish | "Mirror" polished 304 stainless steel |
COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330
Wall-mounted washbasin, cross wall installation for service ducts.
Interior basin dimensions: 290 x 290 x 350mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 2mm.
Rounded edges prevent injury.
Suitable for prisons, police stations, etc.
Vandal-resistant: water inlet and outlet cannot be accessed by user.
Supplied without water controls. We recommend electronic control: ref. 447100.
Weight: 12.5kg.
TECHNICAL FEATURES
COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330
| Depth | 350mm |
|---|---|
| Length | 290mm |
| Width | 290mm |
| Thickness | 2mm |
| Finish | Polished satin 304 stainless steel |
TEK washbasin
Ref. 161340
Wall-mounted washbasin.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Supplied with 1 time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 seconds time flow.
Recessed horizontal waste outlet Ø 32mm.
Flat perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with trap.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.6kg.
TECHNICAL FEATURES
TEK washbasin
Ref. 161340
| Height | 385mm |
|---|---|
| Length | 395 mm |
| Width | 400mm |
| Thickness | 1.2mm |
| Finish | Polished satin 304 stainless steel |
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130007]
TECHNICAL FEATURES
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
| Height | 1000mm |
|---|---|
| Length | 615mm |
| Width | 725mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
