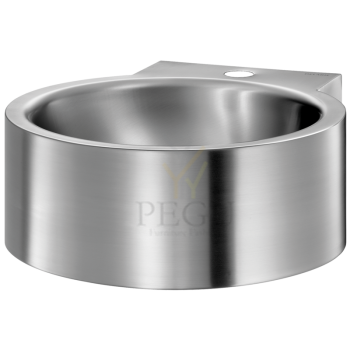

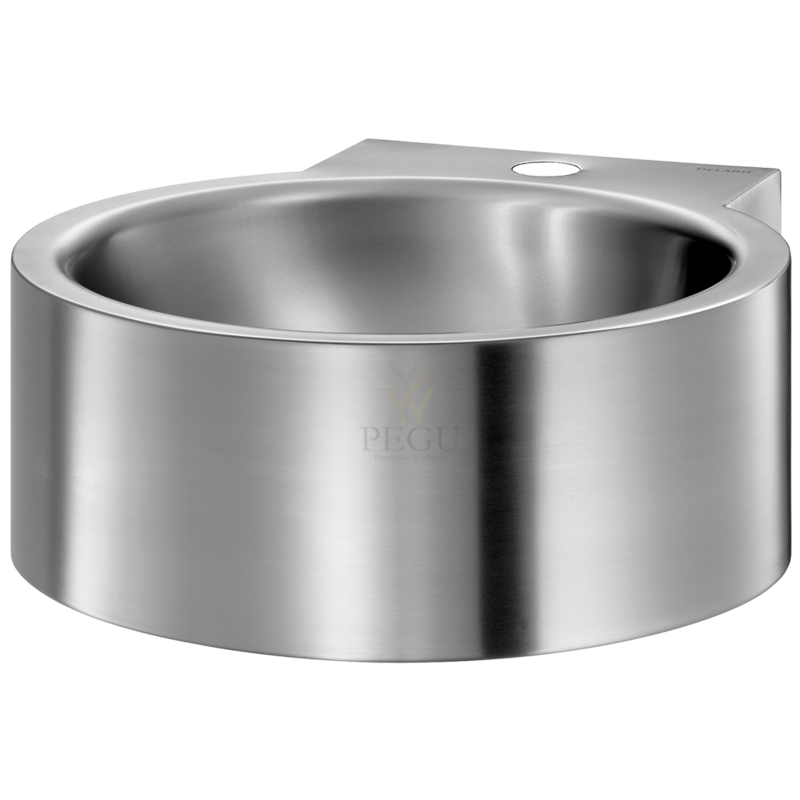

Delabie valamu REDO 121710, R/V teras AISI304

Tootekood: DE-121710
Kaubamärk:
Ühik: tk
Tarneaeg: 14 päeva
Hind:
525,00 €
Kuumakse alates: 44,63 €
Kogus: - +
   - või -

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

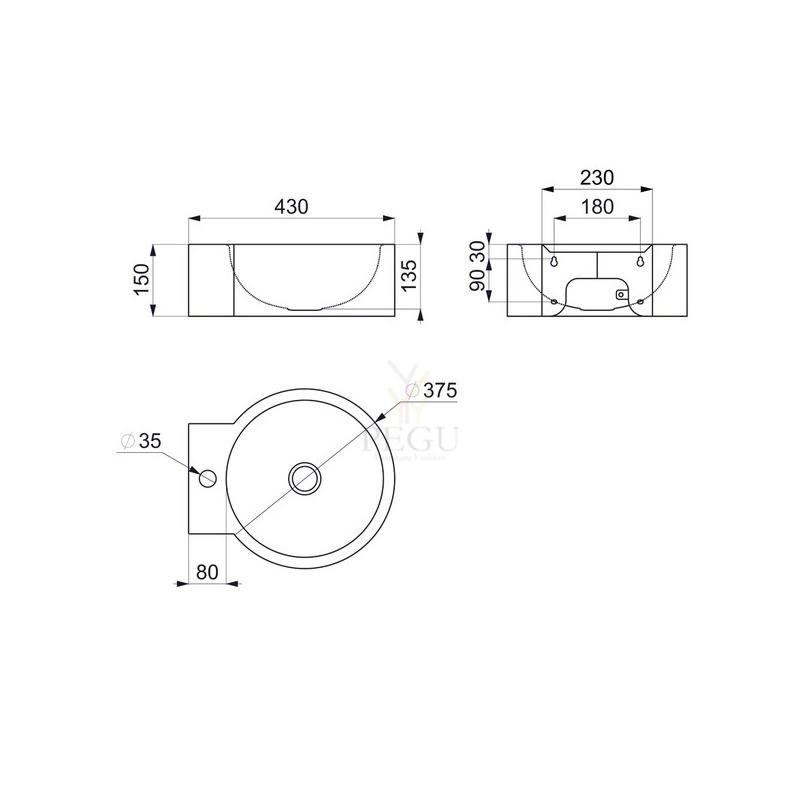

TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height 150mm
Length 375mm
Width 430mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Sarnased tooted

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3050 / EAN no. 5-709818-030500
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. White-painted steel housing (RAL 9003, gloss 60). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3050 00 ,   Tarneaeg: 14-21 päeva
494,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Available in all RAL colours.

• Comes in trendy matt black and classic white as standard.

• Also available coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3052 / EAN no. 5-709818-030524
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3052 90 ,   Tarneaeg: 14-21 päeva
625,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Available in all RAL colours.

• Comes in trendy matt black and classic white as standard.

• Also available coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3052 / EAN no. 5-709818-030524
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3052 00 ,   Tarneaeg: 14-21 päeva
625,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €

388-WATERTAP DECK MOUNTED


DAN DRYER WaterTap is with automatic sensor for touch-free operation is a hygienic solution for all private and commercial washrooms.

The water faucet is part of a complete product line, which also includes hand dryer and soap dispenser. The product line is available for either deck or wall mounting.

The water tap features a minimalist, modern design in stainless steel with satin finish. It is easy to operate and to clean.



PRODUCT DESCRIPTION

• Table top mounting.

• Activation distance adjustable between 20-120 mm.

• Water pressure: 10-15 PSI.

• Water flow less than 3,8 l/m.

• Stainless steel with satin finish.

• Infra-red sensor and elektronic timer.

• 2-year warranty.



SPECIFICATIONS
Product number: 388 / EAN no. 5-709818-003887
Technical data:

Touch-free water tap in stainless steel with satin finish for table top mounting. Infra-red sensor and electronic timer, water pressure 10-100 PSI, waterflow less than 3,8 l/min.

Dimensions H: 170 mm, W: 50 mm, D: 220 mm
Net Weight: 2.1 kg
Colour: Stainless steel with satin finish

Tootekood: DAN388 ,   Tarneaeg: 14-21 päeva
1037,00 €
