Delabie valamu UNITO 400x400 roostevaba teras satiin

Tootekood: DE-120810
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
642,00 €
Kuumakse alates: 54,51 €
Kogus: - +
   - või -

DESCRIPTION

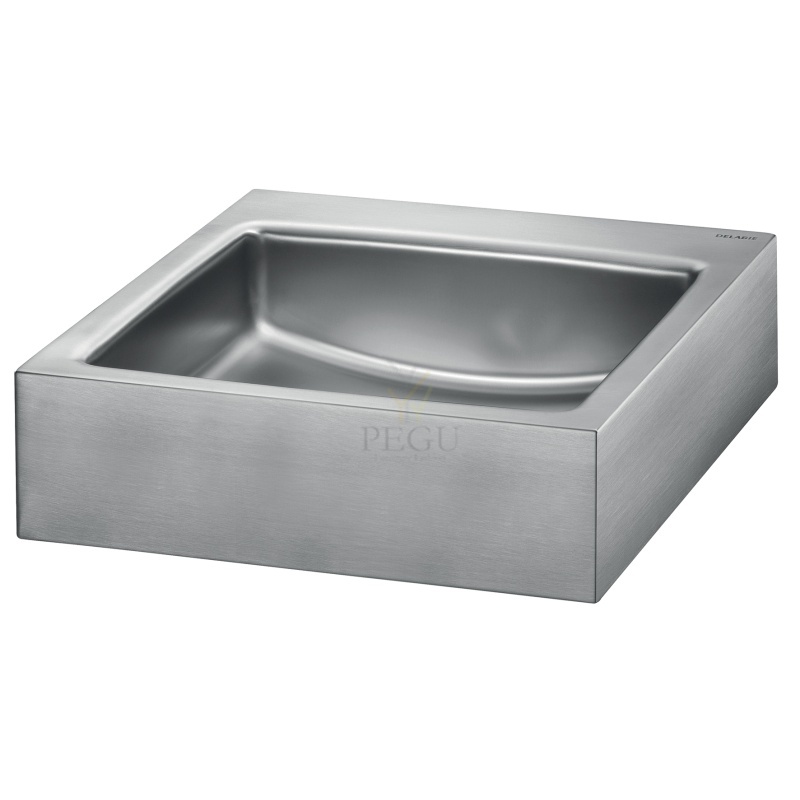

UNITO countertop washbasin
Ref. 120810

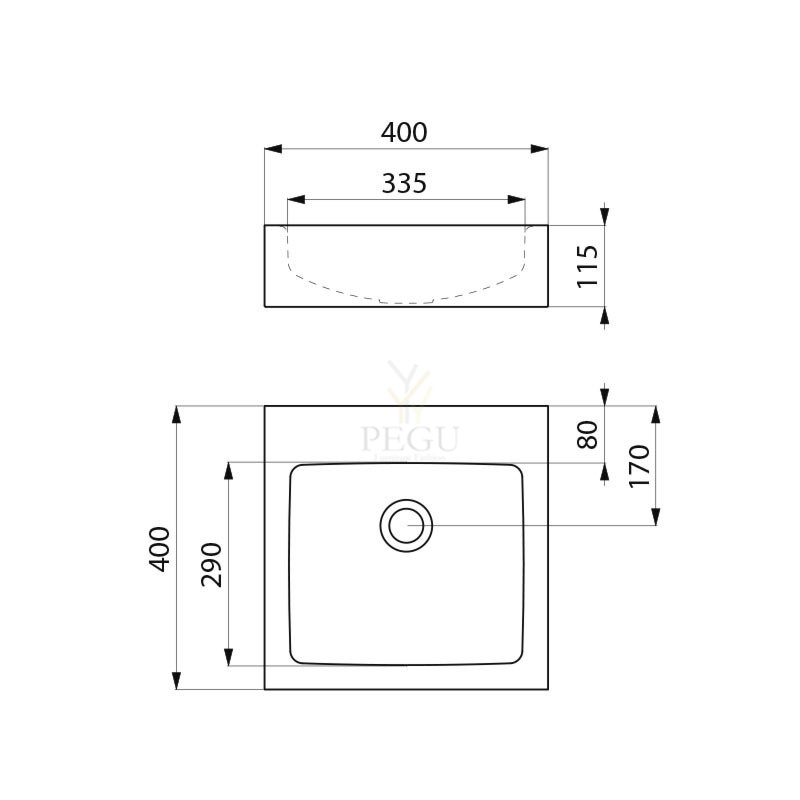

Countertop washbasin, 400x400mm.
Suitable for use with wall-mounted or extended mixer/tap.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Failid

Sarnased tooted

Kollektiivne pissuaari renn 2400 mm roostevabast terasest

Tootekood: PURM-2400 ,   Tarneaeg: 5-6 nädalad
2569,00 €
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

RMO 02



automatic washing system for wellingtons

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • three rotary brushes
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button
Radius of sensor 0,7 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 95 kg
  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz



Tootekood: AZP-RMO 02 ,   Tarneaeg: 3-5 nädalat
16293,00 €

Intra ICON valamu IC1 harjatud, alt paigaldamiseks

General

Size (mm): 525 x 334 x 97
Large bowl (mm): 500 x 310 x 83
Designer: Halvor Thorsen





Description

Icon hand wash basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste. Without overflow.

Brushed finish.

Tootekood: I-IC1 32N ,   Tarneaeg: 14-21 päeva
439,00 €

Joogifontään AFO04 seinale mehaaniline R/V teras AISI316(basseinile)

AFO 04

suspension drinking fountain

AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.

Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.

The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.

The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.

Package contents

  • stainless steel casing
  • press valve
  • corner valve with filter
  • fixing bar
  • siphon
  • connecting hose
  • anchoring material
Water inlet G 1/2"
Water pressure 2 - 6 Bar (recommended 3 Bar)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg
  • Set-up water inlet - pipe G1/2“.
  • Set-up drainage d = 40 mm.




Tootekood: AZP-AFO04.CL ,   Tarneaeg: 3-4 nädalad
1226,00 €
