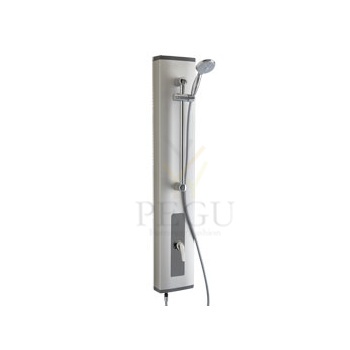

Dušipaneel kangsegistiga, ja liftiga PRESTOTEM2 SINGLE CONTROL

Tootekood: P88818
Kaubamärk:

Ühik: tk
Tarneaeg: 14-21 päeva

Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!

Lugupeetud PEGU.EE veebipoes külastajad!

Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!

PEGU.EE meeskond

kuumaks al. 100,31 €

Hind:

1165,10 €

Kuumakse alates: 100,31 €

> Working pressure :

1 to 5 bar

> Flow :

10 l/min with integrated flow limiter
Hand-held shower on rail with chrome plated slide

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On single control mixer tap with ceramic disks

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Video

Failid

Sarnased tooted

Laost otsas

Dušikomplekt ALPA isesulguv, 30 sek 3bar, kroom

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar

Tootekood: P35816 , Tarneaeg: 14-21 päev

640,50 €

Laost otsas

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele, ilma el.adaptorita

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 , Tarneaeg: 3-4 nädalad

375,00 €

Laost otsas

AZP Brno adapter 1-3 punkte

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Tootekood: AZP-ZAC 1-20 , Tarneaeg: 3-4 nädalad

105,00 €

Laost otsas

Dušipaneel Delabie SECURITHERM termostaadiga isesulguv 30 sek ALU

SECURITHERM shower panel
Ref. 792300

Thermostatic time flow shower panel :
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Tootekood: DE-792300 , Tarneaeg: 14-21 päeva

921,10 €

Laost otsas

Dušipaneel Delabie TEMPOMIX isesulguv 30 sek R/V teras

TEMPOMIX shower panel
Ref. 790204

Time flow shower panel with fixed shower head:
Large model stainless steel panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks M1/2".
TEMPOMIX mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
M1/2" connections.
Concealed fixings.
Filters and non-return valves.

Tootekood: DE-790204 , Tarneaeg: 14-21 päeva

1220,00 €
