Esileht » Horisontaalne trapp VIESER 50 mm 3315971
Horisontaalne trapp VIESER 50 mm 3315971 Zoom

Horisontaalne trapp VIESER 50 mm 3315971

Tootekood: AKV52614
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva

‼️ Kasuta promokoodi KEVAD2026 ostukorvis ja saa soodustust – ainult täna!

▼ Loe edasi: ...

✅ Populaarsed tooted Tallinna laos kohe olemas — tarneaeg 1–3 päeva või tule ise järele.

✅ Kui toode on tellimisel, uuri lähemalt — saame tihti pakkuda oodatust kiiremat tarnet: info@pegu.ee

✅ Kõikidele toodetele garantii 2 aastat ja 14‑päevane tagastusõigus.

✅ Automaatne arve e‑postile. E‑arve soovijatel palume lisada märge kommentaaridesse.

ℹ️ Hind sisaldab käibemaksu.

Hind:
19,00 €
Kogus: - +

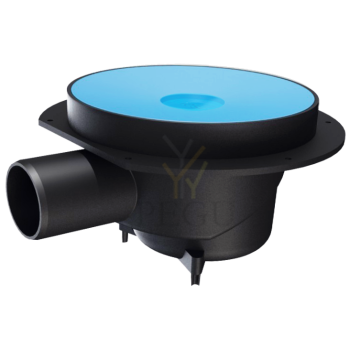

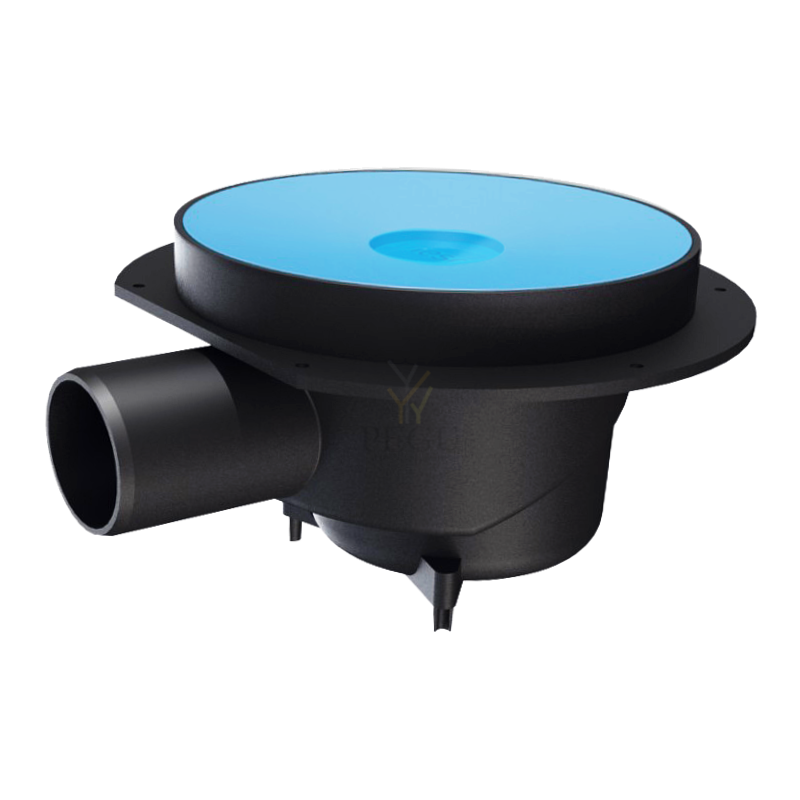

Horisontaalne trapp VIESER 50 mm 3315971

Vieser low model floor drain DN 50

HVAC No. 3315971


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.



Technical specifications

Vieser No.
52614
HVAC No.
3315971
EAN
6418685526144
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Failid

Sarnased tooted
Roostavaba teras veetrapp, D75 mm vertikaalne, 150x150mm AZP Brno PV 01.D.75.P
Roostavaba teras veetrapp, D75 mm vertikaalne, 150x150mm AZP Brno PV 01.D.75.P

Roostavaba teras veetrapp, D75 mm vertikaalne, 150x150mm AZP Brno PV 01.D.75.P


R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!


Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädala ,   Viimistlus:
429,93 €
VIESER ONE trap 52611 75 3X32/40 külg väljajooks 3315957
VIESER ONE trap 52611 75 3X32/40 külg väljajooks 3315957

VIESER ONE trap 52611 75 3X32/40 külg väljajooks 3315957

VIESER ONE trap 52611 75 3X32/40 külg väljajooks

Vieser One floor drain DN75 3×32/40 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
52611
HVAC No.
7110408
Package (box/pallet)
17/136
Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,6l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52611 ,   Tarneaeg: 7-14 päeva
38,00 €
VIESER ONE 52612 trap 50 3X32/40 külg väljajooks 3315958
VIESER ONE 52612 trap 50 3X32/40 külg väljajooks 3315958

VIESER ONE 52612 trap 50 3X32/40 külg väljajooks 3315958

VIESER ONE 52612 trap 50 3X32/40 külg väljajooks

Vieser One floor drain DN50 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52612

Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52612 ,   Tarneaeg: 7-14 päeva
37,00 €
Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega 3317308
Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega 3317308

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega 3317308

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega



Vieser One horizontal drain DN50 1x32 extra low with support legs

HVAC No. 3317308


The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.

The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.



Technical specifications

Vieser No.
6004513
HVAC No.
3317308
EAN
6430066742332
Package (box/pallet)
10/80
Package dimensions
35 x 25 x 10 cm
Package weight
0,8 kg
Material
Polypropylene (PP)
Usage
Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.
Flow
1,2 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.








Tootekood: AKV6004513 ,   Tarneaeg: 3-7 päeva
55,00 €
Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST 3317312
Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST 3317312

Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST 3317312

Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST

Roostavaba teras

Vieser Link with plastic frame197 x 197

HVAC No. 3317312


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Link square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005478
HVAC No.
3317312
EAN
6430066742820
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg


Tootekood: AKV6005478 ,   Tarneaeg: 3-7 päeva
64,00 €
