Idral Pedaal segisti, põvanda

Tootekood: IDR-02066
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 289,00 €
260,10 €
Kuumakse alates: 22,19 €
Kogus: - +
   - või -

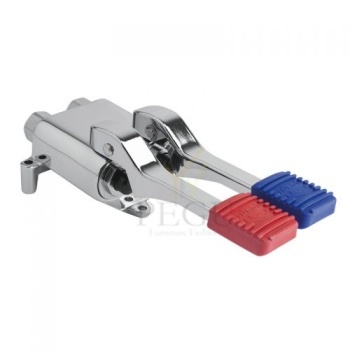

Idral Pedaal segisti, põvanda

Floor mounted double pedal mixer

Technical features



2 independent controls for hot and cold water

Cast brass body

Anti-limescale and self-lubricant material valve

Progressive stop without water hammer

Fastenings included

Failid

Sarnased tooted

Vajutava nupuga segisti

Presto

Antiblokeerimise süsteemiga

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Tootekood: P68132 ,   Tarneaeg: 7 päeva
395,20 € (5%)
416,00 €

Dušisesisti isesulguv 30sek 1/2"

Segisti, isesulguv

kroom

30sek töötsükkel



Tootekood: IDR-08132-30 ,   Tarneaeg: 7-21 päeva
301,50 € (10%)
335,00 €

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).



TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
Tootekood: DE-790912 ,   Tarneaeg: 14 päeva
671,00 €

Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp,  R/V teras AISI304 230V/50Hz

AFO 01.SCL

drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall

AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.

The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.



Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Electronics and control piezo-buttons
  • Water supply and electromagnetic valves
  • Flow cooler
  • Flexible hose outflow
  • Fixing and connecting material
dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 0,2 – 0,6 MPa, recommended 0,3 MPa
power supply 230 V, 50 Hz
power input 830 W
weight 25 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"
  • Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
Tootekood: AZP-AFO01.SCL ,   Tarneaeg: 3-4 недели
5765,00 €

Floor mounted single pedal progressive mixer with locking device

Technical features



Opening of the water and progressive mixing by single movement

Automatic water flow stop in every position of the stroke

Cast brass body

Anti-limescale and self-lubricant material valve

Progressive stop without water hammer

Fastenings included

Tootekood: IDR-02075/01 ,   Tarneaeg: 14-21 päeva
418,50 € (10%)
465,00 €
